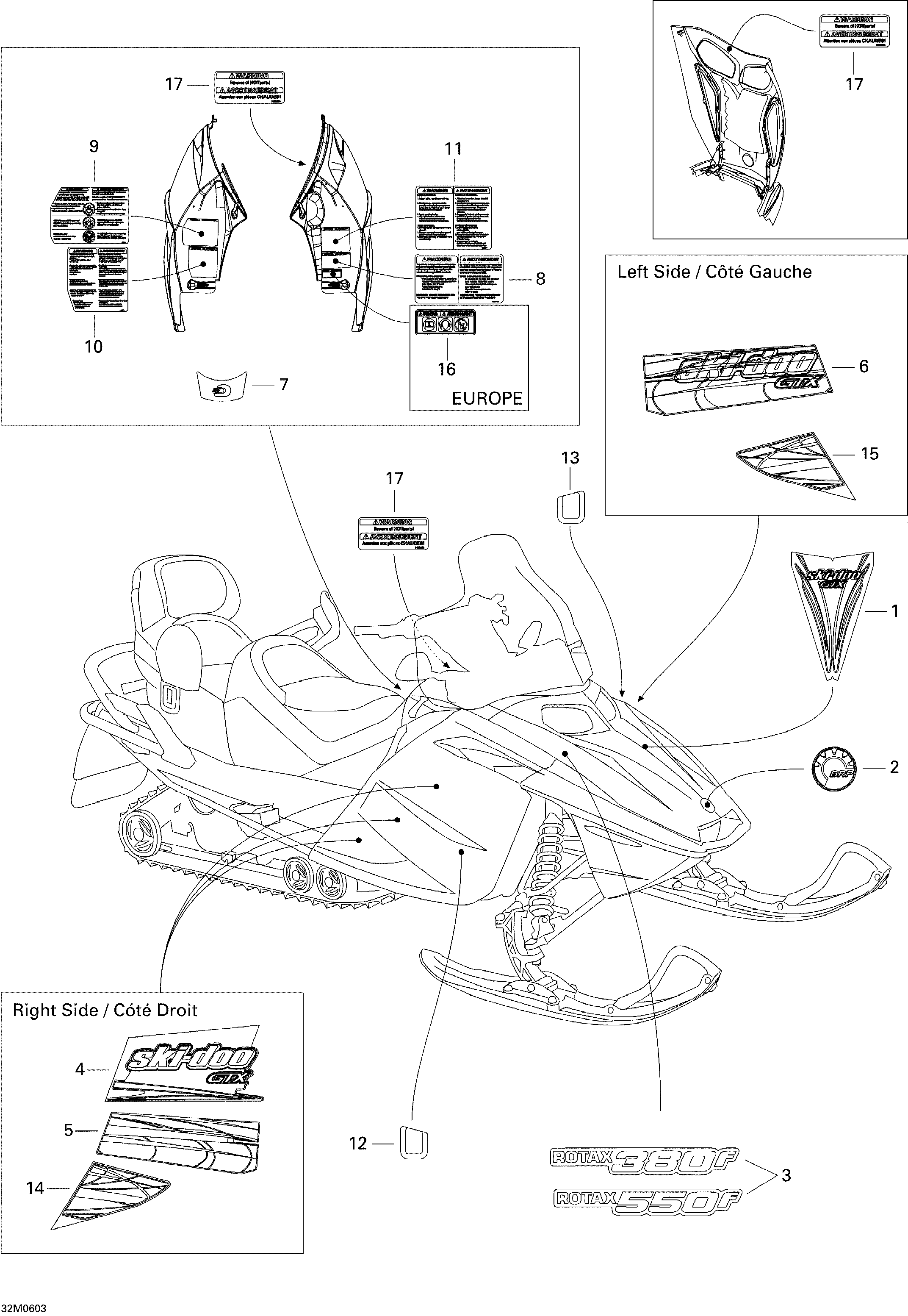

09- Decals 380F для BRP Ski-Doo GTX 380F - 2006
-
№АртикулНазвание
-
1516002913 Hood DecalHood Decal
-
2219902468 Logo BrpLogo Brp
-
3516002777 Hood Decal 380fHood Decal 380f
-
4516003030 RH Side DecalRH Side Decal
-
5516003008 Lower RH Side DecalLower RH Side Decal
-
6516002914 Lower LH Side DecalLower LH Side Decal
-
7516001775 Visor DecalVisor Decal
-
8516003026 Security Label, Passenger NumberSecurity Label, Passenger Number
-
9516002908 Security Label, GeneralSecurity Label, General
-
10516003029 Security Label, FamiliarizationSecurity Label, Familiarization
-
11516003024 Security Label, StartingSecurity Label, Starting
-
12516001910 RH Protector DecalRH Protector Decal
-
13516001911 LH Protector DecalLH Protector Decal
-
14516003032 Lower RH DecalLower RH Decal
-
15516003033 Lower LH DecalLower LH Decal
-
16516003027 Europe Decal. EuropeEurope Decal. Europe
-
17516002965 Security Label, Hot PartsSecurity Label, Hot Parts
