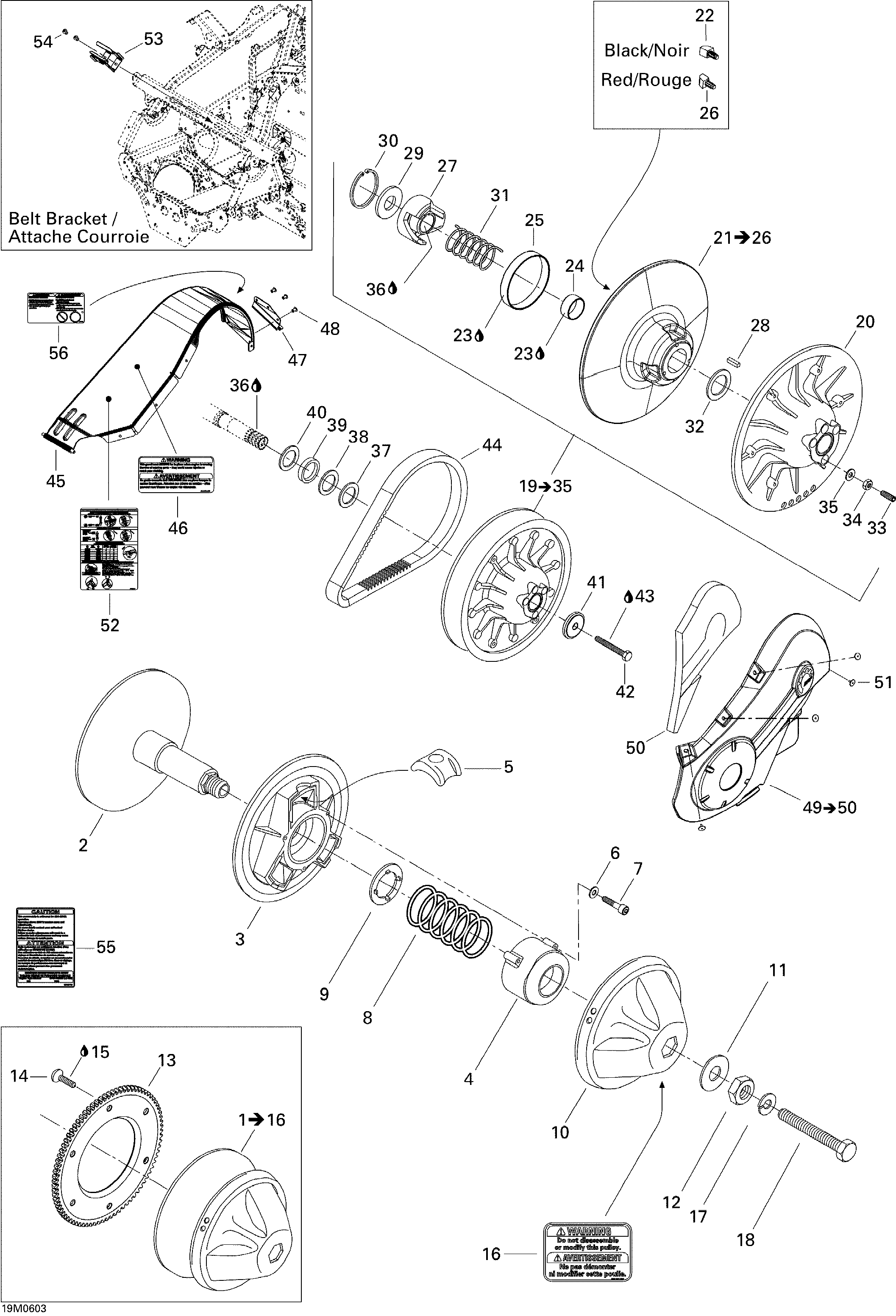

05- Pulley System для BRP Ski-Doo GTX 380F - 2006
-
№АртикулНазвание
-
2415128601 Inner FlangeInner Flange
-
3417126692 Sliding FlangeSliding Flange
-
4415128602 Spring CoverSpring Cover
-
5415128605 UnitUnit
-
6415128610 WasherWasher
-
7415128606 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
8415128934 Spring (blue / Pink)Spring (blue / Pink)
-
9417126694 Spring SeatSpring Seat
-
10415128609 CapCap
-
11415128610 WasherWasher
-
12417118300 NutNut
-
13417222832 Ring Gear (380F). 380FRing Gear (380F). 380F
-
13417222833 Ring Gear (550F). 550FRing Gear (550F). 550F
-
14236281684 Hex Screw M8 X 16Hex Screw M8 X 16
-
15293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
16516001726 Security LabelSecurity Label
-
17392002800 Lock Spring WasherLock Spring Washer
-
18417113800 BoltBolt
-
20417126663 Fixed FlangeFixed Flange
-
21417126550 Sliding Flange Ass'YSliding Flange Ass'Y
-
22417126538 Slider Shoe, FrontSlider Shoe, Front
-
23413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
24417126515 CushionCushion
-
25417126562 BushingBushing
-
26417126539 Slider Shoe, RearSlider Shoe, Rear
-
27417126715 Cam 44°Cam 44°
-
28414820800 KeyKey
-
29417126555 WasherWasher
-
30371903100 CirclipCirclip
-
31504152070 Release Spring (White) (Ho)Release Spring (White) (Ho)
-
32504141900 Thrust WasherThrust Washer
-
33206263044 Pressure Screw M6 X 30Pressure Screw M6 X 30
-
34232061414 Hex Nut M6Hex Nut M6
-
35420245370 WasherWasher
-
36293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
37417300252 SpacerSpacer
-
38417300265 SpacerSpacer
-
39504149100 SpacerSpacer
-
40504112000 ShimShim
-
41517302322 Strength WasherStrength Washer
-
42207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
43293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
44415060600 Drive BeltDrive Belt
-
45417300269 Belt GuardBelt Guard
-
46516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
47417300216 Belt Guard BracketBelt Guard Bracket
-
48390909200 Avex RivetAvex Rivet
-
49417300301 Side Protector Ass'ySide Protector Ass'y
-
50417300246 FoamFoam
-
51293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
52516001640 Decal, Suspension Adjustment DecalDecal, Suspension Adjustment Decal
-
53517281905 BracketBracket
-
54390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
55516002674 Emergency Starting LabelEmergency Starting Label
