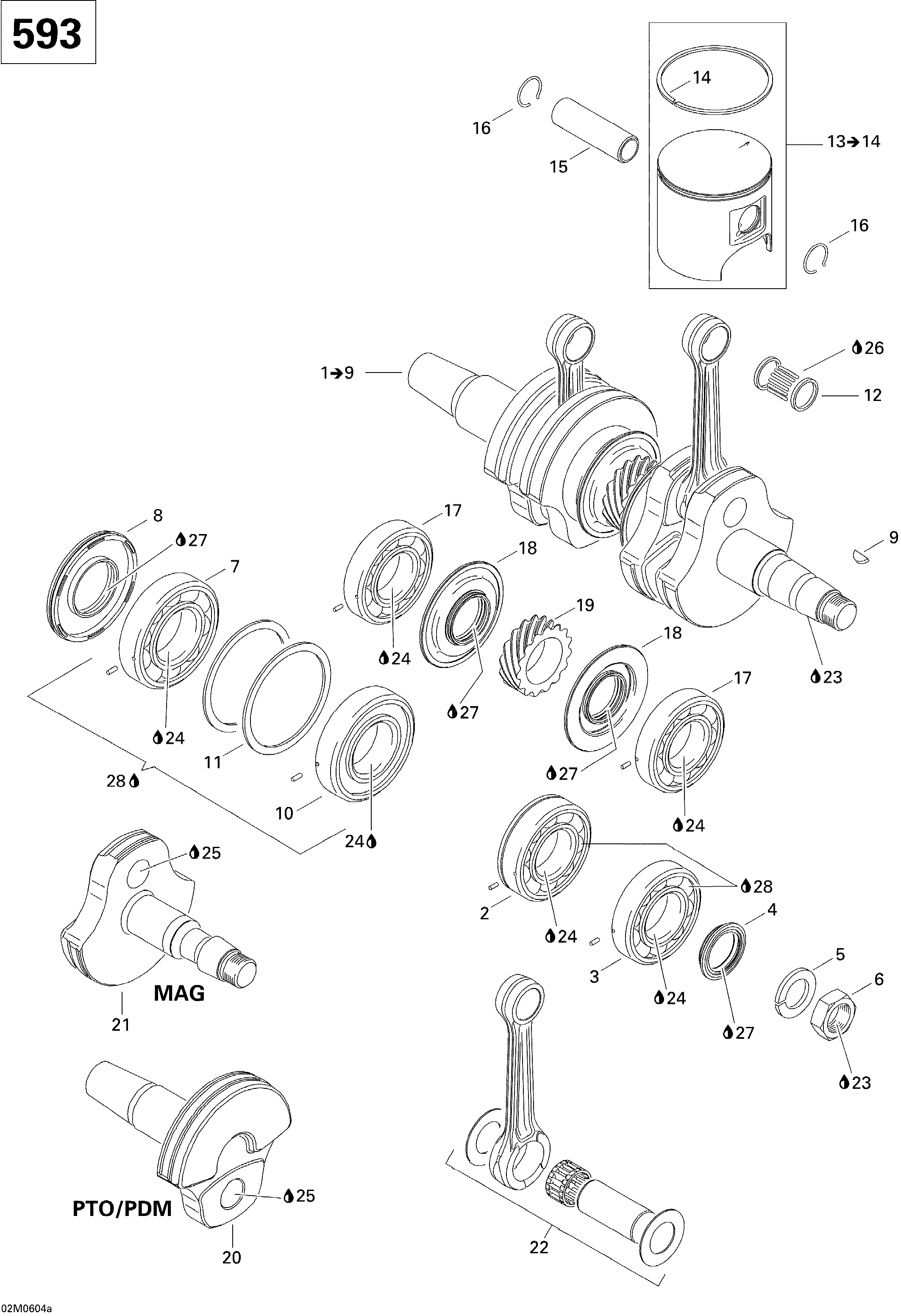

01- Crankshaft And Pistons 593 для BRP Ski-Doo GTX 500SS - 2006
-
№АртикулНазвание
-
1420888759 Crankshaft Ass'y. Includes 1 to 9Crankshaft Ass'y. Includes 1 to 9
-
2420832596 Ball BearingBall Bearing
-
3420832590 Ball Bearing 6206Ball Bearing 6206
-
4420931792 Oil SealOil Seal
-
5420945759 Lock Washer 22 mmLock Washer 22 mm
-
6420842234 Hex Nut M22Hex Nut M22
-
7420832575 Ball BearingBall Bearing
-
8420831952 Oil SealOil Seal
-
9420246015 Woodruff KeyWoodruff Key
-
10420832638 Ball BearingBall Bearing
-
11420927710 Retaining DiskRetaining Disk
-
12420832428 Needle BearingNeedle Bearing
-
13420889170 Piston Ass'y, 75.88 mm, Standard. Includes 13 to 14Piston Ass'y, 75.88 mm, Standard. Includes 13 to 14
-
13420889171 Piston Ass'y, 76.13 mm, Oversize. Includes 13 to 14Piston Ass'y, 76.13 mm, Oversize. Includes 13 to 14
-
14420815155 Semi-trapez Ring, 76 mmSemi-trapez Ring, 76 mm
-
14420815156 Semi-trapez Ring, 76.25 mmSemi-trapez Ring, 76.25 mm
-
15420916410 Gudgeon PinGudgeon Pin
-
16420845106 Piston CirclipPiston Circlip
-
17420832590 Ball Bearing 6206Ball Bearing 6206
-
18420931940 Oil SealOil Seal
-
19420834350 Central Gear, 15 TeethCentral Gear, 15 Teeth
-
20420818664 Crankshaft, PTOCrankshaft, PTO
-
21420818693 Crankshaft, Mag SideCrankshaft, Mag Side
-
22420888753 Rod Repair Kit, Mag SideRod Repair Kit, Mag Side
-
22420888754 Rod Repair Kit, PTO SideRod Repair Kit, PTO Side
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
25413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
26413802900 Injection Oil, 12 X 1 LiterInjection Oil, 12 X 1 Liter
-
27420899271 Petamo Grease, Ghy133n, 400 GPetamo Grease, Ghy133n, 400 G
-
28293550021 Isoflex Grease, 50 GIsoflex Grease, 50 G
