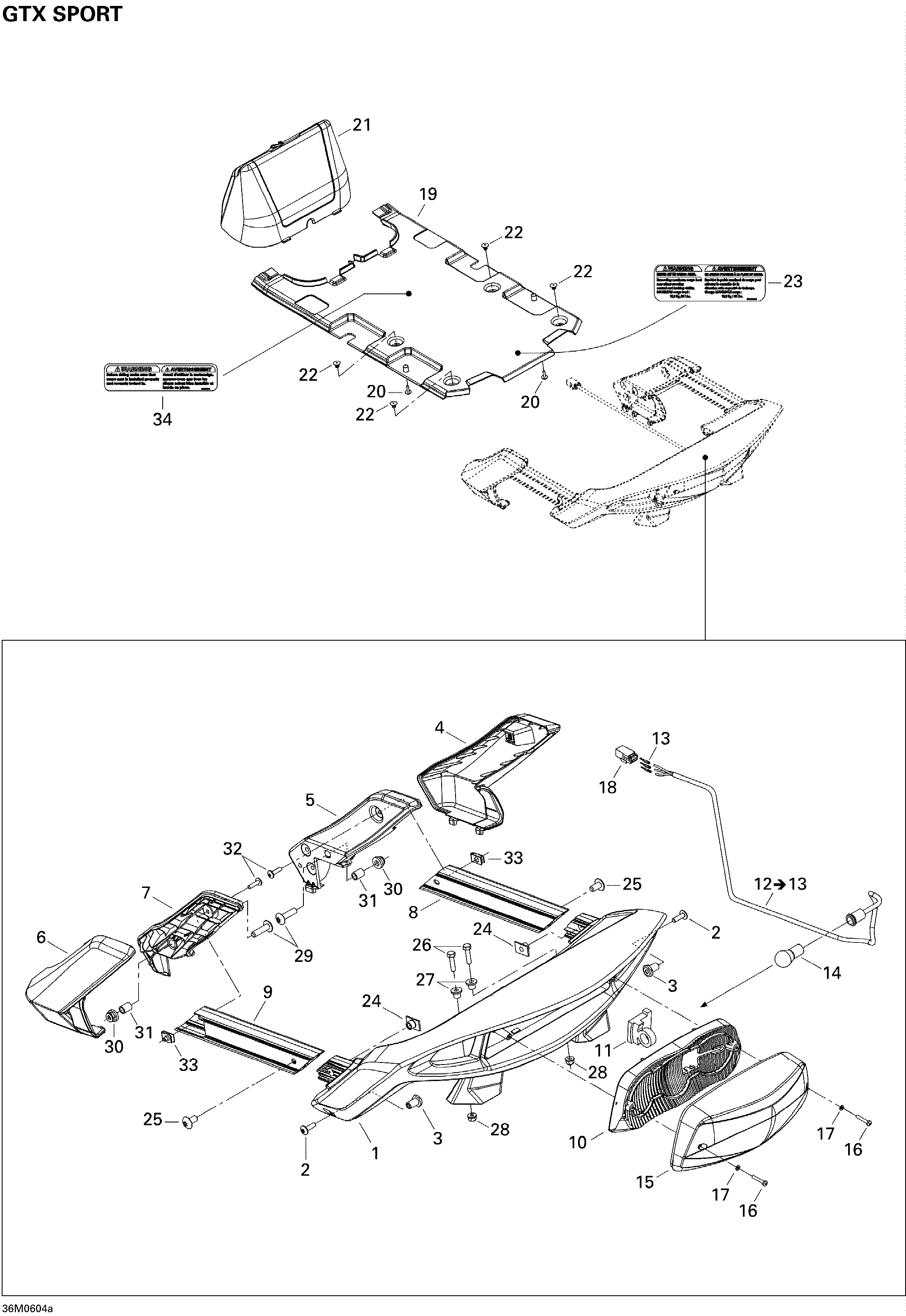

09- Luggage Rack Sport для BRP Ski-Doo GTX 500SS - 2006
-
№АртикулНазвание
-
1511000317 RackRack
-
2250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
3511000398 InsertInsert
-
4511000322 RH Outside ArmRH Outside Arm
-
5511000326 RH Inside ArmRH Inside Arm
-
6511000323 LH Outside ArmLH Outside Arm
-
7511000327 LH Inside ArmLH Inside Arm
-
8511000321 RH Side BarRH Side Bar
-
9511000345 LH Side BarLH Side Bar
-
10510004442 ReflectorReflector
-
11511000431 Bulb SupportBulb Support
-
12511000466 Bulb Socket. Includes 12 to 13Bulb Socket. Includes 12 to 13
-
13515175232 Male TerminalMale Terminal
-
14410504100 Tail Lamp BulbTail Lamp Bulb
-
15511000315 LensLens
-
16209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
17414516400 WasherWasher
-
18515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
19511000440 Radiator CoverRadiator Cover
-
20250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
21511000357 Tank CoverTank Cover
-
22293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
23516002960 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
-
24511000341 Thread InsertThread Insert
-
25250000198 Torx Screw M8 X 16Torx Screw M8 X 16
-
26207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
27511000340 Flanged BushingFlanged Bushing
-
28233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
29250000197 Torx Screw M8 X 30Torx Screw M8 X 30
-
30233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
31511000325 BushingBushing
-
32250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
33250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
34516003035 Clenching DecalClenching Decal
