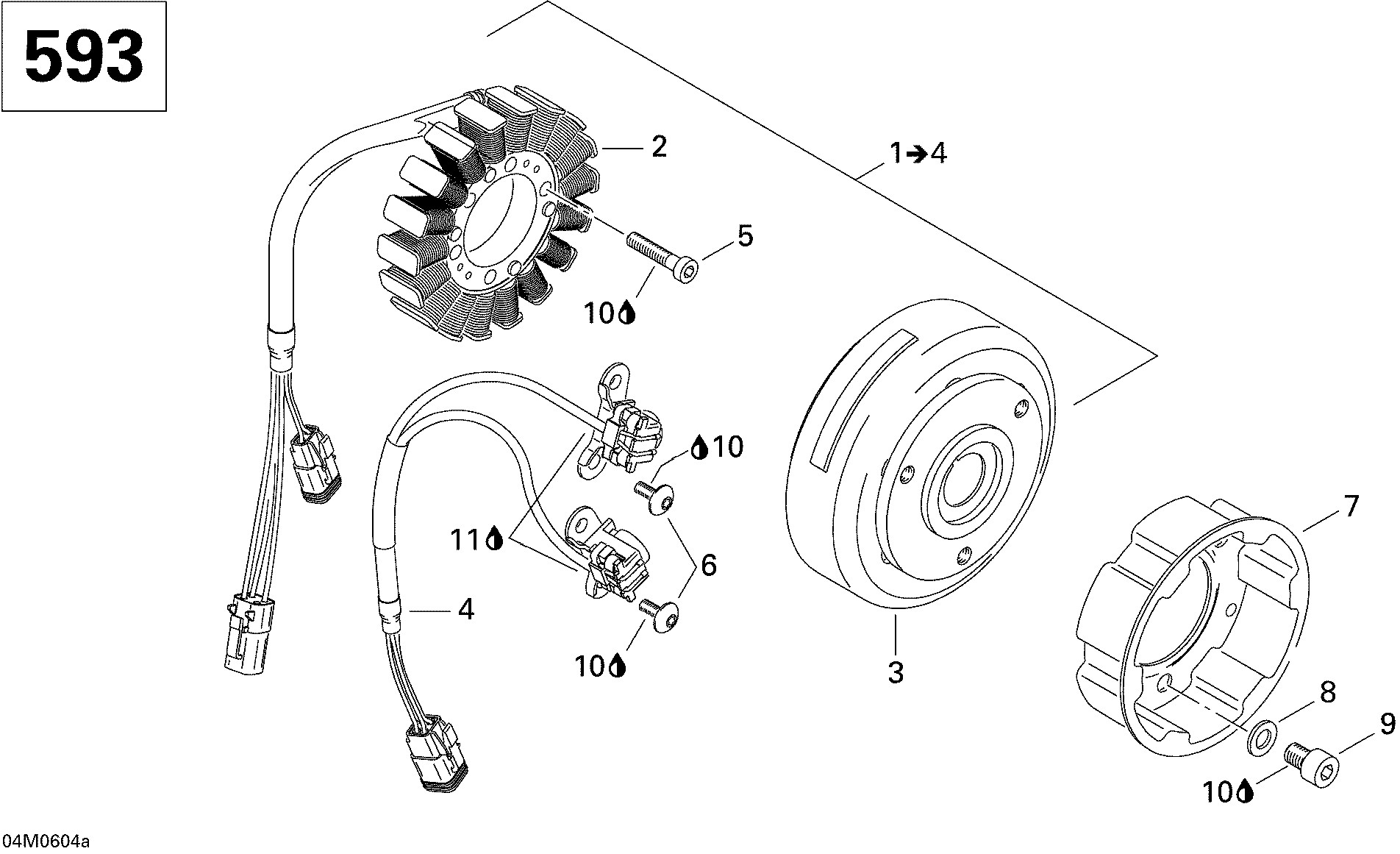

03- Magneto 593 для BRP Ski-Doo GTX 500SS - 2006
-
№АртикулНазвание
-
2410922946 Stator Plate Ass'yStator Plate Ass'y
-
3410922947 FlywheelFlywheel
-
4410922948 Pickup Ass'yPickup Ass'y
-
5205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
6420640321 Taptite Screw M6 X 16Taptite Screw M6 X 16
-
7420852590 Starting PulleyStarting Pulley
-
8420827405 Flat WasherFlat Washer
-
9420841520 Socket Head Screw M8 X 12Socket Head Screw M8 X 12
-
10293800060 Loctite 243, 10 mlLoctite 243, 10 ml
