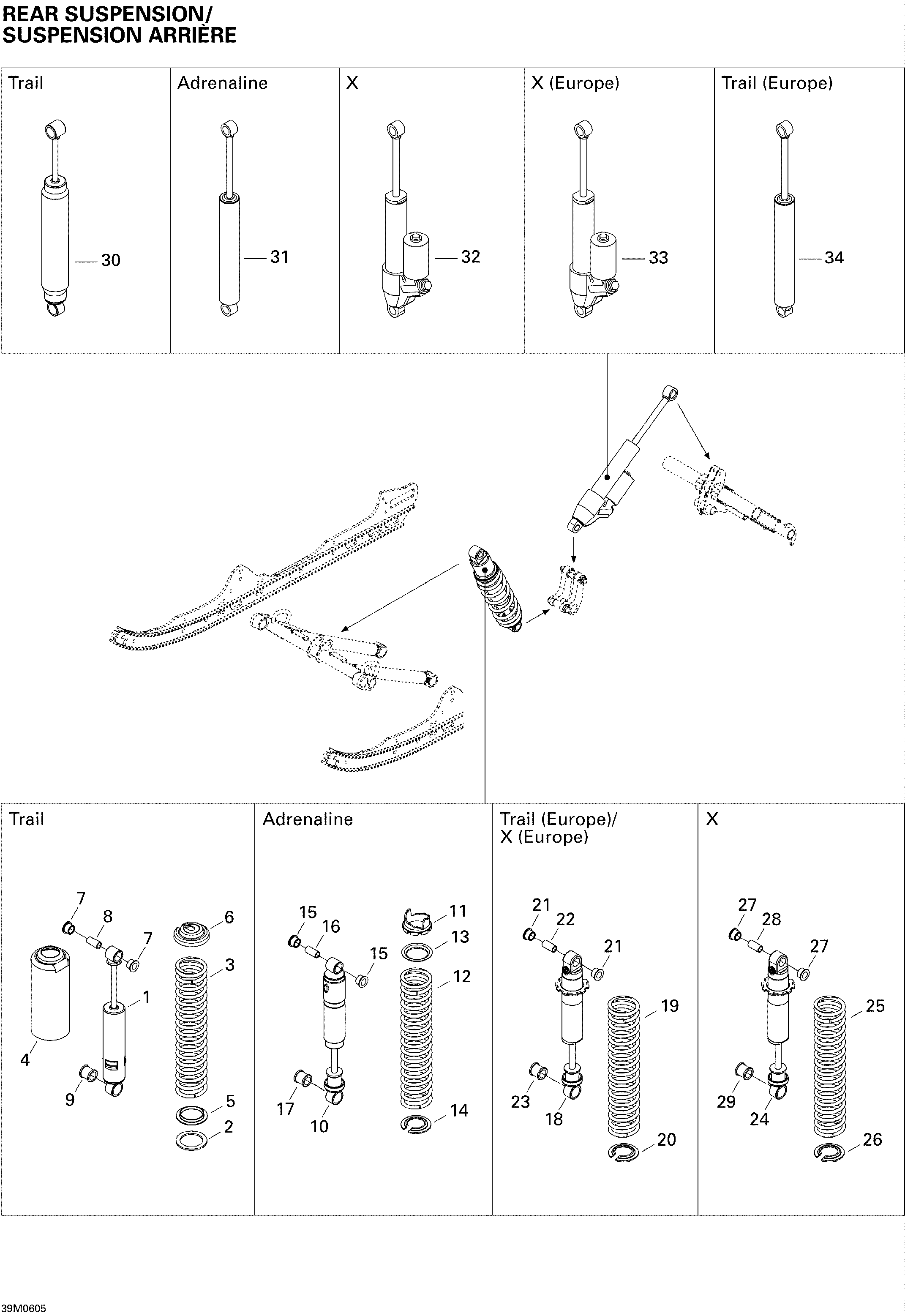

08- Rear Suspension Shocks 500 для BRP Ski-Doo MX Z 500SS Trail & Adrenaline - 2006
-
№АртикулНазвание
-
1503190992 Center Shock. 500 TrailCenter Shock. 500 Trail
-
2505070401 Washer. 500 TrailWasher. 500 Trail
-
3503191135 Spring. 500 TrailSpring. 500 Trail
-
4503191126 Protector. 500 TrailProtector. 500 Trail
-
5503187500 Spring Guide. 500 TrailSpring Guide. 500 Trail
-
6503140600 Spring Stopper. 500 TrailSpring Stopper. 500 Trail
-
7503189117 Cushion. 500 TrailCushion. 500 Trail
-
8503189282 Bushing. 500 TrailBushing. 500 Trail
-
9503189271 Cushion. 500 TrailCushion. 500 Trail
-
10503190663 Center Shock. 500/600/800 AdrenalineCenter Shock. 500/600/800 Adrenaline
-
11505070150 Cam 45°. 500/600/800 AdrenalineCam 45°. 500/600/800 Adrenaline
-
12503191135 Spring. 500/600/800 AdrenalineSpring. 500/600/800 Adrenaline
-
13517184300 Spring Guide. 500/600/800 AdrenalineSpring Guide. 500/600/800 Adrenaline
-
14503189912 Spring Stopper. 500/600/800 AdrenalineSpring Stopper. 500/600/800 Adrenaline
-
15503189117 Cushion. 500/600/800 AdrenalineCushion. 500/600/800 Adrenaline
-
16503189282 Bushing. 500/600/800 AdrenalineBushing. 500/600/800 Adrenaline
-
17503189271 Cushion. 500/600/800 AdrenalineCushion. 500/600/800 Adrenaline
-
18503191220 Center Shock. 500 Trail (Europe) & 800 X (Europe)Center Shock. 500 Trail (Europe) & 800 X (Europe)
-
19503189325 Spring. 500 Trail (Europe) & 800 X (Europe)Spring. 500 Trail (Europe) & 800 X (Europe)
-
20503189912 Spring Stopper. 500 Trail (Europe) & 800 X (Europe)Spring Stopper. 500 Trail (Europe) & 800 X (Europe)
-
21503189117 Cushion. 500 Trail (Europe) & 800 X (Europe)Cushion. 500 Trail (Europe) & 800 X (Europe)
-
22503189282 Bushing. 500 Trail (Europe) & 800 X (Europe)Bushing. 500 Trail (Europe) & 800 X (Europe)
-
23503189271 Cushion. 500 Trail (Europe) & 800 X (Europe)Cushion. 500 Trail (Europe) & 800 X (Europe)
-
30503190991 Rear Shock. 500 TrailRear Shock. 500 Trail
-
31503190809 Rear Shock. 500/600/800 AdrenalineRear Shock. 500/600/800 Adrenaline
-
34503191222 Rear Shock. 500 Trail (Europe)Rear Shock. 500 Trail (Europe)
