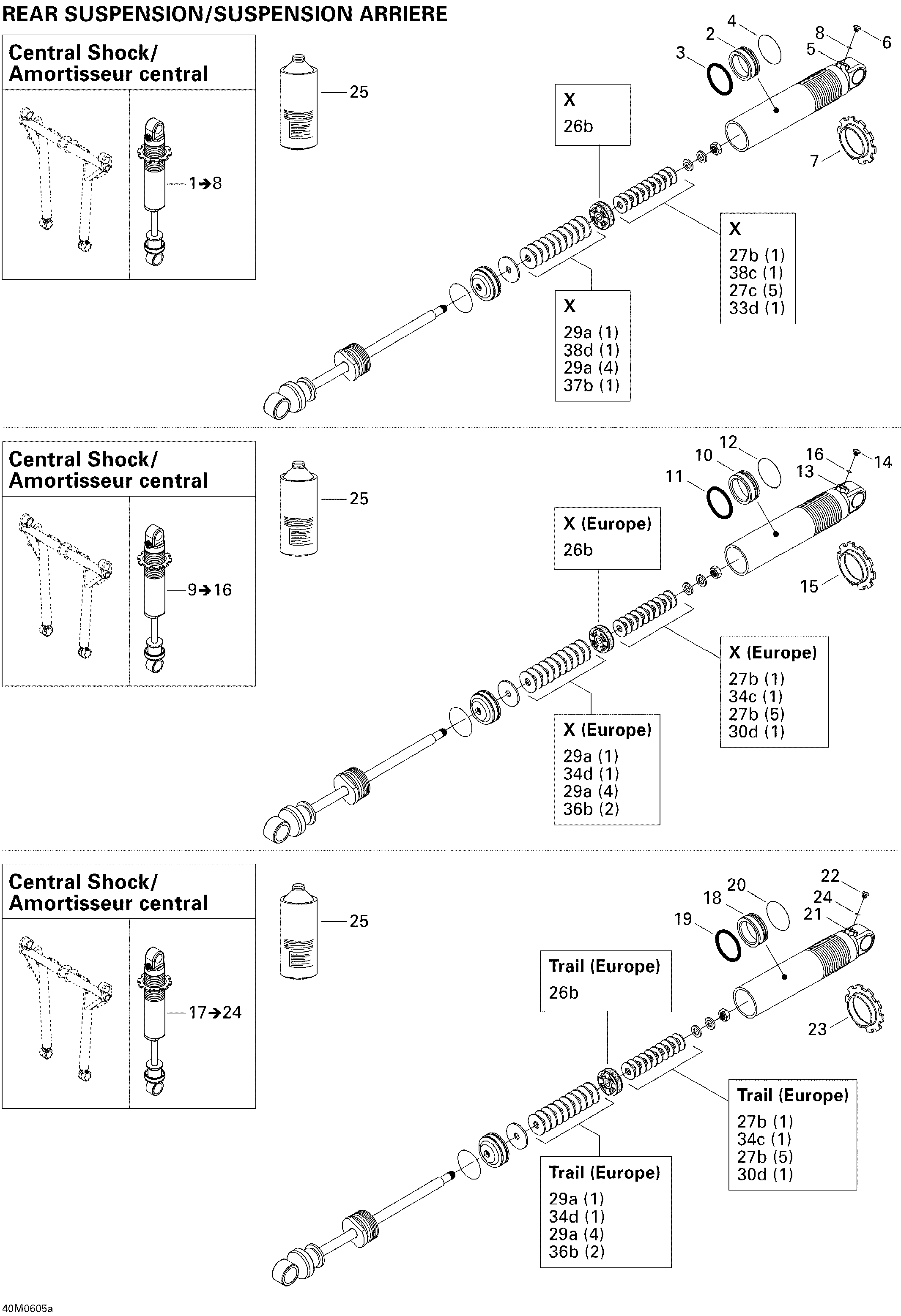

08- Take Apart Shock, Rear 1 (500) для BRP Ski-Doo MX Z 500SS Trail & Adrenaline - 2006
-
№АртикулНазвание
-
17503191220 Center Shock. Includes 17 to 24 / 500 Trail (Europe)Center Shock. Includes 17 to 24 / 500 Trail (Europe)
-
18503189309 Free Piston. 500 Trail (Europe)Free Piston. 500 Trail (Europe)
-
19414888312 O-Ring. 500 Trail (Europe)O-Ring. 500 Trail (Europe)
-
20503189308 Piston Ring. 500 Trail (Europe)Piston Ring. 500 Trail (Europe)
-
21505070398 Air Valve Ring. 500 Trail (Europe)Air Valve Ring. 500 Trail (Europe)
-
22505070399 Screw. 500 Trail (Europe)Screw. 500 Trail (Europe)
-
23414888316 Spring Collar. 500 Trail (Europe)Spring Collar. 500 Trail (Europe)
-
24505070400 O-Ring. 500 Trail (Europe)O-Ring. 500 Trail (Europe)
-
25293600035 Shock Oil, 1 LiterShock Oil, 1 Liter
-
26a414888304 Piston (C36)Piston (C36)
-
26c414888305 Piston (2 X 0.3-2) (C36)Piston (2 X 0.3-2) (C36)
-
26E414888306 Piston (2 X 0.3-4) (C36)Piston (2 X 0.3-4) (C36)
-
26g414888307 Piston (2 X 0.3-6) (C36)Piston (2 X 0.3-6) (C36)
-
27a415039100 Leaf Valve O30 X 0.254 (C36)Leaf Valve O30 X 0.254 (C36)
-
27b414888318 Leaf Valve O30 X 0.203 (C36)Leaf Valve O30 X 0.203 (C36)
-
27C414888319 Leaf Valve O30 X 0.152 (C36)Leaf Valve O30 X 0.152 (C36)
-
28b414888320 Leaf Valve O28 X 0.203 (C36)Leaf Valve O28 X 0.203 (C36)
-
28c414888321 Leaf Valve O28 X 0.152 (C36)Leaf Valve O28 X 0.152 (C36)
-
29a415039000 Leaf Valve O26 X 0.254 (C36)Leaf Valve O26 X 0.254 (C36)
-
29b414888322 Leaf Valve O26 X 0.203 (C36)Leaf Valve O26 X 0.203 (C36)
-
29c414888323 Leaf Valve O26 X 0.152 (C36)Leaf Valve O26 X 0.152 (C36)
-
31b414888324 Leaf Valve O22 X 0.203 (C36)Leaf Valve O22 X 0.203 (C36)
-
31c414888325 Leaf Valve O22 X 0.152 (C36)Leaf Valve O22 X 0.152 (C36)
-
32d414888340 Leaf Valve O21 X 0.114 (C36)Leaf Valve O21 X 0.114 (C36)
-
33b414888326 Leaf Valve O20 X 0.203 (C36)Leaf Valve O20 X 0.203 (C36)
-
33c414888327 Leaf Valve O20 X 0.152 (C36)Leaf Valve O20 X 0.152 (C36)
-
33d414888328 Leaf Valve O20 X 0.114 (C36)Leaf Valve O20 X 0.114 (C36)
-
35b414888329 Leaf Valve O18 X 0.203 (C36)Leaf Valve O18 X 0.203 (C36)
-
35c414888330 Leaf Valve O18 X 0.152 (C36)Leaf Valve O18 X 0.152 (C36)
-
37a414888331 Leaf Valve O16 X 0.254 (C36)Leaf Valve O16 X 0.254 (C36)
-
37b414888332 Leaf Valve O16 X 0.203 (C36)Leaf Valve O16 X 0.203 (C36)
-
37c414888333 Leaf Valve O16 X 0.152 (C36)Leaf Valve O16 X 0.152 (C36)
-
37D415038900 Leaf Valve O16 X 0.114 (C36)Leaf Valve O16 X 0.114 (C36)
-
38a414888334 Leaf Valve O15 X 0.254 (C36)Leaf Valve O15 X 0.254 (C36)
-
38b414888335 Leaf Valve O15 X 0.203 (C36)Leaf Valve O15 X 0.203 (C36)
-
38c414888336 Leaf Valve O15 X 0.152 (C36)Leaf Valve O15 X 0.152 (C36)
-
38d414888337 Leaf Valve O15 X 0.114 (C36)Leaf Valve O15 X 0.114 (C36)
-
41a503189538 Leaf Valve O12 X 0.254 (C36)Leaf Valve O12 X 0.254 (C36)
-
41b414888338 Leaf Valve O12 X 0.203 (C36)Leaf Valve O12 X 0.203 (C36)
-
41c414888339 Leaf Valve O12 X 0.152 (C36)Leaf Valve O12 X 0.152 (C36)
-
41d415038800 Leaf Valve O12 X 0.114 (C36)Leaf Valve O12 X 0.114 (C36)
