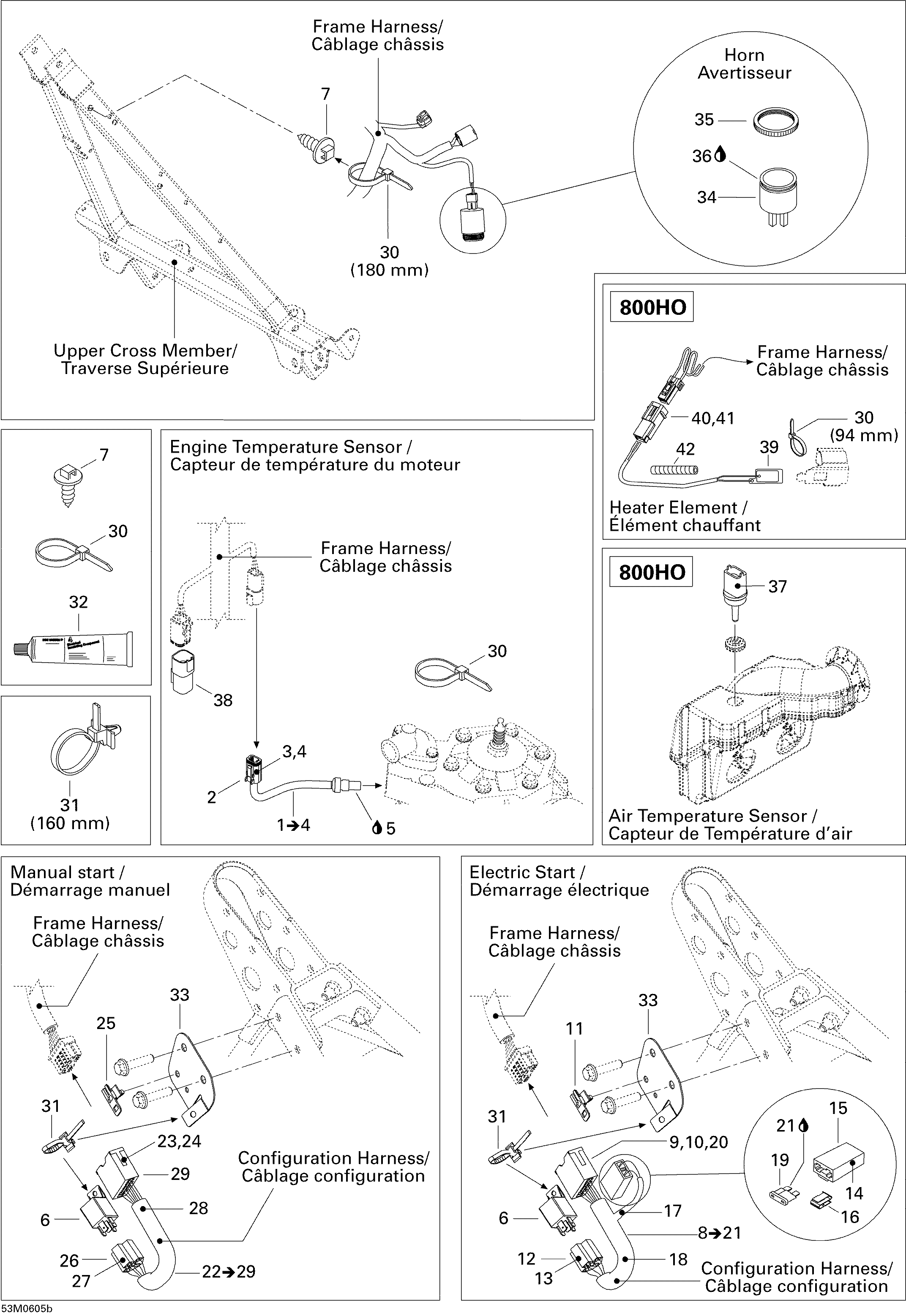

10- Electrical Accessories 2 (500) для BRP Ski-Doo MX Z 500SS Trail & Adrenaline - 2006
-
№АртикулНазвание
-
1515176043 Temperature Sensor. Includes 1 to 4Temperature Sensor. Includes 1 to 4
-
2278000739 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
3278000632 Female TerminalFemale Terminal
-
4515175677 Lock Female, 4 CircuitsLock Female, 4 Circuits
-
5293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
6410113200 RelayRelay
-
7293730018 Dart MountDart Mount
-
8515175721 Configuration Harness Ass'Y. Electric Start, Includes 8 to 21Configuration Harness Ass'Y. Electric Start, Includes 8 to 21
-
9515175232 Male TerminalMale Terminal
-
10515175273 Male TerminalMale Terminal
-
11515175283 Housing SupportHousing Support
-
12409209900 Female Terminal Housing, 5 CircuitsFemale Terminal Housing, 5 Circuits
-
13561503100 Female TerminalFemale Terminal
-
14409011600 Female TerminalFemale Terminal
-
15409004000 Fuse HolderFuse Holder
-
16409014200 ClipClip
-
17515175442 Tubing, 6 mmTubing, 6 mm
-
18409901800 Tubing, 13 mmTubing, 13 mm
-
19278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
20515175720 Male Terminal Housing, 11 CircuitsMale Terminal Housing, 11 Circuits
-
21293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
22515176175 Configuration Harness. Manual Start, Includes 22 to 29Configuration Harness. Manual Start, Includes 22 to 29
-
23515175232 Male TerminalMale Terminal
-
24515175273 Male TerminalMale Terminal
-
25515175283 Housing SupportHousing Support
-
26409209900 Female Terminal Housing, 5 CircuitsFemale Terminal Housing, 5 Circuits
-
27561503100 Female TerminalFemale Terminal
-
28409901800 Tubing, 13 mmTubing, 13 mm
-
29515175720 Male Terminal Housing, 11 CircuitsMale Terminal Housing, 11 Circuits
-
30414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
31293750009 Tie Rap 160 mmTie Rap 160 mm
-
32293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
33515176020 Harness SupportHarness Support
-
34515176035 HornHorn
-
35414805101 Plastic NutPlastic Nut
-
36296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
38515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
