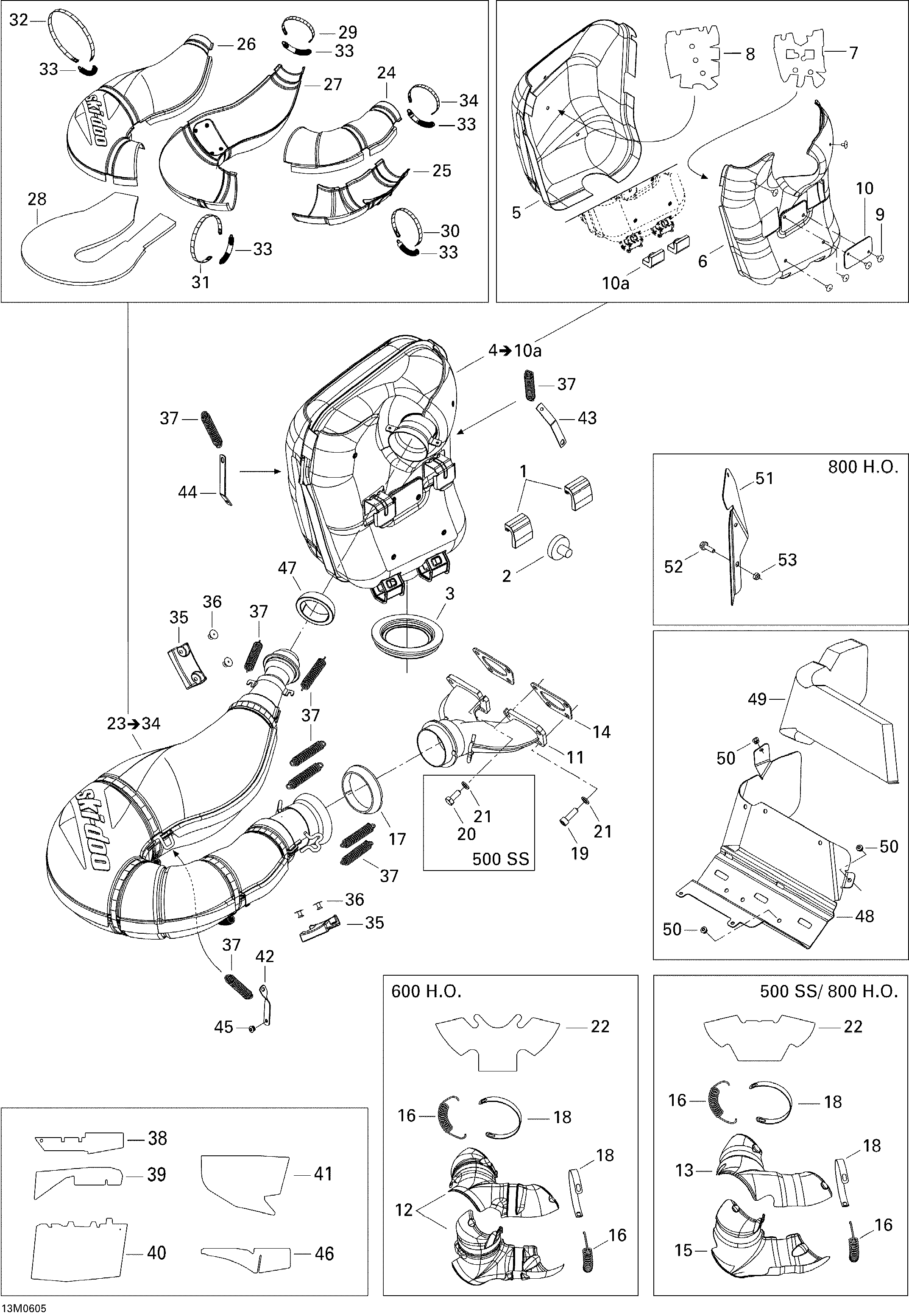

01- Exhaust System 800HO для BRP Ski-Doo MX Z 800 HO Adrenaline & X - 2006
-
№АртикулНазвание
-
1514053372 Upper StopperUpper Stopper
-
2514053654 Rubber BumperRubber Bumper
-
3514053394 Exhaust GrommetExhaust Grommet
-
4514054124 Muffler Ass'y. 800 HO, Includes 4 To 10Muffler Ass'y. 800 HO, Includes 4 To 10
-
5514054122 RH Heat ShieldRH Heat Shield
-
6514053585 LH Heat ShieldLH Heat Shield
-
7514053590 LH Insulating WoolLH Insulating Wool
-
8514053589 RH Insulating WoolRH Insulating Wool
-
9390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
10514053429 ReinforcementReinforcement
-
11420973713 Exhaust Manifold. 800 HOExhaust Manifold. 800 HO
-
13514053831 Upper Enveloppe (exhaust Manifold). 500 SS, 800 HOUpper Enveloppe (exhaust Manifold). 500 SS, 800 HO
-
14420931850 Gasket. 800 HOGasket. 800 HO
-
15514053830 Lower Enveloppe (exhaust Manifold). 500 SS, 800 HOLower Enveloppe (exhaust Manifold). 500 SS, 800 HO
-
16514053643 SpringSpring
-
17514053487 Exhaust GasketExhaust Gasket
-
18514053603 Retaining StrapRetaining Strap
-
19514054047 Socket Screw M6 X 20 (scotch Grip). 600 HO, 800 HOSocket Screw M6 X 20 (scotch Grip). 600 HO, 800 HO
-
21514053953 Washer. 600 HO, 800 HOWasher. 600 HO, 800 HO
-
22514053284 Insulating Wool. 500 SS, 800 HOInsulating Wool. 500 SS, 800 HO
-
23514053749 Tuned Pipe Ass'y. 800 HO, Includes 23 To 34Tuned Pipe Ass'y. 800 HO, Includes 23 To 34
-
24514053609 Upper Front Half EnvelopeUpper Front Half Envelope
-
25514053610 Lower Front Haft EnvelopeLower Front Haft Envelope
-
26514053612 Upper Rear Half EnvelopeUpper Rear Half Envelope
-
27514053613 Lower Rear Half EnvelopeLower Rear Half Envelope
-
28514053584 Insulating WoolInsulating Wool
-
29514053437 Retaining StrapRetaining Strap
-
30514053500 Retaining StrapRetaining Strap
-
31514053534 Retaining StrapRetaining Strap
-
32514053535 Retaining StrapRetaining Strap
-
33514053643 SpringSpring
-
34514053536 Retaining StrapRetaining Strap
-
35514053352 BumperBumper
-
36293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
37415107100 SpringSpring
-
38514053560 Reflective SheetReflective Sheet
-
39514053622 Reflective SheetReflective Sheet
-
40514053954 Reflective SheetReflective Sheet
-
41514053562 Reflective SheetReflective Sheet
-
42514053955 Spring BracketSpring Bracket
-
43514053725 Spring BracketSpring Bracket
-
44514053393 Spring BracketSpring Bracket
-
45293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
46514053673 Reflective SheetReflective Sheet
-
47514053812 Exhaust GasketExhaust Gasket
-
48514053956 Acoustic PlateAcoustic Plate
-
49514053967 Acoustic FoamAcoustic Foam
-
50390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
51514053876 Heat Deflector. 800 HOHeat Deflector. 800 HO
-
52207662044 Hex. Flanged Screw M6 X 20. 800 HOHex. Flanged Screw M6 X 20. 800 HO
-
53232561414 Elastic Stop Nut M6. 800 HOElastic Stop Nut M6. 800 HO
