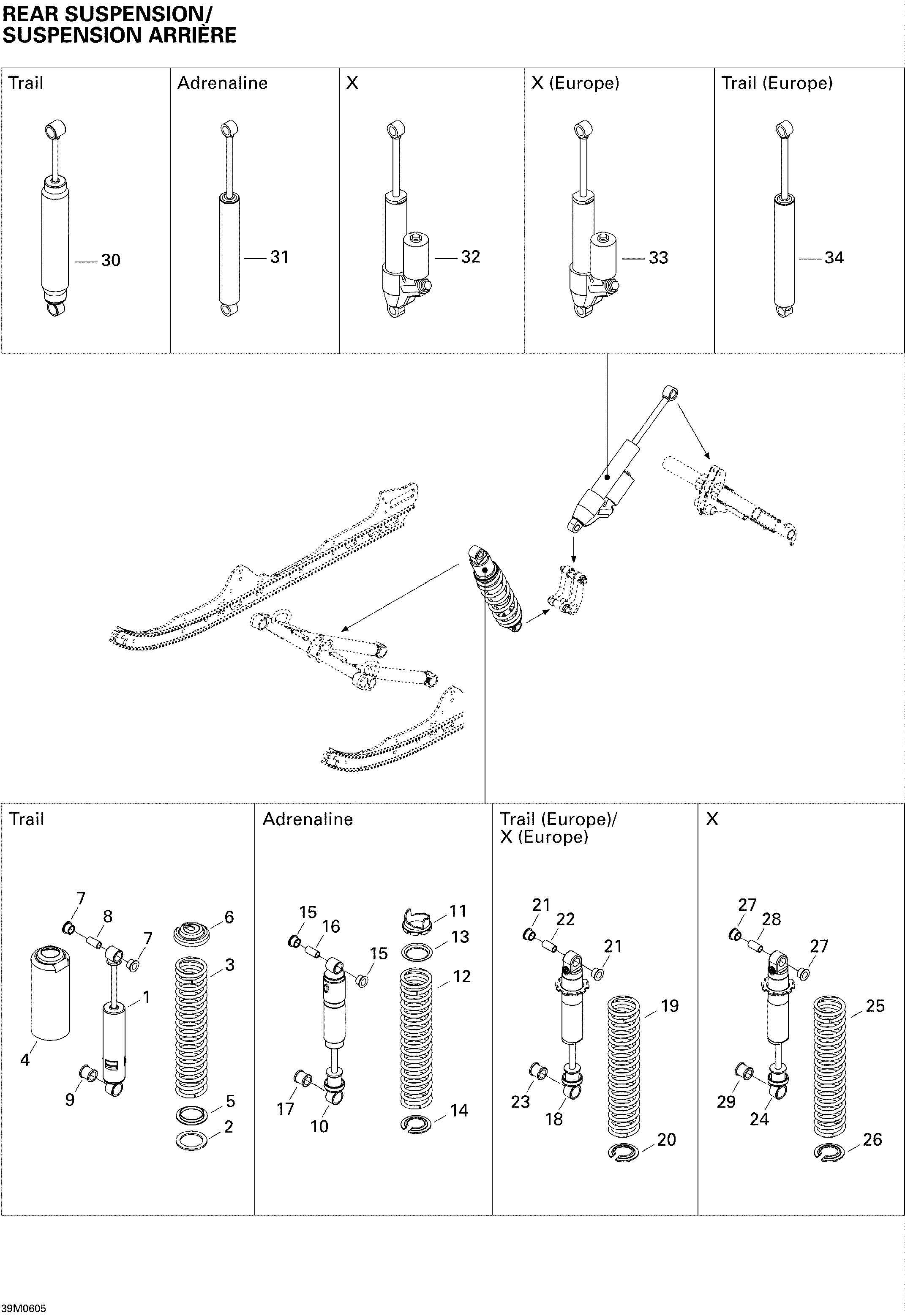

08- Rear Suspension Shocks 800 для BRP Ski-Doo MX Z 800 HO Adrenaline & X - 2006
-
№АртикулНазвание
-
10503190663 Center Shock. 500/600/800 AdrenalineCenter Shock. 500/600/800 Adrenaline
-
11505070150 Cam 45°. 500/600/800 AdrenalineCam 45°. 500/600/800 Adrenaline
-
12503191135 Spring. 500/600/800 AdrenalineSpring. 500/600/800 Adrenaline
-
13517184300 Spring Guide. 500/600/800 AdrenalineSpring Guide. 500/600/800 Adrenaline
-
14503189912 Spring Stopper. 500/600/800 AdrenalineSpring Stopper. 500/600/800 Adrenaline
-
15503189117 Cushion. 500/600/800 AdrenalineCushion. 500/600/800 Adrenaline
-
16503189282 Bushing. 500/600/800 AdrenalineBushing. 500/600/800 Adrenaline
-
17503189271 Cushion. 500/600/800 AdrenalineCushion. 500/600/800 Adrenaline
-
18503191220 Center Shock. 500 Trail (Europe) & 800 X (Europe)Center Shock. 500 Trail (Europe) & 800 X (Europe)
-
19503189325 Spring. 500 Trail (Europe) & 800 X (Europe)Spring. 500 Trail (Europe) & 800 X (Europe)
-
20503189912 Spring Stopper. 500 Trail (Europe) & 800 X (Europe)Spring Stopper. 500 Trail (Europe) & 800 X (Europe)
-
21503189117 Cushion. 500 Trail (Europe) & 800 X (Europe)Cushion. 500 Trail (Europe) & 800 X (Europe)
-
22503189282 Bushing. 500 Trail (Europe) & 800 X (Europe)Bushing. 500 Trail (Europe) & 800 X (Europe)
-
23503189271 Cushion. 500 Trail (Europe) & 800 X (Europe)Cushion. 500 Trail (Europe) & 800 X (Europe)
-
24503191203 Center Shock. 800 XCenter Shock. 800 X
-
25503191135 Spring. 800 XSpring. 800 X
-
26503189912 Spring Stopper. 800 XSpring Stopper. 800 X
-
27503189117 Cushion. 800 XCushion. 800 X
-
28503189282 Bushing. 800 XBushing. 800 X
-
29503189271 Cushion. 800 XCushion. 800 X
-
31503190809 Rear Shock. 500/600/800 AdrenalineRear Shock. 500/600/800 Adrenaline
-
32503191204 Rear Shock. 800 XRear Shock. 800 X
-
33503191221 Rear Shock. 800 X (Europe)Rear Shock. 800 X (Europe)
