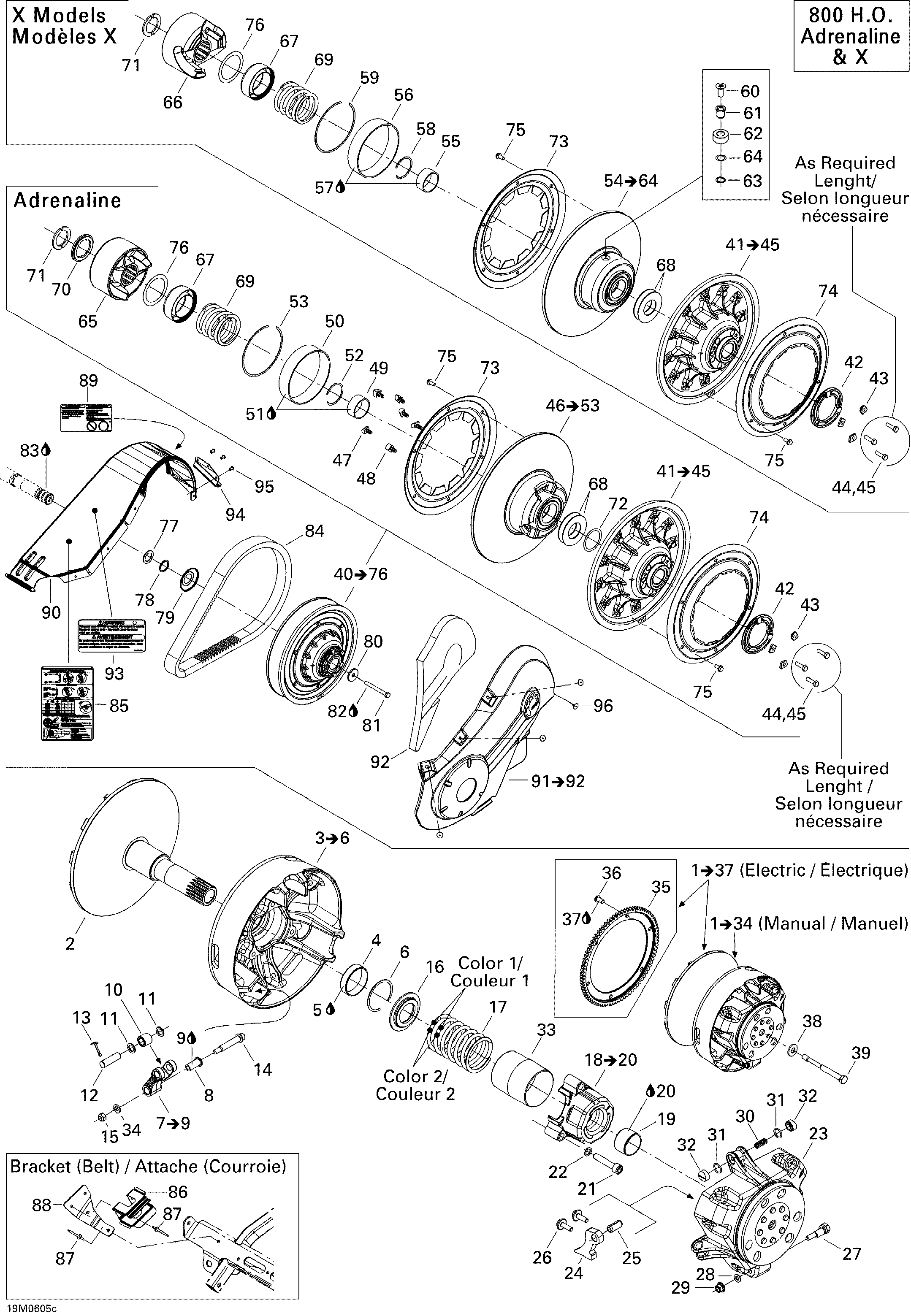

05- Pulley System 800 H.O. для BRP Ski-Doo MX Z 800 HO Adrenaline & X - 2006
-
№АртикулНазвание
-
2417222167 Fixed FlangeFixed Flange
-
3417222171 Sliding Flange Ass'y. Includes 3 to 6Sliding Flange Ass'y. Includes 3 to 6
-
4417222758 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'y. Includes 7 to 9Lever Ass'y. Includes 7 to 9
-
8417222633 BushingBushing
-
9413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
10417003900 Roller Ass'yRoller Ass'y
-
11417004302 Stopper WasherStopper Washer
-
12417222594 PinPin
-
13732958001 Cotter PinCotter Pin
-
14417222028 Screw Ass'yScrew Ass'y
-
15232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
16417222312 Spring SeatSpring Seat
-
17415015400 Spring, Violet/greenSpring, Violet/green
-
18417007500 Spring Cover Ass'y. Includes 18 to 20Spring Cover Ass'y. Includes 18 to 20
-
19417009204 BushingBushing
-
20413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
21205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
22250200009 Lock Washer 8 mmLock Washer 8 mm
-
23417222213 Governor CupGovernor Cup
-
24417222546 Ramp 414Ramp 414
-
25250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
26250000059 Hex Flanged Scew M6 X 18Hex Flanged Scew M6 X 18
-
27417005500 Calibration ScrewCalibration Screw
-
28417005600 WasherWasher
-
29233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
30417005700 SpringSpring
-
31732401030 O-RingO-Ring
-
32417222362 Slider ShoeSlider Shoe
-
33417009205 GuardGuard
-
34234061410 Flat Washer M6Flat Washer M6
-
35417222829 Ring Gear. 800 H.O. ElectricRing Gear. 800 H.O. Electric
-
36236281684 Hex Screw M8 X 16. 800 H.O. ElectricHex Screw M8 X 16. 800 H.O. Electric
-
37293800005 Loctite 271, 10 ml. 800 H.O. ElectricLoctite 271, 10 ml. 800 H.O. Electric
-
38250200006 Conical Spring Washer 14 mmConical Spring Washer 14 mm
-
39417120000 Drive Pulley BoltDrive Pulley Bolt
-
41417126807 Fixed Flange Ass'y. Includes 41 to 45Fixed Flange Ass'y. Includes 41 to 45
-
42415005800 Adjustment RingAdjustment Ring
-
43415005900 Adjustment ShimAdjustment Shim
-
44207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
45207162244 Hex Screw M6 X 22Hex Screw M6 X 22
-
46417126909 Sliding Flange Ass'y. Adrenaline, Includes 46 to 53Sliding Flange Ass'y. Adrenaline, Includes 46 to 53
-
47417126373 Rear Cam Slider Shoe. AdrenalineRear Cam Slider Shoe. Adrenaline
-
48417126374 Front Cam Slider Shoe. AdrenalineFront Cam Slider Shoe. Adrenaline
-
49417126901 Bushing. AdrenalineBushing. Adrenaline
-
50417126902 Bushing. AdrenalineBushing. Adrenaline
-
51413408300 Loctite, Black Max, 3 ml. AdrenalineLoctite, Black Max, 3 ml. Adrenaline
-
52371911200 Circlip. AdrenalineCirclip. Adrenaline
-
53417126878 Circlip. AdrenalineCirclip. Adrenaline
-
54417127014 Sliding Flange Ass'y. X, Includes 54 to 64Sliding Flange Ass'y. X, Includes 54 to 64
-
55417126901 Bushing. XBushing. X
-
56417126902 Bushing. XBushing. X
-
57413408300 Loctite, Black Max, 3 ml. XLoctite, Black Max, 3 ml. X
-
58371911200 Circlip. XCirclip. X
-
59417126878 Circlip. XCirclip. X
-
60235382046 Torx Screw M8 X 20, Scotch Grip. XTorx Screw M8 X 20, Scotch Grip. X
-
61417127015 Stud. XStud. X
-
62417126892 Roller. XRoller. X
-
63417126823 V-circlip. XV-circlip. X
-
64417126797 Washer. XWasher. X
-
65417126721 Cam Ass'Y. AdrenalineCam Ass'Y. Adrenaline
-
66417126990 Cam Ass'y. XCam Ass'y. X
-
67417126381 GuardGuard
-
68504099600 Stopper WasherStopper Washer
-
69417126688 Spring, GreenSpring, Green
-
70417126733 Spacer. AdrenalineSpacer. Adrenaline
-
71417126734 Half KeyHalf Key
-
72504112300 Shim. AdrenalineShim. Adrenaline
-
73417126698 CoverCover
-
74504151831 Aerodynamic CoverAerodynamic Cover
-
75210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
76417126322 Swivel AbutmentSwivel Abutment
-
77417300252 SpacerSpacer
-
77417300265 SpacerSpacer
-
78504112000 ShimShim
-
79417300238 ProtectorProtector
-
80517302322 Strength WasherStrength Washer
-
81207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
82293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
83293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
84417300166 Drive BeltDrive Belt
-
85516002616 Decal, Suspension AdjustmentDecal, Suspension Adjustment
-
86517281905 BracketBracket
-
87390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
88417300282 BracketBracket
-
89516002674 Emergency Starting LabelEmergency Starting Label
-
90417300213 Belt GuardBelt Guard
-
91417300301 Side Protector Ass'y. Includes 91 to 92Side Protector Ass'y. Includes 91 to 92
-
92417300246 FoamFoam
-
93516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
94417300216 Belt Guard BracketBelt Guard Bracket
-
95390909200 Avex RivetAvex Rivet
-
96293150103 Pop Rivet 3/16''Pop Rivet 3/16''
