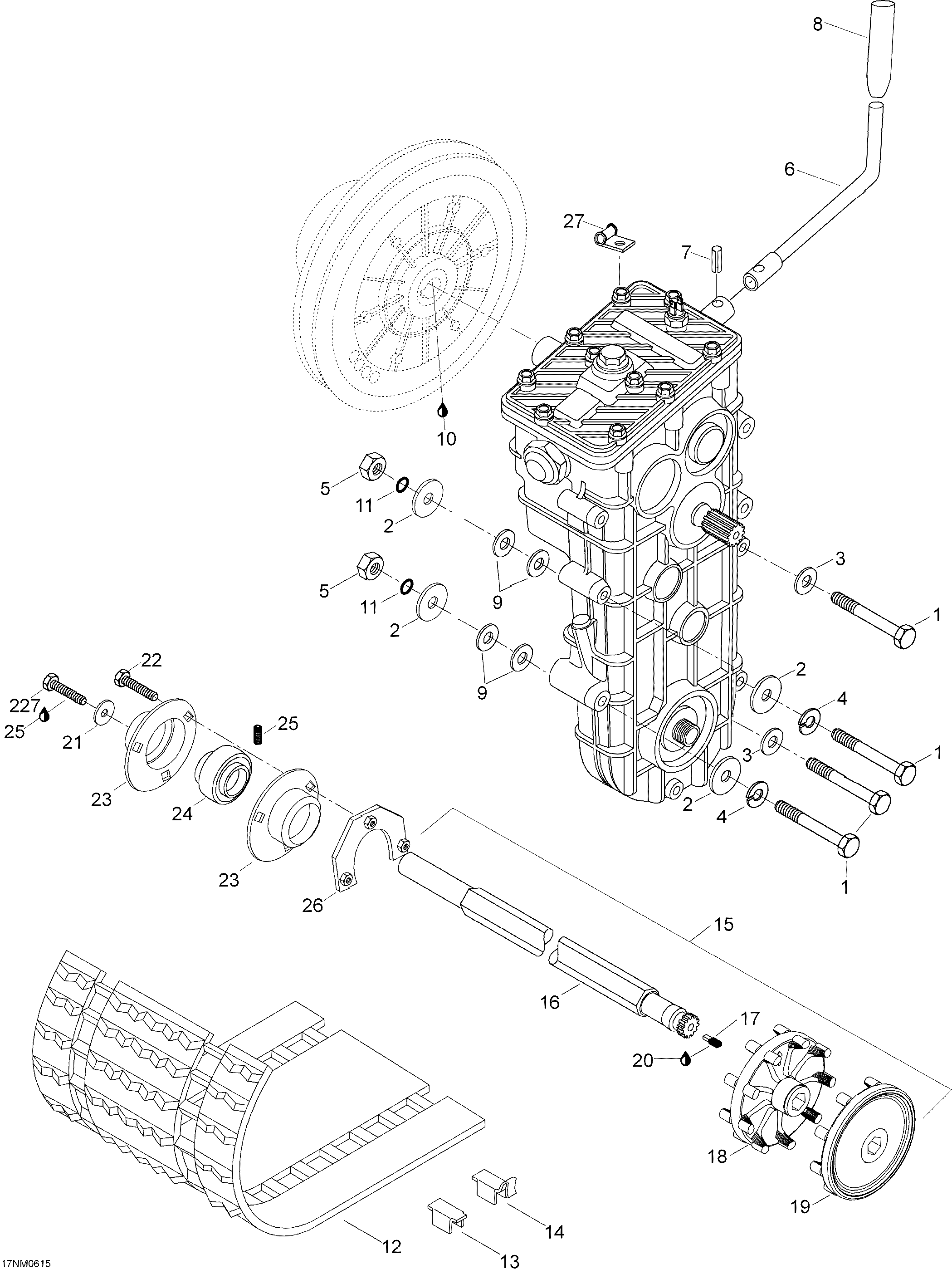

05- Drive System 600 SUV для BRP Ski-Doo Skandic SUV 600 - 2006
-
№АртикулНазвание
-
1M40012 Screw M8 X 80Screw M8 X 80
-
2M20010 WasherWasher
-
3234081410 Flat Washer 8 mmFlat Washer 8 mm
-
4234181401 Lock Washer M8Lock Washer M8
-
5232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
6M5340902 Arm ShifterArm Shifter
-
7M41007 Pin Spring. SUV 600Pin Spring. SUV 600
-
8M28247 Arm Shifter BallArm Shifter Ball
-
9M20077 Washer. SUV 600Washer. SUV 600
-
10293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
12M13070 Track Ass'Y. Includes 12 to 14Track Ass'Y. Includes 12 to 14
-
13M5318322 CleatCleat
-
14M5318323 Guide CleatGuide Cleat
-
16M5345117 Drive AxleDrive Axle
-
17M542013 NippleNipple
-
18414931800 SprocketSprocket
-
19415067400 Half SprocketHalf Sprocket
-
20293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
21M546336 WasherWasher
-
22M40336 Screw M8 X 20Screw M8 X 20
-
23M534430 Ball Bearing HousingBall Bearing Housing
-
24M31UC205 Ball Bearing. Includes 24 to 25Ball Bearing. Includes 24 to 25
-
25M10531 ScrewScrew
-
26M546421 Half RingHalf Ring
-
27M5443134 Wire Holder. SUV 600Wire Holder. SUV 600
