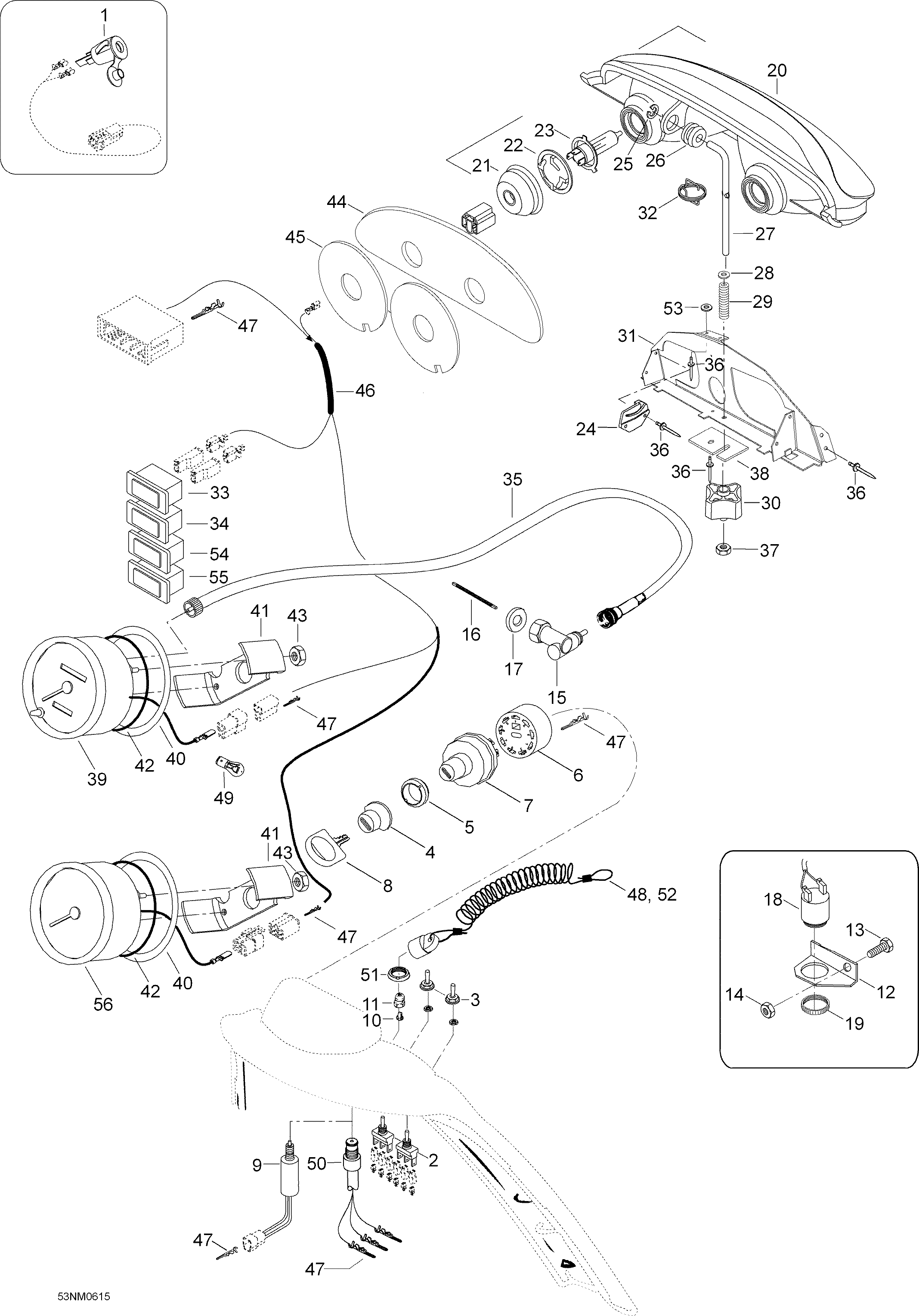

10- Electrical Accessories 600 SUV для BRP Ski-Doo Skandic SUV 600 - 2006
-
№АртикулНазвание
-
1M42026 Current OutletCurrent Outlet
-
2410107300 Switch (Heating Grip)Switch (Heating Grip)
-
3515175281 Switch CoverSwitch Cover
-
4570013700 Switch BootSwitch Boot
-
5410112100 Face NutFace Nut
-
6572150700 Female Terminal Housing (9 Circuits)Female Terminal Housing (9 Circuits)
-
7410113602 Ignition SwitchIgnition Switch
-
8414991700 Blank KeyBlank Key
-
12M549459 SupportSupport
-
13207161644 Hex Screw M6 X 16Hex Screw M6 X 16
-
14M33200 Nut M6Nut M6
-
15M35021 Drive AngleDrive Angle
-
16M45009 Square Pin-SpeedometerSquare Pin-Speedometer
-
17M5444186 WasherWasher
-
18414792102 Back-Up AlarmBack-Up Alarm
-
19414805101 Plastic NutPlastic Nut
-
20515176273 Halogen Headlamp Ass'y. Includes 20 to 23Halogen Headlamp Ass'y. Includes 20 to 23
-
21410607100 Protector CapProtector Cap
-
22410608300 Bulb HolderBulb Holder
-
23515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
24517289300 RH SupportRH Support
-
24517289400 LH SupportLH Support
-
25732610072 Push NutPush Nut
-
26415100800 GrommetGrommet
-
27M5448100 Adjuster RodAdjuster Rod
-
28234061410 Flat Washer M6Flat Washer M6
-
29415100600 SpringSpring
-
30515175548 HandleHandle
-
31M5248092 SupportSupport
-
32M5445737 SpringSpring
-
33515175726 Pilot Lamp (Headlamp)Pilot Lamp (Headlamp)
-
34515175728 Pilot Lamp (Oil Level/Brake)Pilot Lamp (Oil Level/Brake)
-
35M5344162 Speedometer CableSpeedometer Cable
-
36M36005 RivetRivet
-
37232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
38M5448320 Washer 6mmWasher 6mm
-
39605152889 Speedometer Kmh/mphSpeedometer Kmh/mph
-
40517258500 WasherWasher
-
40517258500 Washer. SUV 600, EuropeWasher. SUV 600, Europe
-
41414806500 Case HolderCase Holder
-
41414806500 Holder. SUV 600, EuropeHolder. SUV 600, Europe
-
42414807100 O-RingO-Ring
-
42414807100 O-Ring. SUV 600, EuropeO-Ring. SUV 600, Europe
-
43M33062 Nut M5Nut M5
-
4333062 Elastic flanged nut M5. SUV 600, EuropeElastic flanged nut M5. SUV 600, Europe
-
44M5247817 FoamFoam
-
45M5447818 Plastic PlatePlastic Plate
-
47M42603 Male TerminalMale Terminal
-
48515151500 Cap Ass'YCap Ass'Y
-
49410504200 Instrumentation BulbInstrumentation Bulb
-
50515166800 Terminal Ass'Y. SUV 600Terminal Ass'Y. SUV 600
-
51278000508 Safe Nut Switch. SUV 600Safe Nut Switch. SUV 600
-
52515166900 Dess Cap. SUV 600Dess Cap. SUV 600
-
53M20008 Washer 5 mm. SUV 600Washer 5 mm. SUV 600
-
54410109700 Pilot Lamp (Engine Temperature). SUV 600Pilot Lamp (Engine Temperature). SUV 600
-
55605450484 Pilot Lamp D.e.s.s.. SUV 600Pilot Lamp D.e.s.s.. SUV 600
-
56605152890 Tachometer. SUV 600, EuropeTachometer. SUV 600, Europe
