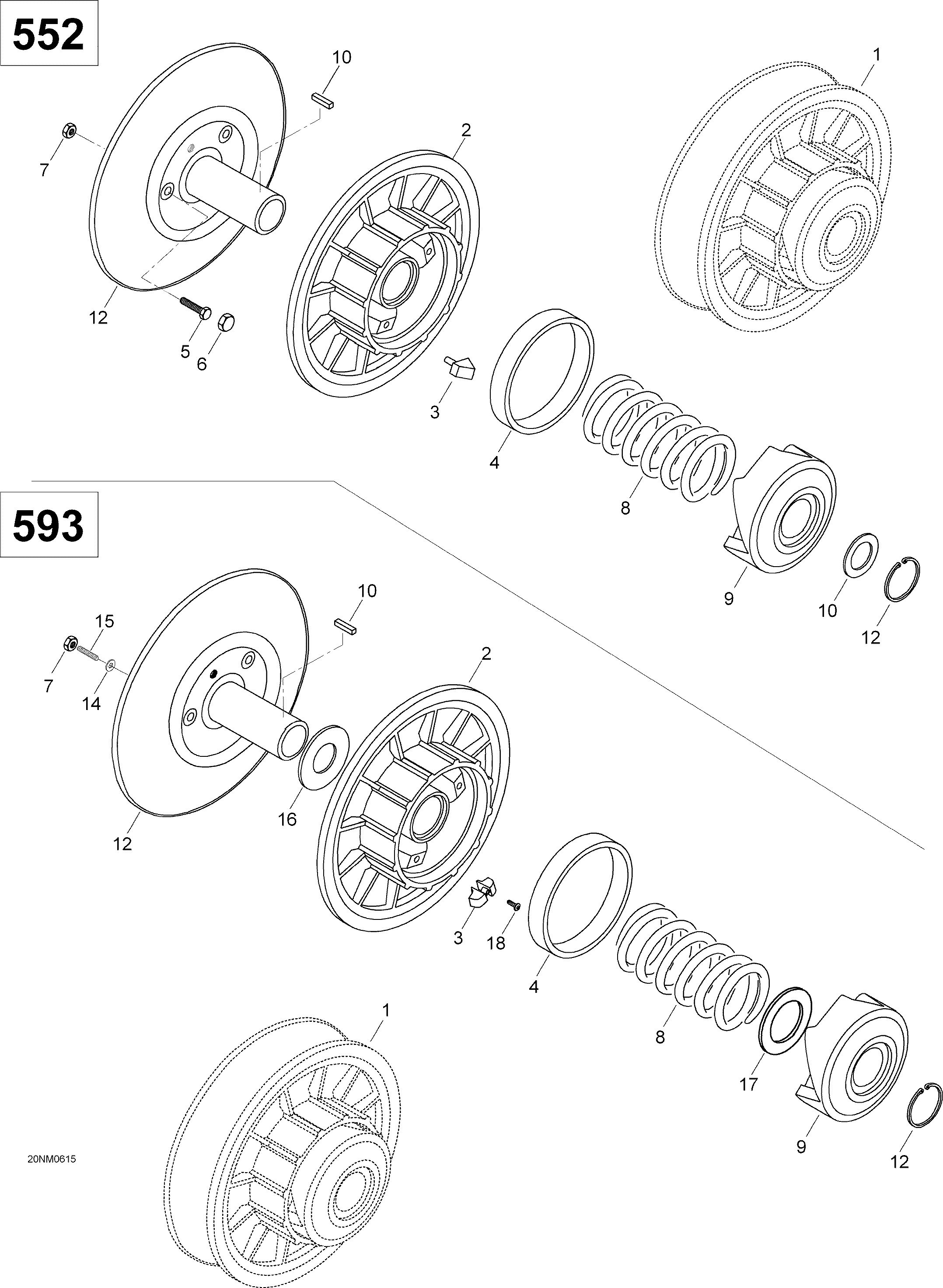

05- Driven Pulley , 600 SUV для BRP Ski-Doo Skandic SUV 600 - 2006
-
№АртикулНазвание
-
2M140066 Sliding Flange. Includes 2 to 4 and 18, SUV 600Sliding Flange. Includes 2 to 4 and 18, SUV 600
-
3M140068 Shoe Cam Slider. SUV 600Shoe Cam Slider. SUV 600
-
4M140053 BushingBushing
-
7232061414 Hex Nut M6. SUV 600Hex Nut M6. SUV 600
-
8417119100 Release SpringRelease Spring
-
9M140070 Cam 35/30 Degr.. SUV 600Cam 35/30 Degr.. SUV 600
-
10417119400 KeyKey
-
12371903100 CirclipCirclip
-
13417126310 Fixed Flange MachinedFixed Flange Machined
-
13M140065 Fixed Flange. SUV 600Fixed Flange. SUV 600
-
14420245370 Washer. SUV 600Washer. SUV 600
-
15619100003 Stud. SUV 600Stud. SUV 600
-
16504099600 Stopper Washer. SUV 600Stopper Washer. SUV 600
-
17619100007 Stop Washer. SUV 600Stop Washer. SUV 600
-
18619100006 Stud. SUV 600Stud. SUV 600
