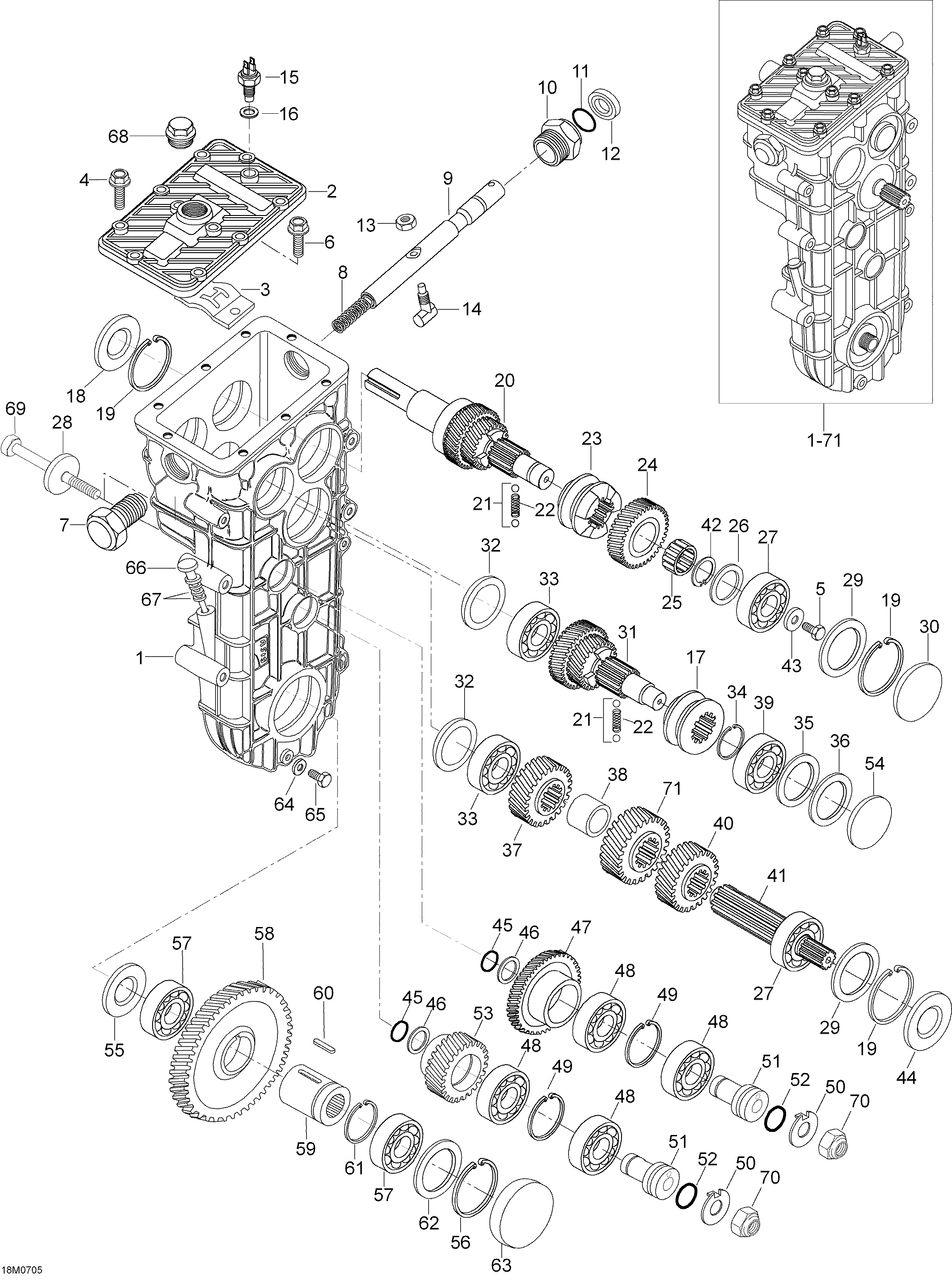

05- Transmission для BRP Ski-Doo Expedition TUV 600 H.O. SDI - 2007
-
№АртикулНазвание
-
—605612002 Transmission Ass'y. Includes 1 to 70Transmission Ass'y. Includes 1 to 70
-
1M875156138 Chain CaseChain Case
-
2M875156043 CoverCover
-
3M875156111 H SchemeH Scheme
-
4M537001402 ScrewScrew
-
5207182044 Hex Screw M8 X 20Hex Screw M8 X 20
-
6M40337 Hex ScrewHex Screw
-
7M875156076 Sleeve NutSleeve Nut
-
8M875156078 SpringSpring
-
9M875156072 ShaftShaft
-
10M875156077 Sleeve NutSleeve Nut
-
11M614601523 O'RingO'Ring
-
12M614102031 Oil SealOil Seal
-
13M510611002 NutNut
-
14M875156073 PinPin
-
15M654100225 Backup SenderBackup Sender
-
16M617391218 ShimShim
-
17M875156005 Clutch WheelClutch Wheel
-
18M614103562 Oil SealOil Seal
-
19M617330062 Lock RingLock Ring
-
20M875156063 Variator ShaftVariator Shaft
-
21M616810064 BallBall
-
22M875156105 SpringSpring
-
23M875156005 Clutch WheelClutch Wheel
-
24M875156135 Sprocket 29 ThSprocket 29 Th
-
25M611002529 Needle BearingNeedle Bearing
-
26M616092542 Axial WasherAxial Washer
-
27M610063050 Ball BearingBall Bearing
-
28M619230002 WasherWasher
-
29M617395065 ShimShim
-
29M617395067 ShimShim
-
30M614100062 PlugPlug
-
31M875156068 Reverse ShaftReverse Shaft
-
32M875152953 PlugPlug
-
33M610063044 Ball BearingBall Bearing
-
34M617450028 CirclipCirclip
-
35M617394252 ShimShim
-
35M617394352 Shim 0.5 mmShim 0.5 mm
-
36M31002 CirclipCirclip
-
37M875156054 Sprocket 34 ThSprocket 34 Th
-
38M875156088 SleeveSleeve
-
39M6304 Ball BearingBall Bearing
-
40M875156136 Sprocket 27 ThSprocket 27 Th
-
41M875156069 ShaftShaft
-
42M617450025 CirclipCirclip
-
43M875156112 WasherWasher
-
44M614102562 Oil SealOil Seal
-
45M614601224 O'RingO'Ring
-
46M875156328 RingRing
-
47M875156206 Sprocket 28ThSprocket 28Th
-
48M612030303 BearingBearing
-
49M617330047 CirclipCirclip
-
50M875156327 WasherWasher
-
51M619230001 ShaftShaft
-
52M614602431 O'RingO'Ring
-
53M875156156 Sprocket 31 ThSprocket 31 Th
-
54M614100052 PlugPlug
-
55M614102852 Oil SealOil Seal
-
56M617330068 CirclipCirclip
-
57M6008 Ball BearingBall Bearing
-
58M875156114 Sprocket 53 ThSprocket 53 Th
-
59M875156218 ShaftShaft
-
60M603345080 KeyKey
-
61M617300040 CirclipCirclip
-
62M617395568 ShimShim
-
63M614100068 PlugPlug
-
64M615580812 Gasket RingGasket Ring
-
65M528801342 PlugPlug
-
66M875156278 DipstickDipstick
-
67M614600725 O'RingO'Ring
-
68M875156098 PlugPlug
-
69M529801502 ScrewScrew
-
70M510600802 Nut M10Nut M10
-
71M875156151 Sprocket 29ThSprocket 29Th
