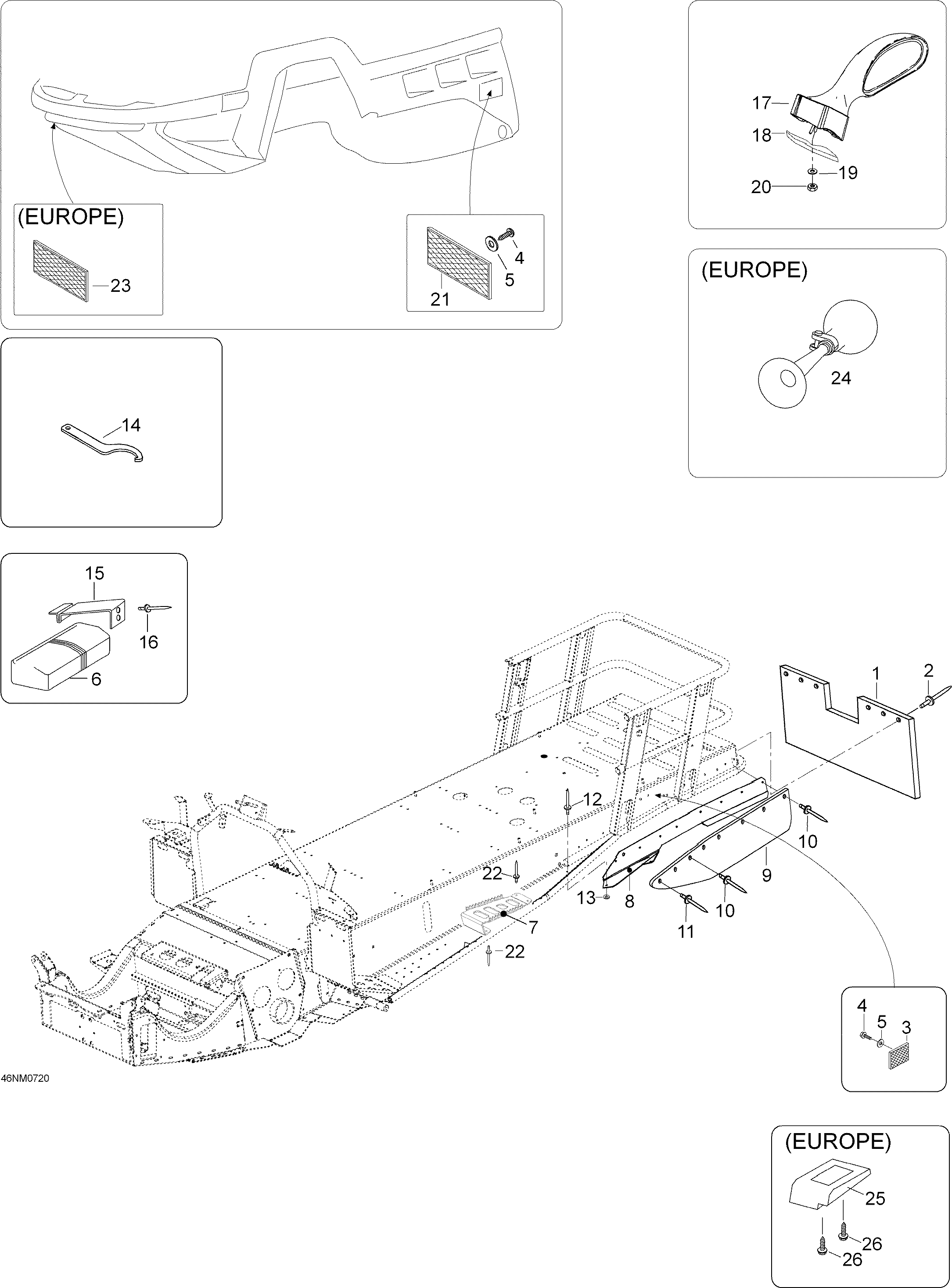

09- Utilities для BRP Ski-Doo Expedition TUV 600 H.O. SDI - 2007
-
№АртикулНазвание
-
1M538629 Snow GuardSnow Guard
-
2M36036 Rivet-BlackRivet-Black
-
3414510100 Reflector, RedReflector, Red
-
3M21121 Reflector, Amber. EuropeReflector, Amber. Europe
-
4M40070 ScrewScrew
-
5234451418 Lock Serrated Washer 5 mmLock Serrated Washer 5 mm
-
6605350525 Tool KitTool Kit
-
7605354068 FootrestFootrest
-
8605251249 RH Side Snow GuardRH Side Snow Guard
-
8605251248 LH Side Snow GuardLH Side Snow Guard
-
9M5142828 Lateral Snow GuardLateral Snow Guard
-
10M36097 RivetRivet
-
11M36891 RivetRivet
-
12M36005 RivetRivet
-
13M20008 Washer 5 mmWasher 5 mm
-
14529035582 Adjustment WrenchAdjustment Wrench
-
15M5346728 Spring PlateSpring Plate
-
16M36108 RivetRivet
-
17605250583 RH MirrorRH Mirror
-
17605250582 LH MirrorLH Mirror
-
18605350577 RH AdaptorRH Adaptor
-
18605350576 LH AdaptorLH Adaptor
-
19M20037 WasherWasher
-
20232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
21414510200 Reflector, AmberReflector, Amber
-
22M36489 RivetRivet
-
23M21060 Reflector, White. EuropeReflector, White. Europe
-
24415040700 Horn. EuropeHorn. Europe
-
25414975300 RH Rear Footrest. EuropeRH Rear Footrest. Europe
-
25414975400 LH Rear Footrest. EuropeLH Rear Footrest. Europe
-
26M40870 Hex Tapping Screw. EuropeHex Tapping Screw. Europe
