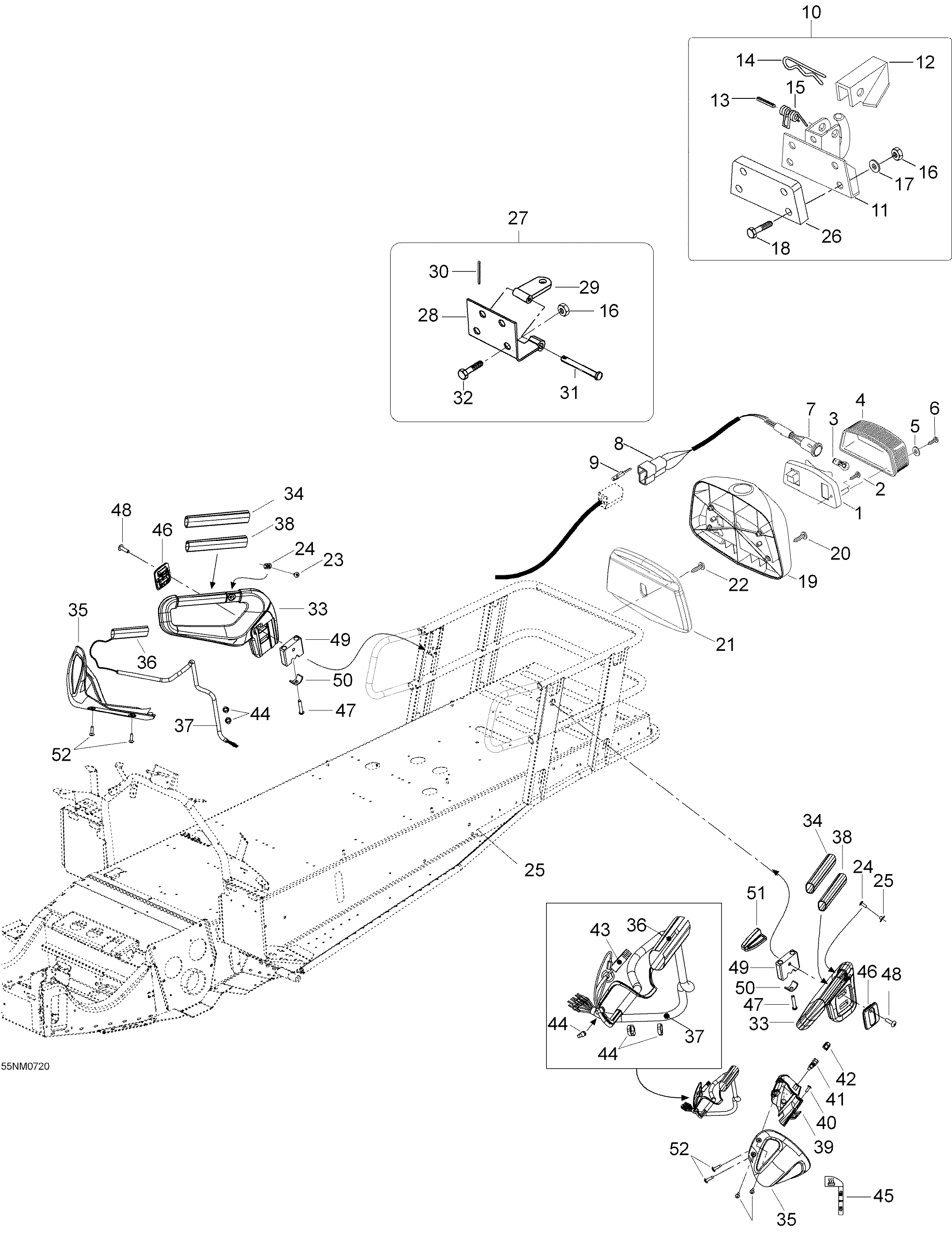

09- Luggage Rack для BRP Ski-Doo Expedition TUV 600 H.O. SDI - 2007
-
№АртикулНазвание
-
1515175397 Lamp HousingLamp Housing
-
2M40207 Screw 4.8 X 45Screw 4.8 X 45
-
3410504100 Tail Light BulbTail Light Bulb
-
4414513700 LensLens
-
5414516400 WasherWasher
-
6209632540 Phillips Tapping Screw M3.9 X 25Phillips Tapping Screw M3.9 X 25
-
7515175852 AdapterAdapter
-
8M42606 Connector HousingConnector Housing
-
9M42614 Female ConnectorFemale Connector
-
10M5344156 Hook Hitch Kit. Includes 10 to 17, EuropeHook Hitch Kit. Includes 10 to 17, Europe
-
11M5344208 Bracket Hitch. EuropeBracket Hitch. Europe
-
12M5440767 Hitch Protector. EuropeHitch Protector. Europe
-
13M41012 Retainer Pin. EuropeRetainer Pin. Europe
-
14M41029 Pin. EuropePin. Europe
-
15M545693 Spring. EuropeSpring. Europe
-
16232581414 Hex Elastic Nut M8. EuropeHex Elastic Nut M8. Europe
-
17234081410 Flat Washer 8 mm. EuropeFlat Washer 8 mm. Europe
-
18207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
19605251392 Mold Tail LampMold Tail Lamp
-
20M40206 Screw 4.8 X 25Screw 4.8 X 25
-
21605251963 BaseBase
-
22M40322 ScrewScrew
-
23250000129 Truss Torx Screw M6 X 16Truss Torx Screw M6 X 16
-
24293100003 Nut M6Nut M6
-
25572051500 CapCap
-
26605351510 SpacerSpacer
-
28M5344151 PlatePlate
-
29M548745 Hitch PlateHitch Plate
-
30560309200 Pin-RetainerPin-Retainer
-
31M41031 PinPin
-
32M40336 Screw M8 X 20Screw M8 X 20
-
33510004367 RH HandleRH Handle
-
33510004368 LH HandleLH Handle
-
34510004449 Handle GripHandle Grip
-
35510004415 RH DeflectorRH Deflector
-
35510004416 LH DeflectorLH Deflector
-
36515176393 HeaterHeater
-
37515175506 TubingTubing
-
38510004709 Handle ReinforforcementHandle Reinforforcement
-
39510004566 Switch HousingSwitch Housing
-
40250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
41510004413 Rocker SwitchRocker Switch
-
42510004414 Protector SwitchProtector Switch
-
43515176241 LH Handle HarnessLH Handle Harness
-
44414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
45516002835 Handle Heater DecalHandle Heater Decal
-
46510004405 MouldingMoulding
-
47250000220 Socket Head Screw M8x45Socket Head Screw M8x45
-
48250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
49510004530 Handle LinkHandle Link
-
50510004565 Handle ClampHandle Clamp
-
51510004419 GripGrip
-
52250000199 Screw 25mmScrew 25mm
