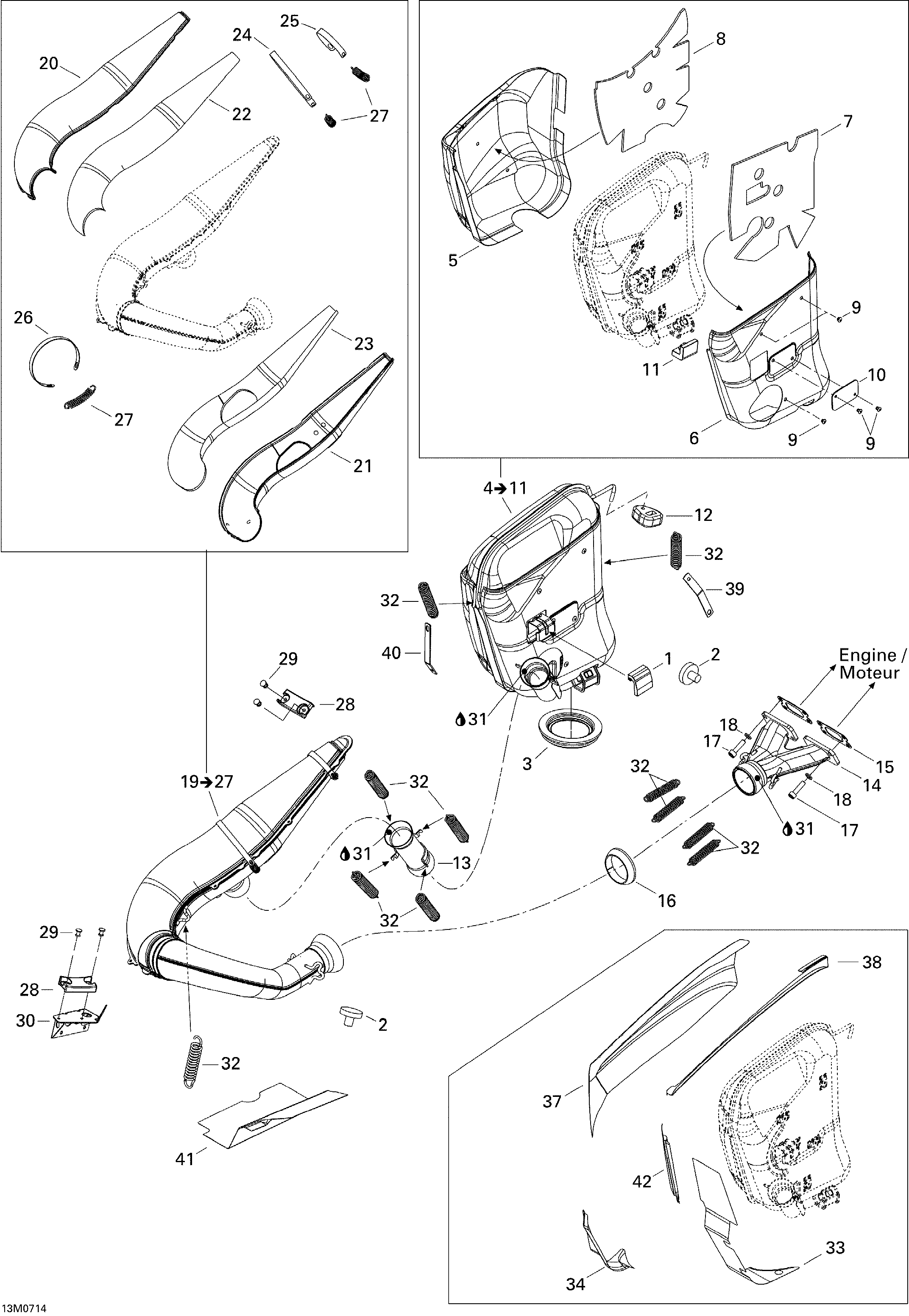

01- Exhaust System для BRP Ski-Doo Freestyle Back Country 550F - 2007
-
№АртикулНазвание
-
1514053372 Upper StopperUpper Stopper
-
2514053654 Rubber BumperRubber Bumper
-
3514054240 Exhaust GrommetExhaust Grommet
-
4514054059 Muffler Ass'yMuffler Ass'y
-
5514054100 RH DeflectorRH Deflector
-
6514053843 Heat Deflector LHHeat Deflector LH
-
7514053844 Insulating Wool LHInsulating Wool LH
-
8514053947 Insulating Wool RHInsulating Wool RH
-
9390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
10514053429 ReinforcementReinforcement
-
11514054223 Lower StopperLower Stopper
-
12514052704 Rubber BumperRubber Bumper
-
13514054249 Exhaust ElbowExhaust Elbow
-
14420673065 Exhaust ManifoldExhaust Manifold
-
15420831849 Gasket 1.0 mmGasket 1.0 mm
-
16514053644 Exhaust GasketExhaust Gasket
-
17205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
18514053837 WasherWasher
-
19514054063 Tuned Pipe Ass'y. Includes 19 to 27Tuned Pipe Ass'y. Includes 19 to 27
-
20514054208 Rear Upper Half-enveloppeRear Upper Half-enveloppe
-
21514054209 Rear Lower Half-enveloppeRear Lower Half-enveloppe
-
22514054244 Upper Insulating WoolUpper Insulating Wool
-
23514054243 Lower Insulating WoolLower Insulating Wool
-
24514053502 Retaining StrapRetaining Strap
-
25514053491 Retaining StrapRetaining Strap
-
26514053498 Retaining StrapRetaining Strap
-
27514053643 SpringSpring
-
28514053352 BumperBumper
-
29293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
30514054131 SupportSupport
-
31293800090 Sealant, Loctite, 80 mlSealant, Loctite, 80 ml
-
32415107100 SpringSpring
-
33514053560 Reflective SheetReflective Sheet
-
34514053622 Reflective SheetReflective Sheet
-
37514054291 Reflective SheetReflective Sheet
-
38514054292 Reflective SheetReflective Sheet
-
39514053725 Spring BracketSpring Bracket
-
40514053393 Spring BracketSpring Bracket
-
41514054133 Reflective SheetReflective Sheet
-
42514054012 Reflective SheetReflective Sheet
