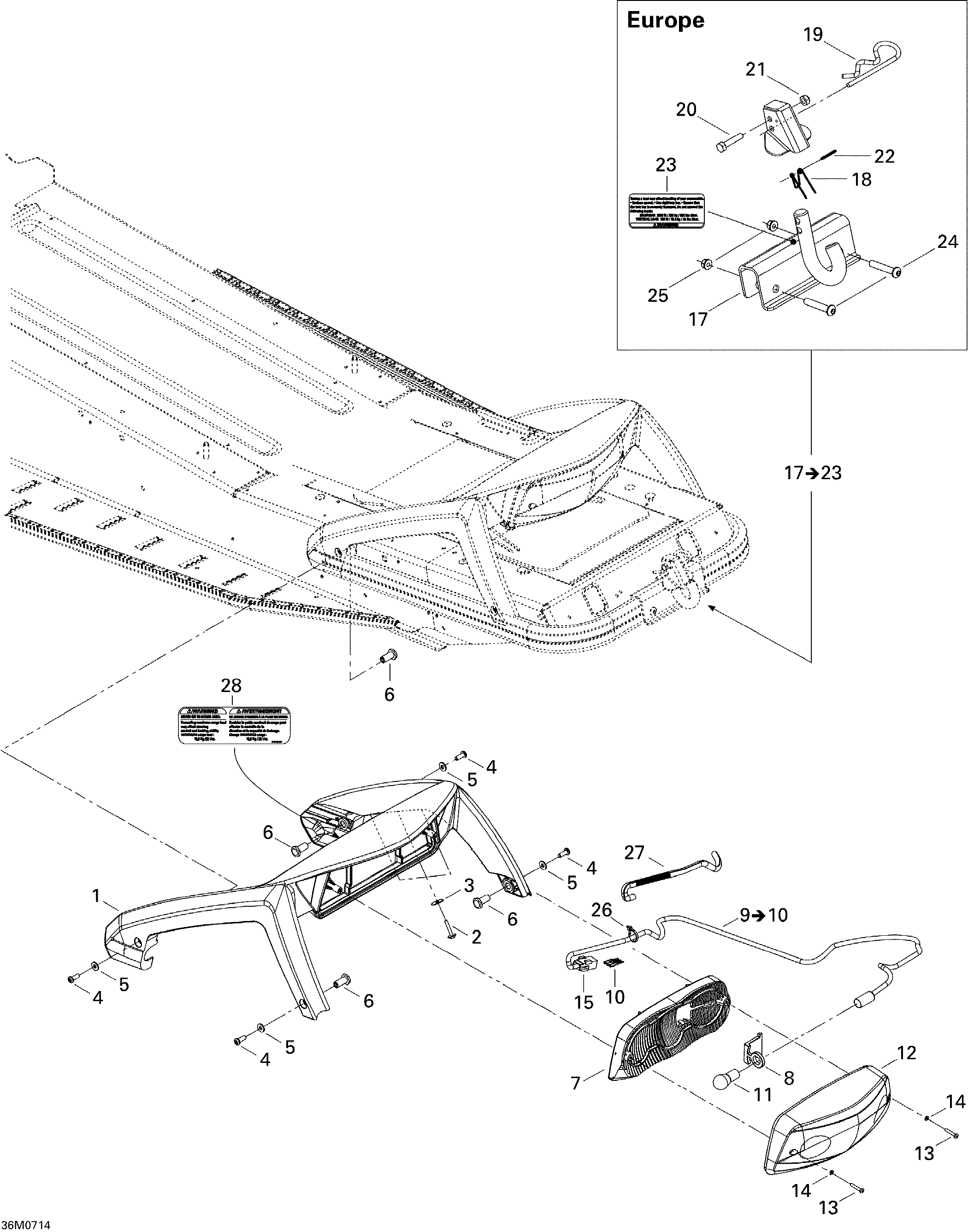

09- Luggage Rack для BRP Ski-Doo Freestyle Back Country 550F - 2007
-
№АртикулНазвание
-
1511000425 Luggage RackLuggage Rack
-
2250000202 Self Tapping Screw #8 X 5/8Self Tapping Screw #8 X 5/8
-
3250200040 Flat WasherFlat Washer
-
4250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
5250200039 Flat WasherFlat Washer
-
6511000398 InsertInsert
-
7510004442 ReflectorReflector
-
8511000431 Bulb SupportBulb Support
-
9511000466 Bulb Socket. Includes 9 to 10Bulb Socket. Includes 9 to 10
-
10515175232 Male TerminalMale Terminal
-
11410504100 Tail Light BulbTail Light Bulb
-
12511000315 LensLens
-
13209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
14414516400 WasherWasher
-
15515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
17511000509 Hitch Ass'y. EUR, Includes 17 to 23Hitch Ass'y. EUR, Includes 17 to 23
-
18517152800 SpringSpring
-
19114045200 Hair PinHair Pin
-
20207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
22732804000 Spring Pin M3 X 24Spring Pin M3 X 24
-
23516003037 Security LabelSecurity Label
-
24207661644 Hex. Flanged Screw M6 X 16. EURHex. Flanged Screw M6 X 16. EUR
-
25233281414 Hex Flanged Elastic Nut M8. EURHex Flanged Elastic Nut M8. EUR
-
26293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
27515175442 Tubing 6 mmTubing 6 mm
-
28516002960 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
