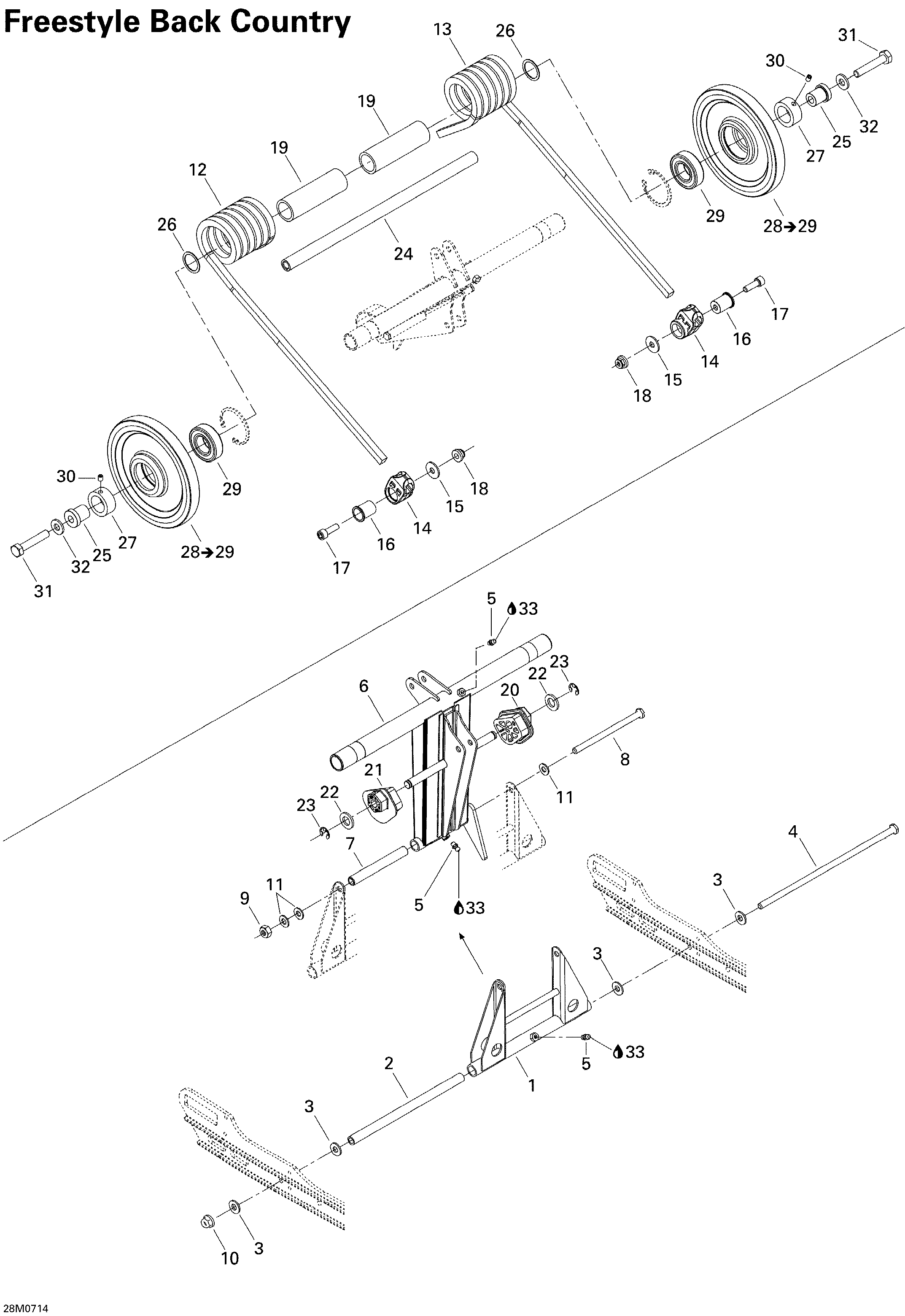

08- Rear Arm для BRP Ski-Doo Freestyle Back Country 550F - 2007
-
№АртикулНазвание
-
1503191372 Pivot ArmPivot Arm
-
2503189156 Pivot Arm AxlePivot Arm Axle
-
3503189157 WasherWasher
-
4732601198 Long Bolt M8Long Bolt M8
-
5408200700 Grease FittingGrease Fitting
-
6503191057 Rear ArmRear Arm
-
7503144300 Upper Axle, Pivot ArmUpper Axle, Pivot Arm
-
8732601197 Short Bolt M8Short Bolt M8
-
9232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
10233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
11234081410 Flat Washer 8 mmFlat Washer 8 mm
-
12503190777 RH Spring, SquareRH Spring, Square
-
13503190779 LH Spring, SquareLH Spring, Square
-
14503191539 Spring SupportSpring Support
-
15234082410 Flat Washer 8 mmFlat Washer 8 mm
-
16503190754 Retainer CushionRetainer Cushion
-
17205082544 Socket Screw M8 X 25Socket Screw M8 X 25
-
18233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
19503190333 BushingBushing
-
20503190023 LH Cam AdjusterLH Cam Adjuster
-
21503190022 RH Cam AdjusterRH Cam Adjuster
-
22503189148 WasherWasher
-
23293370013 E-CirclipE-Circlip
-
24503190387 ShaftShaft
-
25503190422 BushingBushing
-
26503190328 WasherWasher
-
27503168800 Retaining RingRetaining Ring
-
28503191359 Wheel 165. Includes 28 to 29Wheel 165. Includes 28 to 29
-
29503191149 Ball BearingBall Bearing
-
30206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
31207205544 Hex Screw M10 X 55, Scotch GripHex Screw M10 X 55, Scotch Grip
-
32732900049 WasherWasher
-
33219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
