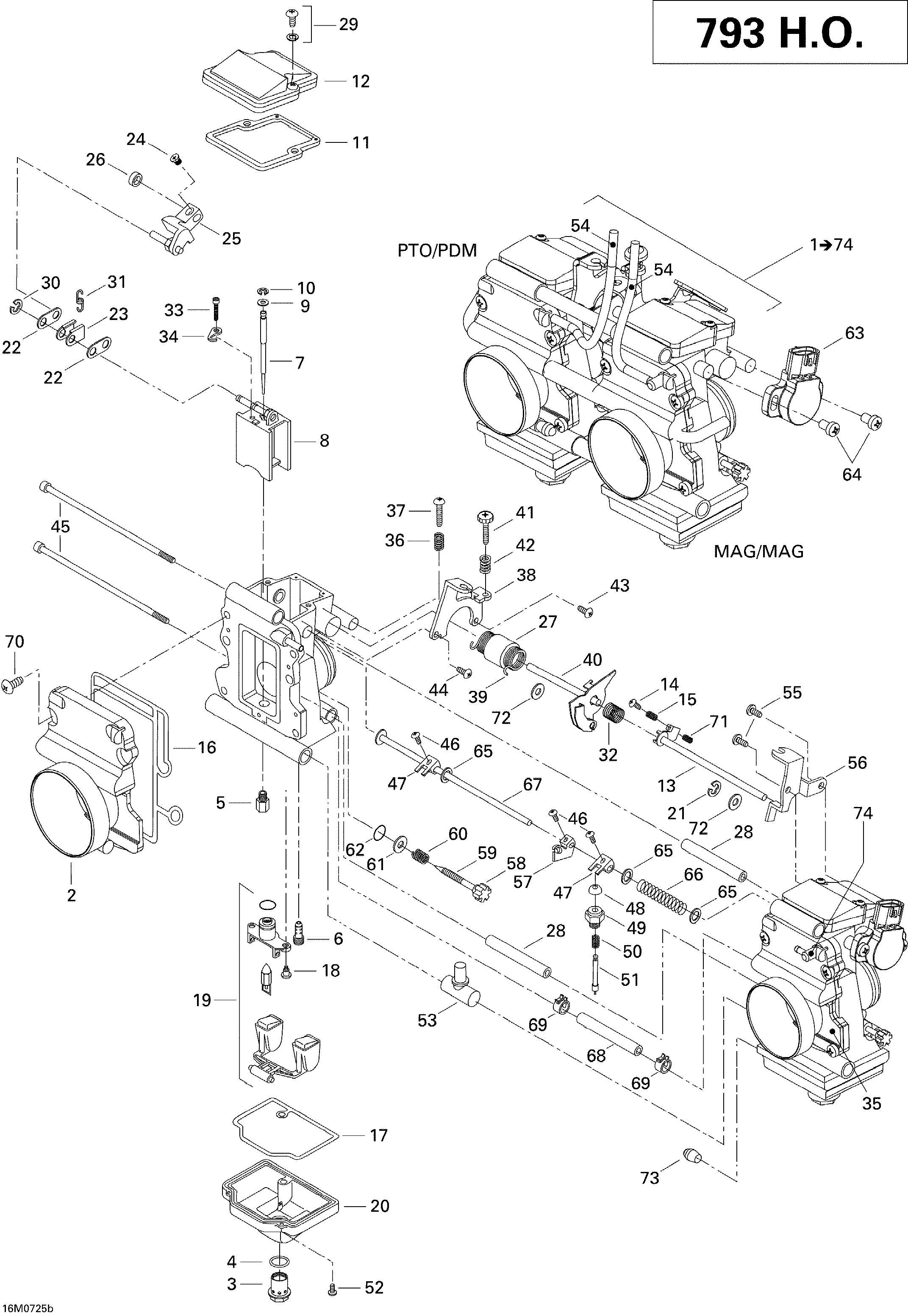

02- Carburetor для BRP Ski-Doo GSX LTD 800 HO PTEK - 2007
-
№АртикулНазвание
-
1403138778 Carburetor Kit TM40-B322. Includes 1 to 74Carburetor Kit TM40-B322. Includes 1 to 74
-
3404161955 Drain ScrewDrain Screw
-
4404161945 O-RingO-Ring
-
5404108100 Main Jet 440Main Jet 440
-
6404161944 Pilot Jet 17.5Pilot Jet 17.5
-
7404162092 Needle J8-9EGI05-58Needle J8-9EGI05-58
-
8404162020 Valve Piston 2.0Valve Piston 2.0
-
9404137600 PackingPacking
-
10404152200 E-RingE-Ring
-
11404161940 GasketGasket
-
12404161939 CoverCover
-
13404162077 Throttle ShaftThrottle Shaft
-
14404136700 ScrewScrew
-
15404135300 Adjustment SpringAdjustment Spring
-
16404161935 O-RingO-Ring
-
17404161961 O-RingO-Ring
-
18404161933 ScrewScrew
-
19404161932 FloatFloat
-
20404161960 Body Float Ass'yBody Float Ass'y
-
21707200027 E-RingE-Ring
-
22404162007 PlatePlate
-
23404162008 HolderHolder
-
24404161928 ScrewScrew
-
25404162009 LeverLever
-
26404161926 RingRing
-
27404161925 RingRing
-
28404161924 RingRing
-
29404161923 ScrewScrew
-
30404138300 E-RingE-Ring
-
31404162010 SpringSpring
-
32404162011 SpringSpring
-
33404161920 ScrewScrew
-
34404161919 PlatePlate
-
35404162021 Funnel, MAGFunnel, MAG
-
36404161918 Spring TM40-98, PTOSpring TM40-98, PTO
-
37404161917 Screw TM40-98, PTOScrew TM40-98, PTO
-
38404162022 Bracket, PTOBracket, PTO
-
39404162014 SpringSpring
-
40404162015 Throttle ShaftThrottle Shaft
-
41404137500 Adjustment Screw TM40-98, PTOAdjustment Screw TM40-98, PTO
-
42404161913 Spring TM40-98, PTOSpring TM40-98, PTO
-
43404161912 Screw TM40-98, PTOScrew TM40-98, PTO
-
44404136100 Screw TM40-98, PTOScrew TM40-98, PTO
-
45404161911 ScrewScrew
-
46404161910 ScrewScrew
-
47404161909 LeverLever
-
48404140000 CapCap
-
49404136900 Guide HolderGuide Holder
-
50404161908 SpringSpring
-
51404161907 Plunger Ass'yPlunger Ass'y
-
52404161906 ScrewScrew
-
53404161905 NippleNipple
-
54404162001 HoseHose
-
55404161903 ScrewScrew
-
56404162078 BracketBracket
-
57404161901 Starter LeverStarter Lever
-
58404161899 CapCap
-
59404161898 AdjusterAdjuster
-
60404161897 SpringSpring
-
61404161896 WasherWasher
-
62404161895 PackingPacking
-
63404162079 Sensor Ass'ySensor Ass'y
-
64404162080 ScrewScrew
-
65404161894 PackingPacking
-
66404103500 SpringSpring
-
67404161981 ShaftShaft
-
68404161956 HoseHose
-
69404161957 ClipClip
-
70404138800 ScrewScrew
-
71404135400 SpringSpring
-
72270500118 PackingPacking
-
73270500095 CapCap
-
74404128800 Elbow 90°Elbow 90°
