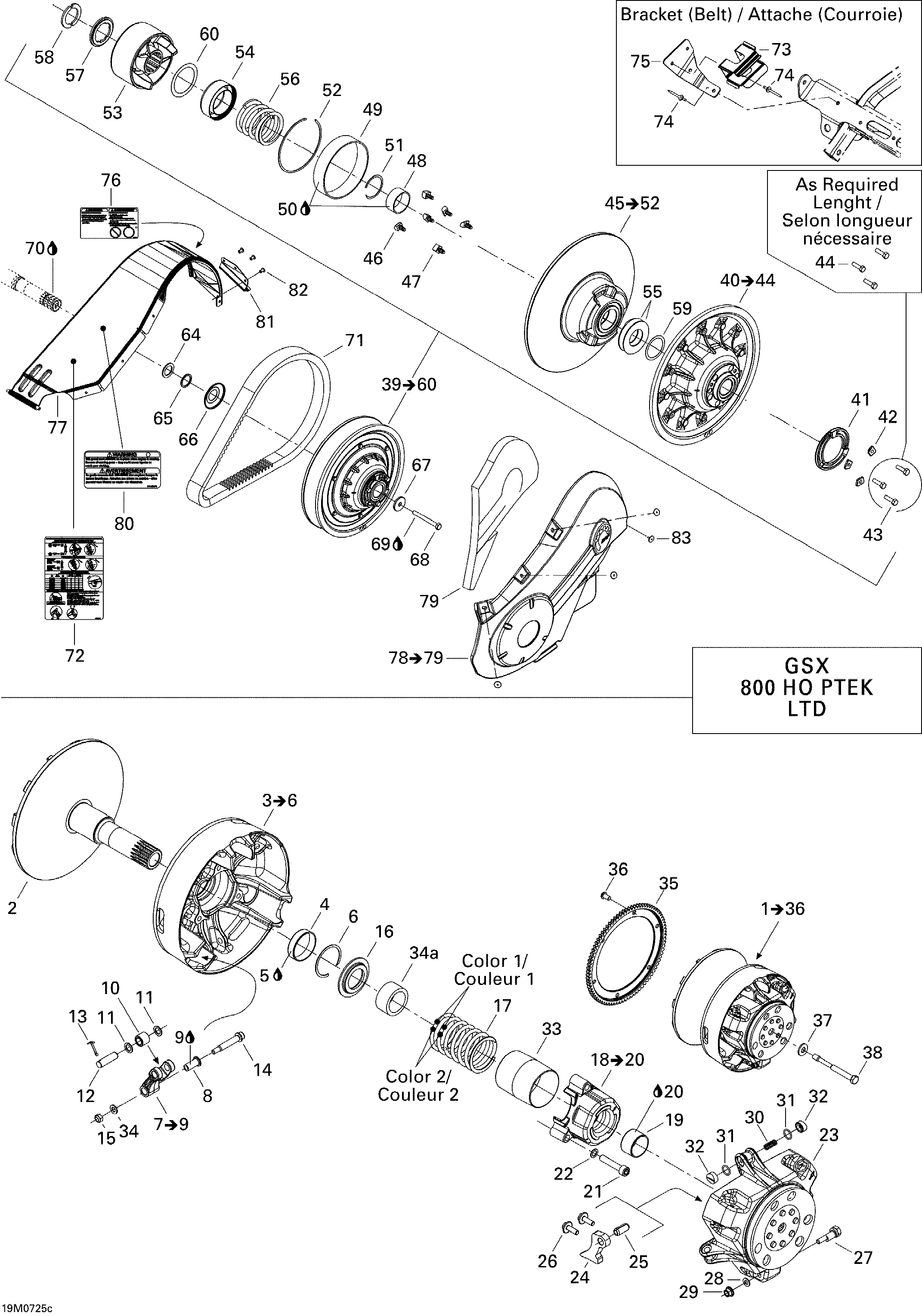

05- Pulley System 800HO для BRP Ski-Doo GSX LTD 800 HO PTEK - 2007
-
№АртикулНазвание
-
2417222904 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222171 Sliding Flange Ass'y. Includes 3 to 6Sliding Flange Ass'y. Includes 3 to 6
-
4417222758 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'y. Includes 7 to 9Lever Ass'y. Includes 7 to 9
-
8417222633 BushingBushing
-
9413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
10417222762 RollerRoller
-
11417004302 Stopper WasherStopper Washer
-
12417222594 PinPin
-
13732958001 Cotter PinCotter Pin
-
14417222028 Screw Ass'yScrew Ass'y
-
15232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
16417222312 Spring SeatSpring Seat
-
17414817700 Spring, Blue/greenSpring, Blue/green
-
18417007500 Spring Cover Ass'y. Includes 18 to 20Spring Cover Ass'y. Includes 18 to 20
-
19417009204 BushingBushing
-
20413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
21205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
22250200009 Lock Washer 8 mmLock Washer 8 mm
-
23417222213 Governor CupGovernor Cup
-
24417222546 Ramp 414Ramp 414
-
25250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
26250000059 Hex Flanged Scew M6 X 18Hex Flanged Scew M6 X 18
-
27417222955 Calibration ScrewCalibration Screw
-
28417005600 WasherWasher
-
29233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
30417005700 SpringSpring
-
31732401030 O-RingO-Ring
-
32417222362 Slider ShoeSlider Shoe
-
33417009205 GuardGuard
-
34234061410 Flat Washer 6 mmFlat Washer 6 mm
-
34a417222826 BushingBushing
-
35417222829 Ring GearRing Gear
-
36250000243 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
37250200006 Washer-spring Conical 14 mmWasher-spring Conical 14 mm
-
38417120000 Drive Pulley BoltDrive Pulley Bolt
-
40417126807 Fixed Flange Ass'y. Includes 40 to 44Fixed Flange Ass'y. Includes 40 to 44
-
41415005800 Adjustment RingAdjustment Ring
-
42415005900 Adjustment ShimAdjustment Shim
-
43207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
44207162244 Hex Screw M6 X 22Hex Screw M6 X 22
-
45417126909 Sliding Flange Ass'y. Includes 45 to 52Sliding Flange Ass'y. Includes 45 to 52
-
46417126373 Rear Cam Slider ShoeRear Cam Slider Shoe
-
47417126374 Front Cam Slider ShoeFront Cam Slider Shoe
-
48417126901 BushingBushing
-
49417126902 BushingBushing
-
50413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
51371911200 CirclipCirclip
-
52417126878 CirclipCirclip
-
53417126721 Cam Ass'YCam Ass'Y
-
54417126381 GuardGuard
-
55504099600 Stopper WasherStopper Washer
-
56417126688 Spring, GreenSpring, Green
-
57417126733 SpacerSpacer
-
58417126734 Half KeyHalf Key
-
59504112300 ShimShim
-
60417126322 Swivel AbutmentSwivel Abutment
-
64417300252 SpacerSpacer
-
64417300265 SpacerSpacer
-
65504112000 ShimShim
-
66417300238 ProtectorProtector
-
67517302322 Strength WasherStrength Washer
-
68207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
69293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
70293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
71417300166 Drive BeltDrive Belt
-
72516002616 Decal, Suspension AdjustmentDecal, Suspension Adjustment
-
73517281905 BracketBracket
-
74390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
75417300282 BracketBracket
-
76516002674 Emergency Starting LabelEmergency Starting Label
-
77417300213 Belt GuardBelt Guard
-
78417300301 Side Protector Ass'y. Includes 78 to 79Side Protector Ass'y. Includes 78 to 79
-
79417300246 FoamFoam
-
80516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
81417300216 Belt Guard BracketBelt Guard Bracket
-
82390909200 Avex RivetAvex Rivet
-
83293150103 Pop RivetPop Rivet
