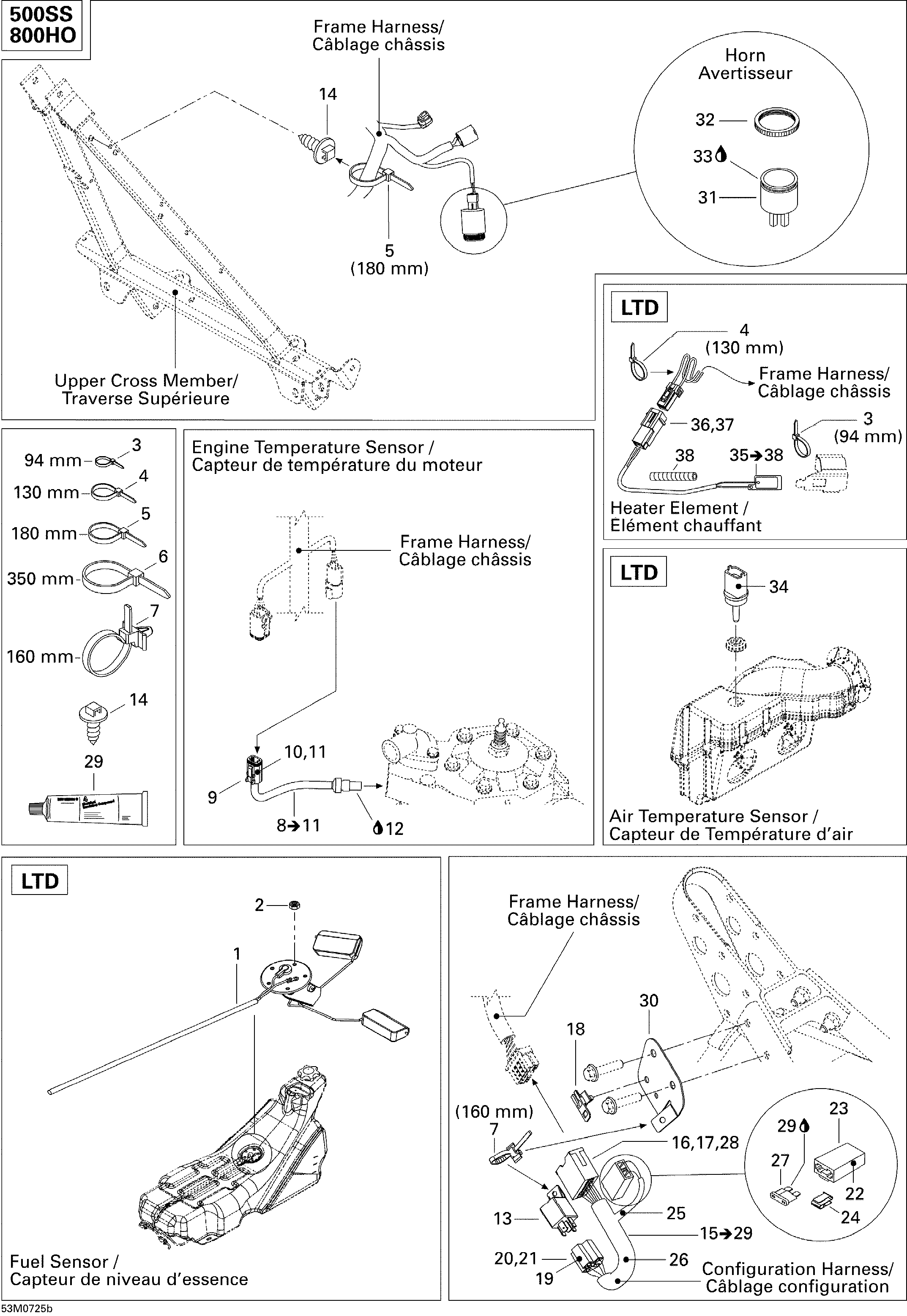

10- Electrical Accessories 800 HO для BRP Ski-Doo GSX LTD 800 HO PTEK - 2007
-
№АртикулНазвание
-
1515175522 Fuel SensorFuel Sensor
-
2232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
3293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
4293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
5414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
6293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
7293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
8515176043 Temperature Sensor. Includes 8 to 11Temperature Sensor. Includes 8 to 11
-
9278000739 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
10278000632 Female TerminalFemale Terminal
-
11515175677 Male Wedge, 4 CircuitsMale Wedge, 4 Circuits
-
12293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
13410113200 RelayRelay
-
14293730018 Mount DartMount Dart
-
15515175721 Configuration Harness Ass'y. Includes 15 to 29Configuration Harness Ass'y. Includes 15 to 29
-
16515175232 Male TerminalMale Terminal
-
17515175273 Male TerminalMale Terminal
-
18515175283 Housing SupportHousing Support
-
19409209900 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
20561503100 Female TerminalFemale Terminal
-
21561503100 Female TerminalFemale Terminal
-
22409011600 Female TerminalFemale Terminal
-
23409004000 Fuse HolderFuse Holder
-
24409014200 ClipClip
-
25515175442 Tubing 6 mmTubing 6 mm
-
26409901800 Tubing 13 mmTubing 13 mm
-
27278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
28515175720 Male Terminal Housing, 11 CircuitsMale Terminal Housing, 11 Circuits
-
29293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
30515176020 Harness SupportHarness Support
-
31515176035 HornHorn
-
32414805101 Plastic NutPlastic Nut
-
33296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
34270600000 Air Temperature SensorAir Temperature Sensor
-
35515176473 Heater Element Ass'y. Includes 35 to 38Heater Element Ass'y. Includes 35 to 38
-
36515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
37515175232 Male TerminalMale Terminal
-
38515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
