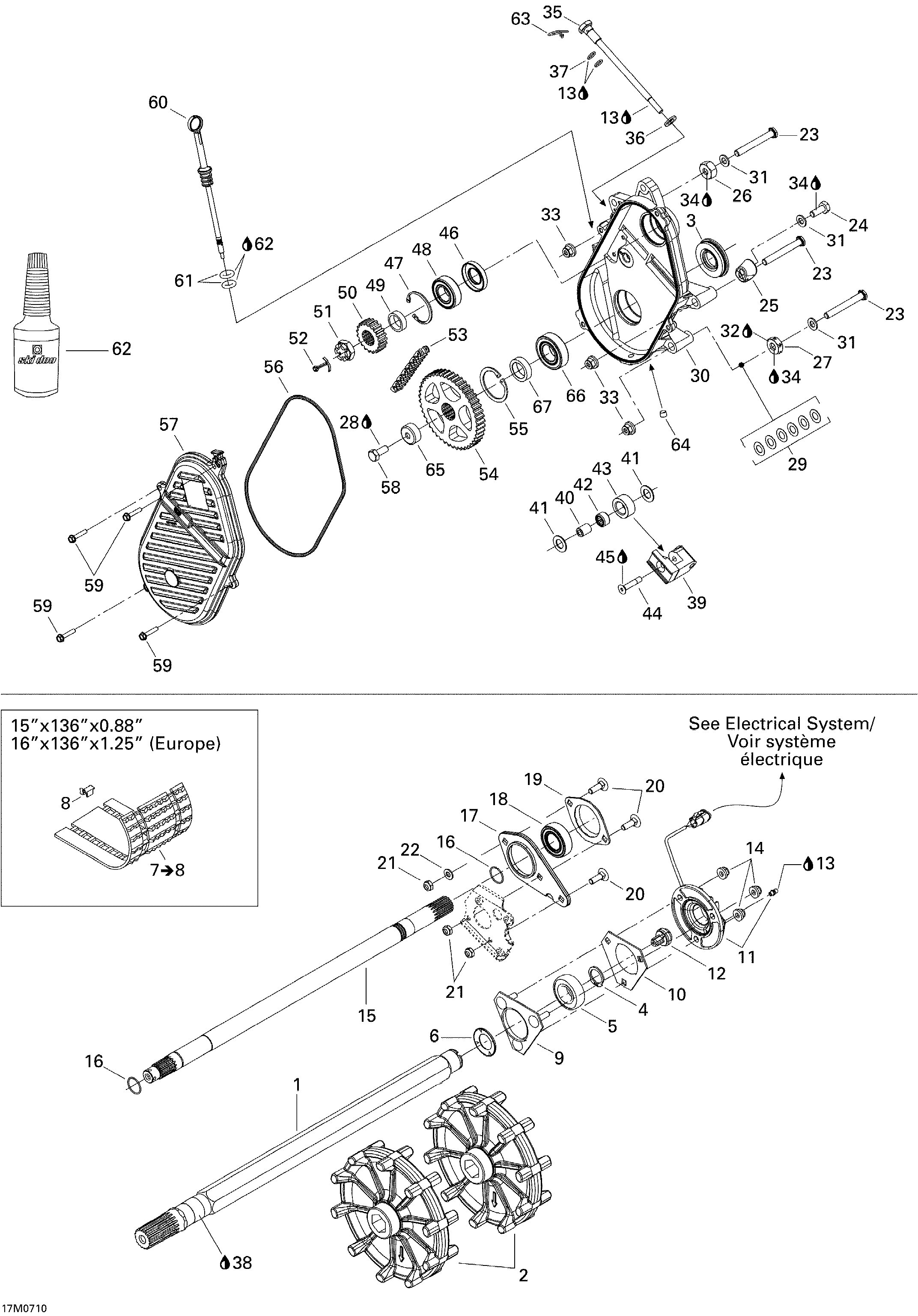

05- Drive System для BRP Ski-Doo GTX 550F - 2007
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504151781 Sprocket, 9 TeethSprocket, 9 Teeth
-
3504151918 Oil Seal Ass'yOil Seal Ass'y
-
4371910200 CirclipCirclip
-
5504152009 Ball BearingBall Bearing
-
6501017400 Bearing ProtectorBearing Protector
-
7504152456 Track 16'' X 136'' X 1.25'' Ass'y. Includes 7 to 8, EuropeTrack 16'' X 136'' X 1.25'' Ass'y. Includes 7 to 8, Europe
-
7504152489 Track 15'' X 136'' X 0.88'' Ass'y. Includes 7 to 8Track 15'' X 136'' X 0.88'' Ass'y. Includes 7 to 8
-
8504152410 GuideGuide
-
9504151860 Bearing HousingBearing Housing
-
10501025000 FlangeFlange
-
11504152345 Rotation SensorRotation Sensor
-
12504152040 Magnetic AdaptorMagnetic Adaptor
-
13219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
14233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
15504152292 Counter ShaftCounter Shaft
-
16371910000 CirclipCirclip
-
17504151968 SpacerSpacer
-
18504152535 Ball BearingBall Bearing
-
19501026900 FlangeFlange
-
20207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
21232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
22234081410 Flat Washer 8 mmFlat Washer 8 mm
-
23250000151 Hex Screw M10 X 80Hex Screw M10 X 80
-
24207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
25504152252 SpacerSpacer
-
26504083800 SpacerSpacer
-
27504152237 SpacerSpacer
-
28293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
29504073700 WasherWasher
-
30504152481 ChaincaseChaincase
-
31503175800 WasherWasher
-
32293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
33233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
34293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
35732601314 Adjustment ScrewAdjustment Screw
-
36234001410 Flat Washer 10 mmFlat Washer 10 mm
-
37414484400 O-RingO-Ring
-
38219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
39504151951 Chain TensionerChain Tensioner
-
40504080200 SpacerSpacer
-
41504080300 WasherWasher
-
42405403000 Needle BearingNeedle Bearing
-
43414531300 RollerRoller
-
44732601144 ScrewScrew
-
45293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
46504151927 SealSeal
-
47371901700 CirclipCirclip
-
48504152006 Ball BearingBall Bearing
-
49504152587 ShimShim
-
50504096200 Sprocket, 21 TeethSprocket, 21 Teeth
-
50504152031 Sprocket, 19 Teeth. EuropeSprocket, 19 Teeth. Europe
-
51250000012 Hex Castle Nut M20 X 1.5Hex Castle Nut M20 X 1.5
-
52371006300 Pin CotterPin Cotter
-
53504151830 Drive Chain, 72 Links. EuropeDrive Chain, 72 Links. Europe
-
53504151857 Drive Chain, 74 LinksDrive Chain, 74 Links
-
54504148500 43 Teeth Sprocket, Large. Europe43 Teeth Sprocket, Large. Europe
-
54504152238 45 Tooth Sprocket45 Tooth Sprocket
-
55415064300 Circlip, InteriorCirclip, Interior
-
56415046400 O-RingO-Ring
-
57504152471 Chaincase CoverChaincase Cover
-
58207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
59210263080 Hex Screw M6 X 30Hex Screw M6 X 30
-
60504151703 Filler Cap Ass'yFiller Cap Ass'y
-
61414969400 O-RingO-Ring
-
62413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
63414575600 Hair PinHair Pin
-
64504151921 Plug 1/8''-27Plug 1/8''-27
-
65504152460 CapCap
-
66504152005 Ball BearingBall Bearing
-
67504152649 ShimShim
