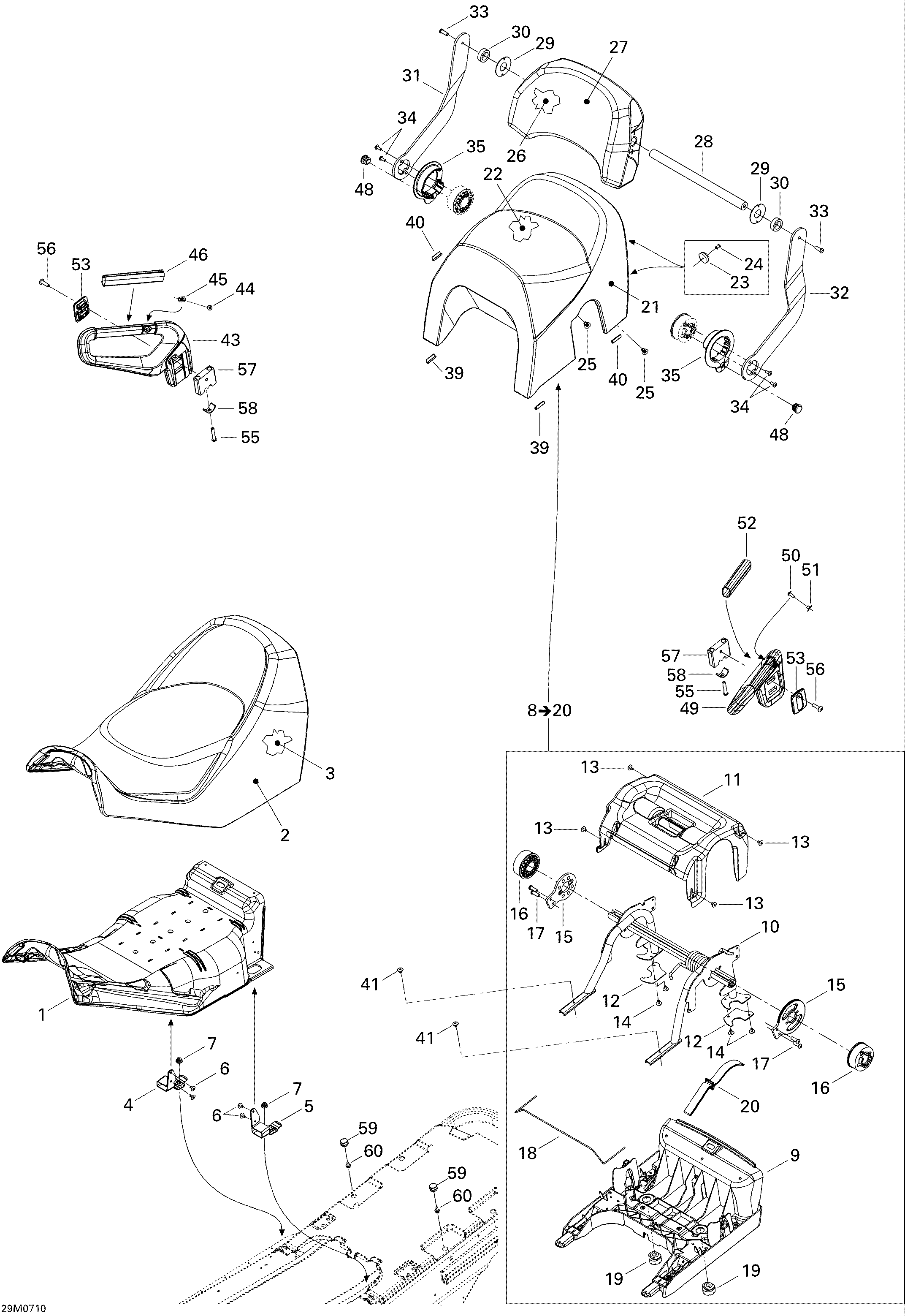

09- Seat FAN для BRP Ski-Doo GTX 550F - 2007
-
№АртикулНазвание
-
1510004353 Front Seat Base. FANFront Seat Base. FAN
-
2510004549 Front Seat Cover, black. FANFront Seat Cover, black. FAN
-
3510004355 Front Seat Foam. FANFront Seat Foam. FAN
-
4510004463 RH Fixation Plate, Black. FANRH Fixation Plate, Black. FAN
-
5510004464 LH Fixation Plate, Black. FANLH Fixation Plate, Black. FAN
-
6293150104 Pop Rivet 3/16''. FANPop Rivet 3/16''. FAN
-
7233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
9510004433 Seat Base. FANSeat Base. FAN
-
10510004569 Support. FANSupport. FAN
-
11510004423 Foam Support. FANFoam Support. FAN
-
12510004500 Wear Plate. FANWear Plate. FAN
-
13293150104 Pop Rivet 3/16''. FANPop Rivet 3/16''. FAN
-
14293150108 Pop Rivet 3/16''. FANPop Rivet 3/16''. FAN
-
15510004535 Link Plate. FANLink Plate. FAN
-
16510004536 Spacer. FANSpacer. FAN
-
17205982586 Socket Head Screw S.grip, M8x1.25x25. FANSocket Head Screw S.grip, M8x1.25x25. FAN
-
18510004421 Anchor Spring. FANAnchor Spring. FAN
-
19708000323 Rubber Bumper. FANRubber Bumper. FAN
-
20510004495 Belt. FANBelt. FAN
-
21510004558 Seat Cover, black. FANSeat Cover, black. FAN
-
22510004358 Rear Seat Foam. FANRear Seat Foam. FAN
-
23415018100 Rubber Stopper. FANRubber Stopper. FAN
-
24390400700 Pop Rivet 1/8'', Black. FANPop Rivet 1/8'', Black. FAN
-
25293730010 Dart, Black. FANDart, Black. FAN
-
26510004365 Backrest Foam. FANBackrest Foam. FAN
-
27510004559 Backrest Cover, black. FANBackrest Cover, black. FAN
-
28510004377 Upper Backrest Axle. FANUpper Backrest Axle. FAN
-
29510004379 Washer. FANWasher. FAN
-
30510004378 Rubber Shim. FANRubber Shim. FAN
-
31510004373 RH Arm, Black. FANRH Arm, Black. FAN
-
32510004375 LH Arm, Black. FANLH Arm, Black. FAN
-
33205982586 Socket Head Screw S.grip, M8x1.25x25. FANSocket Head Screw S.grip, M8x1.25x25. FAN
-
34250000198 Torx Truss Screw M8 X 16. FANTorx Truss Screw M8 X 16. FAN
-
35510004384 Spacer. FANSpacer. FAN
-
39510004610 Front Seat Corner. FANFront Seat Corner. FAN
-
40510004611 Rear Seat Corner. FANRear Seat Corner. FAN
-
41293150104 Pop Rivet 3/16''. FANPop Rivet 3/16''. FAN
-
43510004367 RH Handle. FANRH Handle. FAN
-
44250000129 Truss Torx Screw M6 X 16. FANTruss Torx Screw M6 X 16. FAN
-
45293100003 Nut M6. FANNut M6. FAN
-
46510004449 Handle Grip. FANHandle Grip. FAN
-
48517302716 Cap. FANCap. FAN
-
49510004368 LH Handle. FANLH Handle. FAN
-
50250000129 Truss Torx Screw M6 X 16. FANTruss Torx Screw M6 X 16. FAN
-
51293100003 Nut M6. FANNut M6. FAN
-
52510004449 Handle Grip. FANHandle Grip. FAN
-
53510004405 MouldingMoulding
-
55250000220 Socket Head Screw M8x45Socket Head Screw M8x45
-
56250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
57510004530 Handle LinkHandle Link
-
58510004565 Handle ClampHandle Clamp
-
59510004676 Seat StudSeat Stud
-
60207561044 Hex. Flanged Screw S.grip M6 X 10Hex. Flanged Screw S.grip M6 X 10
