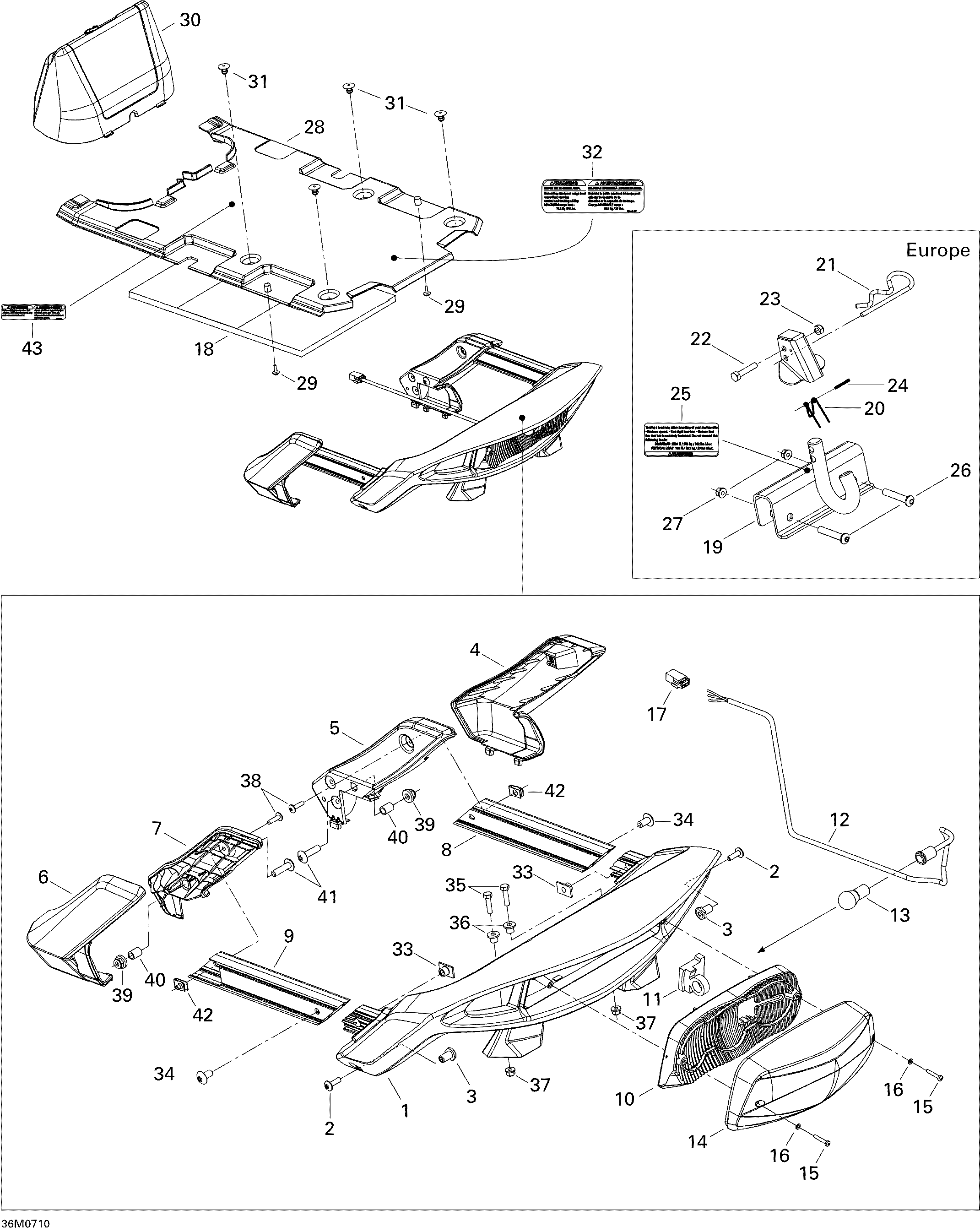

09- Luggage Rack для BRP Ski-Doo GTX 550F - 2007
-
№АртикулНазвание
-
1511000317 RackRack
-
2250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
3511000398 InsertInsert
-
4511000322 RH Outside ArmRH Outside Arm
-
5511000326 RH Inside ArmRH Inside Arm
-
6511000323 LH Outside ArmLH Outside Arm
-
7511000327 LH Inside ArmLH Inside Arm
-
8511000321 RH Side BarRH Side Bar
-
9511000345 LH Side BarLH Side Bar
-
10510004442 ReflectorReflector
-
11511000431 Bulb SupportBulb Support
-
12511000466 Bulb SocketBulb Socket
-
13410504100 Tail Light BulbTail Light Bulb
-
14511000315 LensLens
-
15209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
16414516400 WasherWasher
-
17515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
18511000364 Radiator Cover ShimRadiator Cover Shim
-
19511000509 Hitch Ass'y. Europe, Includes 19 to 27Hitch Ass'y. Europe, Includes 19 to 27
-
20517152800 Spring. EuropeSpring. Europe
-
21114045200 Hair Pin. EuropeHair Pin. Europe
-
22207063544 Hex. Flanged Screw M6 X 35. EuropeHex. Flanged Screw M6 X 35. Europe
-
23232561414 Elastic Stop Nut M6. EuropeElastic Stop Nut M6. Europe
-
24732804000 Spring Pin M3 X 24. EuropeSpring Pin M3 X 24. Europe
-
25516003037 Security Label. EuropeSecurity Label. Europe
-
26205484546 Socket Head Screw M8 X 45. EuropeSocket Head Screw M8 X 45. Europe
-
27233281414 Hex Flanged Elastic Nut M8. EuropeHex Flanged Elastic Nut M8. Europe
-
28511000440 Radiator CoverRadiator Cover
-
29250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
30511000357 Tank CoverTank Cover
-
31293150103 Pop RivetPop Rivet
-
32516002960 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
-
33511000341 Thread InsertThread Insert
-
34250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
35207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
36511000340 Flanged BushingFlanged Bushing
-
37233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
38250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
39233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
40511000325 BushingBushing
-
41250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
42250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
43516003035 Clenching DecalClenching Decal
