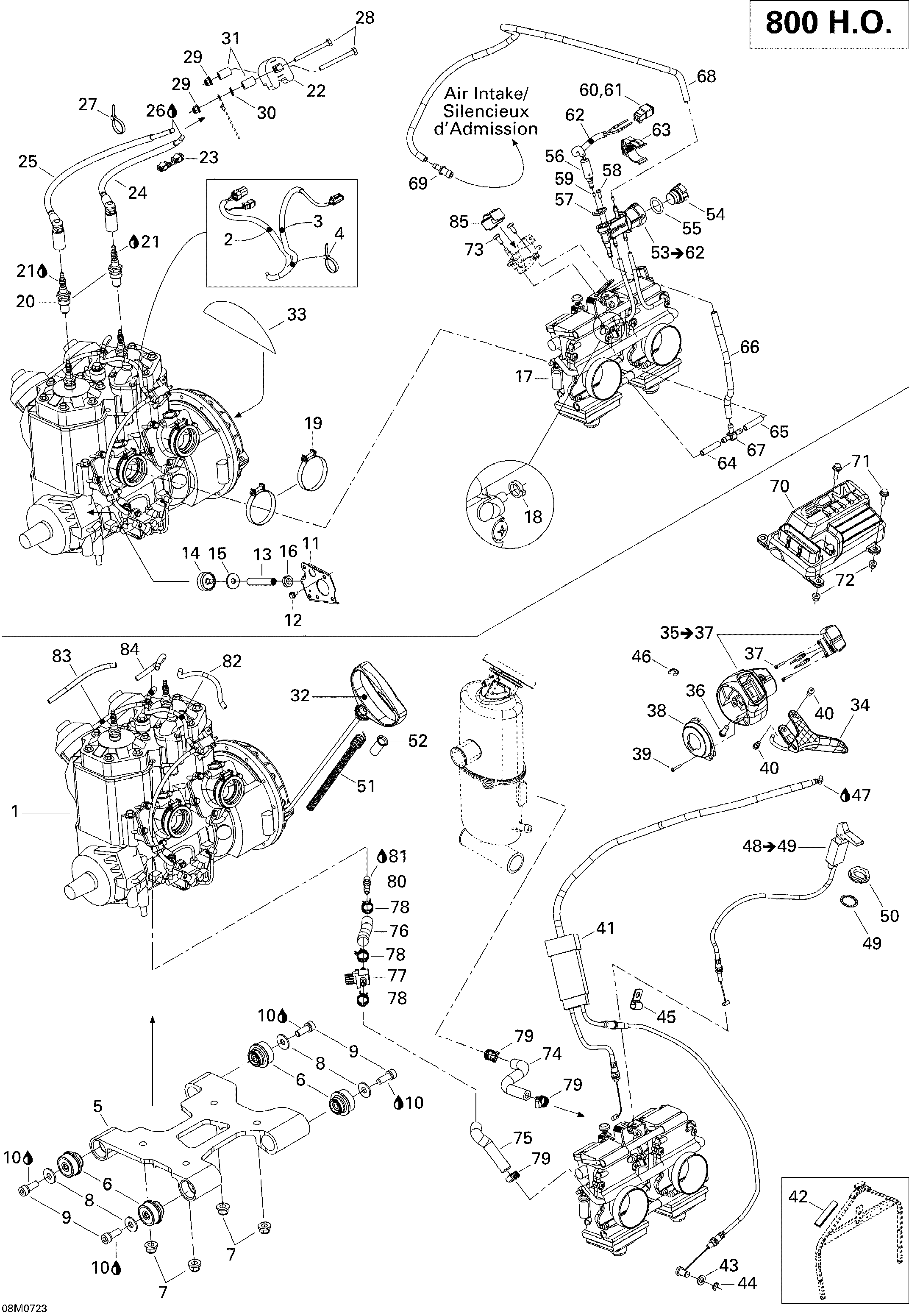

01- Engine X, BLIZZARD для BRP Ski-Doo MX Z Blizzard 800 HO PTEK - 2007
-
№АртикулНазвание
-
1400702633 Engine 793 H.O.Engine 793 H.O.
-
2409901800 Tubing 13 mmTubing 13 mm
-
3415079900 Tubing 10 mmTubing 10 mm
-
4293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
5512060051 Engine SupportEngine Support
-
6512059691 Rubber MountRubber Mount
-
7233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
8506151251 WasherWasher
-
9235202544 Torx Low Head Socket Screw M10 X 25Torx Low Head Socket Screw M10 X 25
-
10413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
11512059840 PlatePlate
-
12207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
13250500007 Stopper ScrewStopper Screw
-
14512059610 StopperStopper
-
15512059057 WasherWasher
-
16232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
17403138778 Carburetor Kit TM40-B322Carburetor Kit TM40-B322
-
18293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
19512059835 Gemi ClampGemi Clamp
-
20415128524 Spark Plug, NGK BR9ECS, 0.8 mmSpark Plug, NGK BR9ECS, 0.8 mm
-
21293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
22512059968 Ignition CoilIgnition Coil
-
23410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
24512059695 Cable Ass'y, 300 mmCable Ass'y, 300 mm
-
25512059696 Cable Ass'y, 375 mmCable Ass'y, 375 mm
-
26293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
27414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
28207066044 Hex Screw M6 X 60Hex Screw M6 X 60
-
29233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
30394001900 External Tooth Lock WasherExternal Tooth Lock Washer
-
31517203200 SpacerSpacer
-
32572084400 Starter GripStarter Grip
-
33512059893 Reflective SheetReflective Sheet
-
34512060202 Throttle Handle Ass'y. X & BlizzardThrottle Handle Ass'y. X & Blizzard
-
35512060121 Housing Throttle Ass'y. Includes 35 to 37Housing Throttle Ass'y. Includes 35 to 37
-
36250000036 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
37250000098 Phillips Screw M2.9 X 16Phillips Screw M2.9 X 16
-
38512059698 CoverCover
-
39250000265 Torx Screw M2.9 X 12Torx Screw M2.9 X 12
-
40732601143 Flanged ScrewFlanged Screw
-
41512060084 Throttle Cable. X & BlizzardThrottle Cable. X & Blizzard
-
42512059750 ProtectorProtector
-
43234081100 Flat Washer 8 mmFlat Washer 8 mm
-
44414753500 CirclipCirclip
-
45293750042 Tie ClampTie Clamp
-
46414274500 CirclipCirclip
-
47293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
48512059266 Choke Cable. Includes 48 to 49Choke Cable. Includes 48 to 49
-
49394103300 Lock Washer, Interior TeethLock Washer, Interior Teeth
-
50512059094 Plastic NutPlastic Nut
-
51512059535 Rope GuideRope Guide
-
52512059536 TubeTube
-
53512060002 Pressure Manifold Ass'y. Includes 53 to 62Pressure Manifold Ass'y. Includes 53 to 62
-
54270600009 CapCap
-
55293300042 O-RingO-Ring
-
56515175701 Solenoid ValveSolenoid Valve
-
57415061600 Solenoid LockSolenoid Lock
-
58241140060 Screw K40 X 10Screw K40 X 10
-
59404161825 Starter JetStarter Jet
-
60515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
61515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
62515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
63512058919 SupportSupport
-
64415080200 Polyurethane HosePolyurethane Hose
-
65415080200 Polyurethane HosePolyurethane Hose
-
66415080200 Polyurethane HosePolyurethane Hose
-
67414729300 T-FittingT-Fitting
-
68415080200 Polyurethane HosePolyurethane Hose
-
69293710035 Straight FittingStraight Fitting
-
70512060310 Calibrated ModuleCalibrated Module
-
71207652044 Flanged Hex Screw M5 X 20Flanged Hex Screw M5 X 20
-
72233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
73208651241 Pan Head Phillips Screw M5 X 12Pan Head Phillips Screw M5 X 12
-
74509000171 Formed HoseFormed Hose
-
75509000407 Hose 8 mmHose 8 mm
-
76509000407 Hose 8 mmHose 8 mm
-
77512059324 Valve 5/16''Valve 5/16''
-
78414655700 Spring ClampSpring Clamp
-
79293650170 Hose ClampHose Clamp
-
80512060196 Male Connector 1/8''-27 NPTMale Connector 1/8''-27 NPT
-
81293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
82409901700 Tubing 9 mmTubing 9 mm
-
83409901700 Tubing 9 mmTubing 9 mm
-
84409901700 Tubing 9 mmTubing 9 mm
-
85512059809 Heating Element BracketHeating Element Bracket
