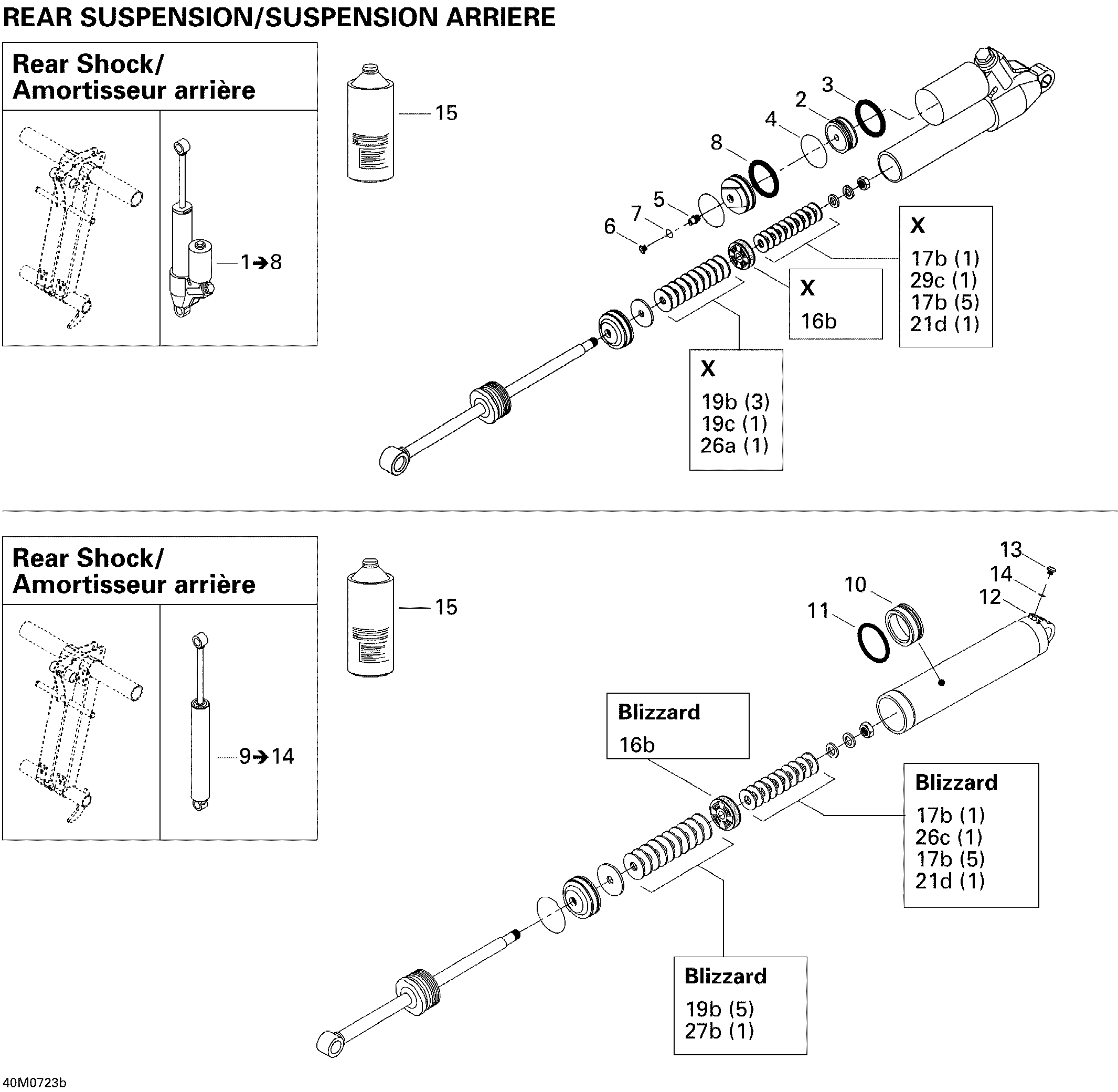

08- Take Apart Shock, Rear 2, BLIZZARD для BRP Ski-Doo MX Z Blizzard 800 HO PTEK - 2007
-
№АртикулНазвание
-
9503191297 Rear Shock. Includes 9 to 14, BlizzardRear Shock. Includes 9 to 14, Blizzard
-
10415097900 Free Piston. BlizzardFree Piston. Blizzard
-
11414888312 O-Ring. BlizzardO-Ring. Blizzard
-
12505070398 Air Valve Ring. BlizzardAir Valve Ring. Blizzard
-
13505070399 Screw. BlizzardScrew. Blizzard
-
14505070400 O-Ring. BlizzardO-Ring. Blizzard
-
15293600035 Shock Oil, 1 LiterShock Oil, 1 Liter
-
16c414888305 Piston (2 X 0.3-2) (C36)Piston (2 X 0.3-2) (C36)
-
16g414888307 Piston (2 X 0.3-6) (C36)Piston (2 X 0.3-6) (C36)
-
17a415039100 Leaf Valve O30 X 0.254 (C36)Leaf Valve O30 X 0.254 (C36)
-
17b414888318 Leaf Valve O30 X 0.203 (C36)Leaf Valve O30 X 0.203 (C36)
-
17c414888319 Leaf Valve O30 X 0.152 (C36)Leaf Valve O30 X 0.152 (C36)
-
19a415039000 Leaf Valve O26 X 0.254 (C36)Leaf Valve O26 X 0.254 (C36)
-
19b414888322 Leaf Valve O26 X 0.203 (C36)Leaf Valve O26 X 0.203 (C36)
-
22d414888340 Leaf Valve O21 X 0.114 (C36)Leaf Valve O21 X 0.114 (C36)
-
23b414888326 Leaf Valve O20 X 0.203 (C36)Leaf Valve O20 X 0.203 (C36)
-
23C414888327 Leaf Valve O20 X 0.152 (C36)Leaf Valve O20 X 0.152 (C36)
-
25b414888329 Leaf Valve O18 X 0.203 (C36)Leaf Valve O18 X 0.203 (C36)
-
25c414888330 Leaf Valve O18 X 0.152 (C36)Leaf Valve O18 X 0.152 (C36)
-
27a414888331 Leaf Valve O16 X 0.254 (C36)Leaf Valve O16 X 0.254 (C36)
-
27b414888332 Leaf Valve O16 X 0.203 (C36)Leaf Valve O16 X 0.203 (C36)
-
27C414888333 Leaf Valve O16 X 0.152 (C36)Leaf Valve O16 X 0.152 (C36)
-
27D415038900 Leaf Valve O16 X 0.114 (C36)Leaf Valve O16 X 0.114 (C36)
-
28b414888335 Leaf Valve O15 X 0.203 (C36)Leaf Valve O15 X 0.203 (C36)
-
31a503189538 Leaf Valve O12 X 0.254 (C36)Leaf Valve O12 X 0.254 (C36)
-
31b414888338 Leaf Valve O12 X 0.203 (C36)Leaf Valve O12 X 0.203 (C36)
-
31d415038800 Leaf Valve O12 X 0.114 (C36)Leaf Valve O12 X 0.114 (C36)
