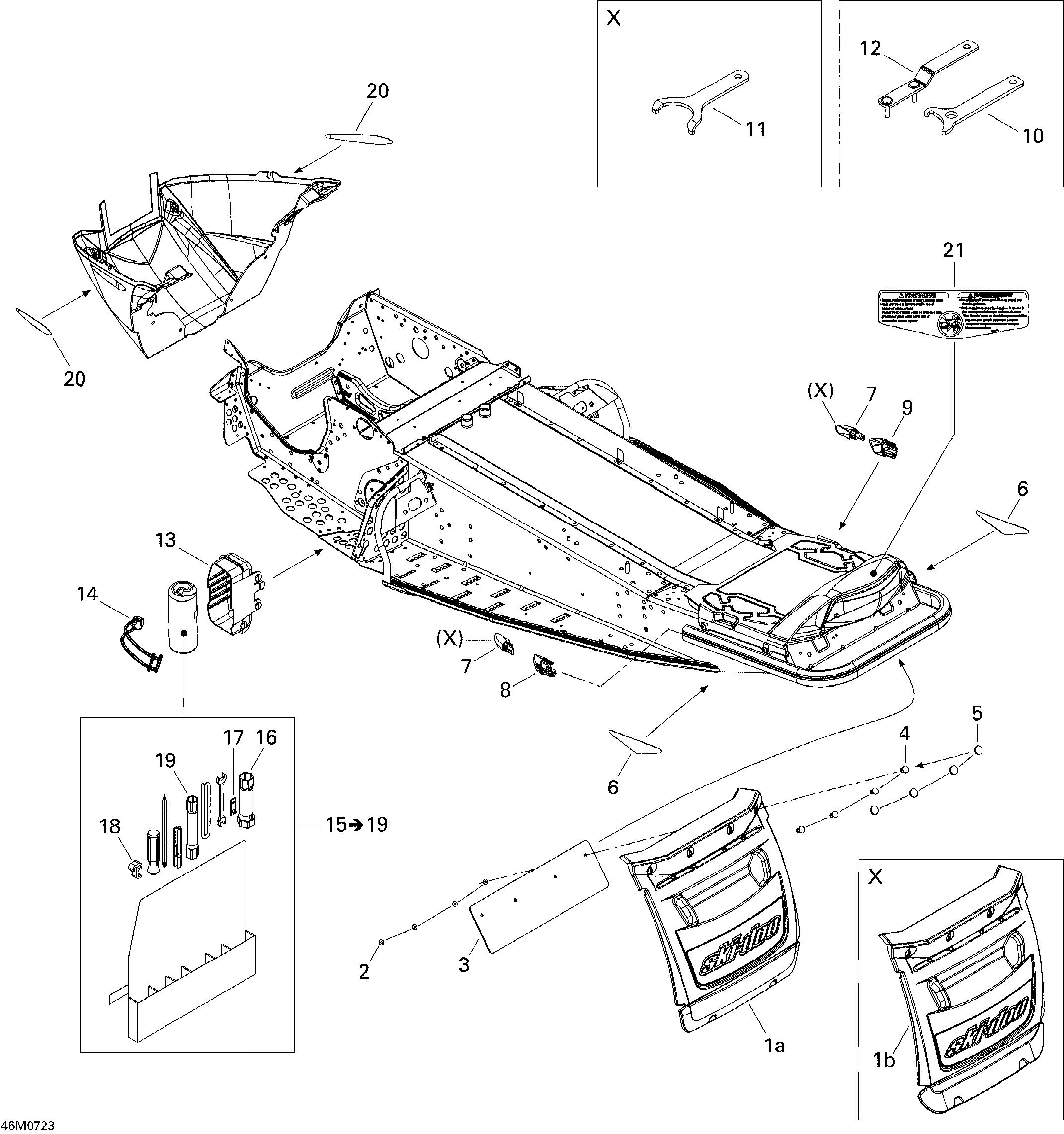

09- Utilities для BRP Ski-Doo MX Z Blizzard 800 HO PTEK - 2007
-
№АртикулНазвание
-
1a520000449 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000423 Snow Guard ReinforcementSnow Guard Reinforcement
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap, BlackCap, Black
-
6520000237 Rear Reflector, RedRear Reflector, Red
-
8520000397 LH CapLH Cap
-
9520000398 RH CapRH Cap
-
10529032900 Adjustment WrenchAdjustment Wrench
-
12520000126 Adjustment WrenchAdjustment Wrench
-
13520000322 TrunkTrunk
-
14520000528 LatchLatch
-
15529000025 Tool Kit. Includes 15 to 19Tool Kit. Includes 15 to 19
-
16529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
17529024400 Rope AdaptorRope Adaptor
-
18529019400 Starter GripStarter Grip
-
19295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
20516001336 Front ReflectorFront Reflector
-
21516003034 Warning Label, Track SecurityWarning Label, Track Security
