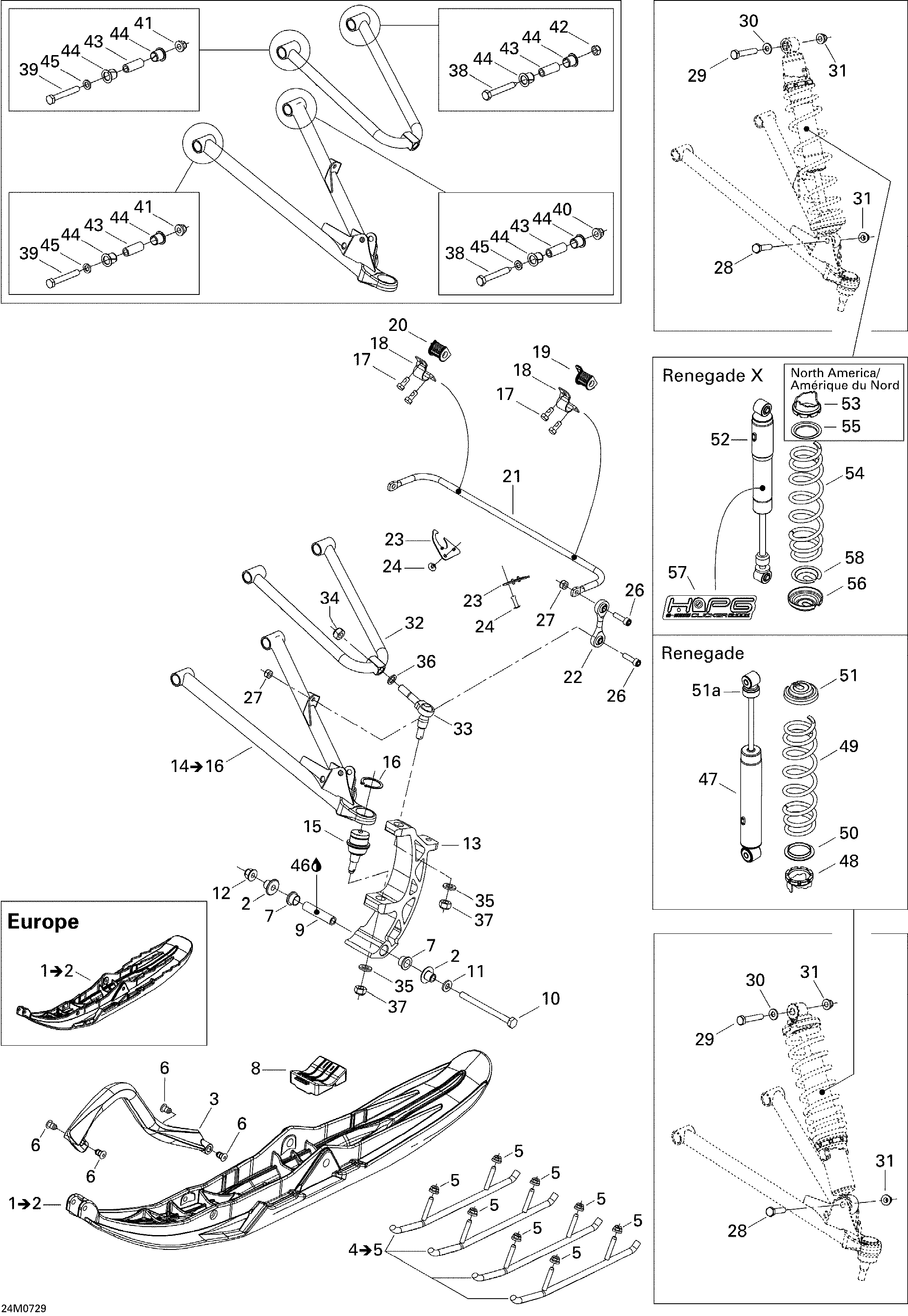

07- Front Suspension And Ski RENX для BRP Ski-Doo MX Z Renegade X 800 HO PTEK - 2007
-
№АртикулНазвание
-
1505072154 RH Pilot SKI 5.7, Black. Includes 1 to 2RH Pilot SKI 5.7, Black. Includes 1 to 2
-
1505072155 LH Pilot SKI 5.7, Black. Includes 1 to 2LH Pilot SKI 5.7, Black. Includes 1 to 2
-
1505072215 RH Pilot SKI 6.9, Black. Includes 1 to 2, EuropeRH Pilot SKI 6.9, Black. Includes 1 to 2, Europe
-
1505072217 LH Pilot SKI 6.9, Black. Includes 1 to 2, EuropeLH Pilot SKI 6.9, Black. Includes 1 to 2, Europe
-
2505071781 CushionCushion
-
3505070917 Handle, YellowHandle, Yellow
-
4860511800 Square Carbide Runner Kit. Includes 4 to 5, EuropeSquare Carbide Runner Kit. Includes 4 to 5, Europe
-
4860511400 Carbide Runner Kit. Includes 4 to 5Carbide Runner Kit. Includes 4 to 5
-
5233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
6505071812 RetainerRetainer
-
7505070954 CushionCushion
-
8505071779 Ski StopperSki Stopper
-
9506133300 SpacerSpacer
-
10230003044 Hex Screw M10 X 130Hex Screw M10 X 130
-
11732900049 WasherWasher
-
12732610084 Flanged Nut M10Flanged Nut M10
-
13505071232 Ski LegSki Leg
-
14860512300 RH Lower Arm Ass'y. Includes 14 to 16RH Lower Arm Ass'y. Includes 14 to 16
-
14860513300 RH Lower Arm Ass'y. Includes 14 to 16, (Yellow/Black)RH Lower Arm Ass'y. Includes 14 to 16, (Yellow/Black)
-
14860512200 LH Lower Arm Ass'y. Includes 14 to 16LH Lower Arm Ass'y. Includes 14 to 16
-
14860513600 LH Lower Arm Ass'y. Includes 14 to 16, (Yellow/Black)LH Lower Arm Ass'y. Includes 14 to 16, (Yellow/Black)
-
15505071891 Ball JointBall Joint
-
16293370035 CirclipCirclip
-
17250000118 Hex Screw With NylonHex Screw With Nylon
-
18506095800 ClampClamp
-
19505071475 LH BushingLH Bushing
-
20505071476 RH BushingRH Bushing
-
21505071477 StabilisatorStabilisator
-
22505071479 Ball JointBall Joint
-
23505071253 PlugPlug
-
24293150103 Pop RivetPop Rivet
-
26205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
27232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
28207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
29207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
30503189564 WasherWasher
-
31233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
32505071756 Upper ArmUpper Arm
-
32505072029 Upper Arm, Yellow. (Yellow/Black)Upper Arm, Yellow. (Yellow/Black)
-
33505072047 Upper Ball JointUpper Ball Joint
-
34250100089 Hex. Elastic Hex Nut M12Hex. Elastic Hex Nut M12
-
35234021410 Flat Washer 12 mmFlat Washer 12 mm
-
36503189276 WasherWasher
-
37250100089 Hex. Elastic Hex Nut M12Hex. Elastic Hex Nut M12
-
38250000216 Cone Screw M10 X 75Cone Screw M10 X 75
-
39250000218 Hex Screw M10 X 75Hex Screw M10 X 75
-
40250100088 Hex. Elastic Hex Nut M10Hex. Elastic Hex Nut M10
-
41250100088 Hex. Elastic Hex Nut M10Hex. Elastic Hex Nut M10
-
42250100088 Hex. Elastic Hex Nut M10. RightHex. Elastic Hex Nut M10. Right
-
42232501416 Elastic Flanged Nut M10. LeftElastic Flanged Nut M10. Left
-
43505070567 BushingBushing
-
44505070566 Arm BushingArm Bushing
-
45503189564 WasherWasher
-
46219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
52505072071 Front Shock. EuropeFront Shock. Europe
-
52505071993 Front ShockFront Shock
-
53505070150 Cam 45°Cam 45°
-
54505072187 Spring. EuropeSpring. Europe
-
54505071833 SpringSpring
-
54505072119 Spring. (Yellow-Black)Spring. (Yellow-Black)
-
55517184300 Spring GuideSpring Guide
-
56503140600 Spring StopperSpring Stopper
-
57505072222 HPG DecalHPG Decal
-
58503141600 CapCap
