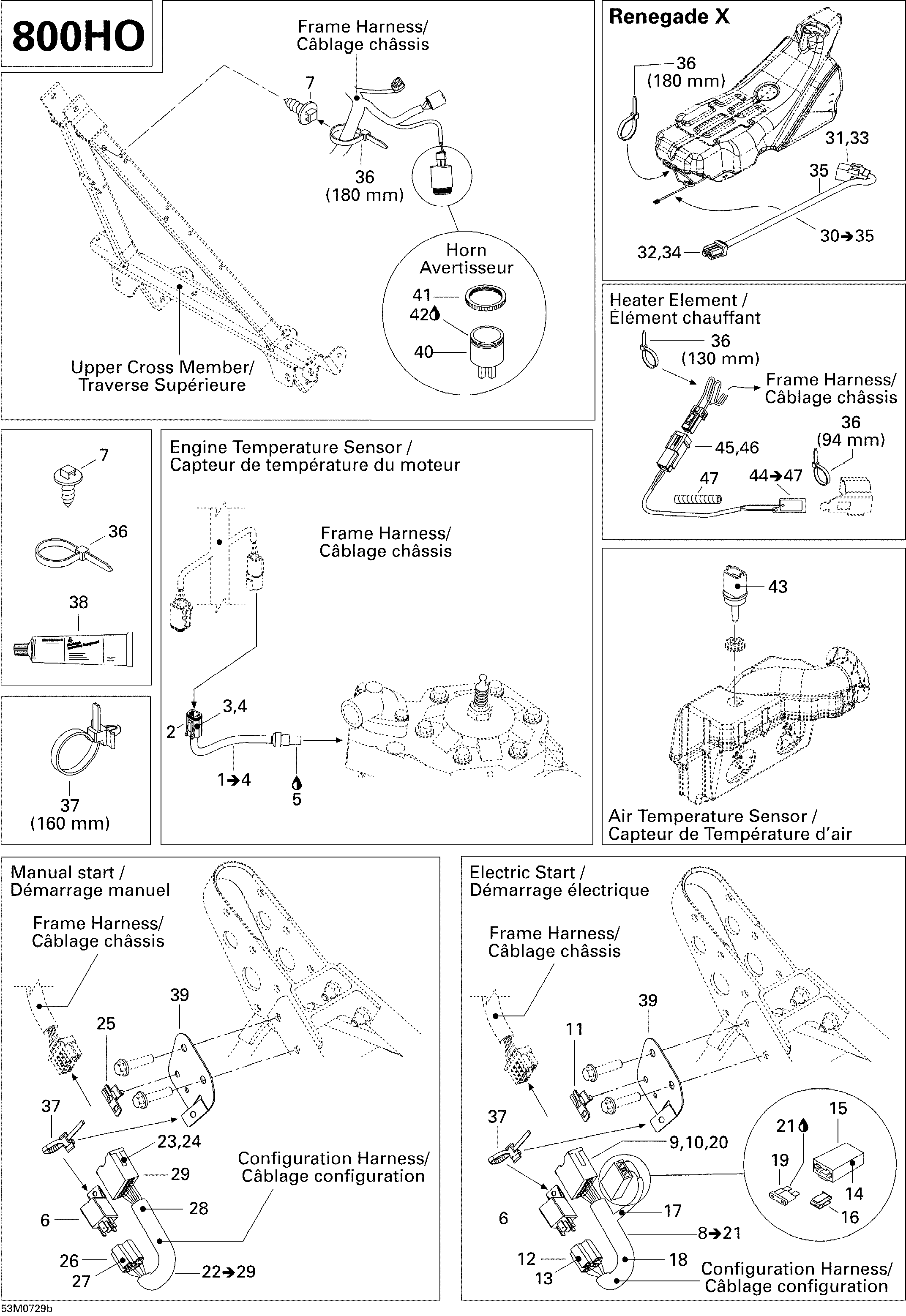

10- Electrical Accessories 2, RENX 800 для BRP Ski-Doo MX Z Renegade X 800 HO PTEK - 2007
-
№АртикулНазвание
-
1515176043 Temperature Sensor. Includes 1 to 4Temperature Sensor. Includes 1 to 4
-
2278000739 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
3278000632 Female TerminalFemale Terminal
-
4515175677 Male Wedge, 4 CircuitsMale Wedge, 4 Circuits
-
5293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
6410113200 RelayRelay
-
7293730018 Mount DartMount Dart
-
8515175721 Configuration Harness Ass'y. Includes 8 to 21Configuration Harness Ass'y. Includes 8 to 21
-
9515175232 Male TerminalMale Terminal
-
10515175273 Male TerminalMale Terminal
-
11515175283 Housing SupportHousing Support
-
12409209900 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
13561503100 Female TerminalFemale Terminal
-
14409011600 Female TerminalFemale Terminal
-
15409004000 Fuse HolderFuse Holder
-
16409014200 ClipClip
-
17515175442 Tubing 6 mmTubing 6 mm
-
18409901800 Tubing 13 mmTubing 13 mm
-
19278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
20515175720 Male Terminal Housing, 11 CircuitsMale Terminal Housing, 11 Circuits
-
21293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
30515176452 Taillight Harness. Incluant 30 a 35Taillight Harness. Incluant 30 a 35
-
31515175232 Male TerminalMale Terminal
-
32515175231 Female TerminalFemale Terminal
-
33515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
34515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
35515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
36414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
36293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
37293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
38293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
39515176020 Harness SupportHarness Support
-
40515176035 HornHorn
-
41414805101 Plastic NutPlastic Nut
-
42296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
43270600000 Air Temperature SensorAir Temperature Sensor
-
44515176473 Heater Element Ass'y. Includes 44 to 47Heater Element Ass'y. Includes 44 to 47
-
45515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
46515175232 Male TerminalMale Terminal
-
47515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
