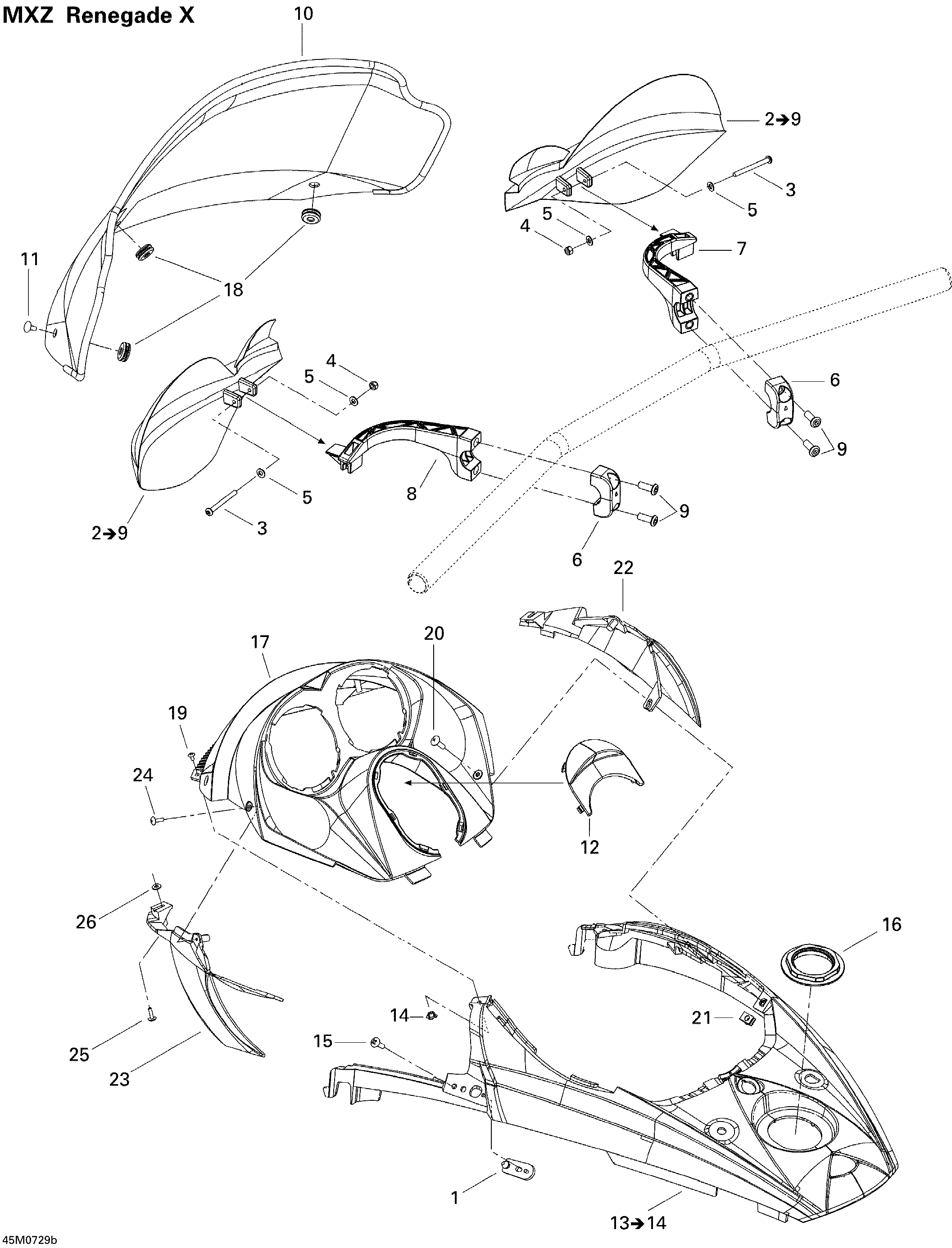

09- Windshield And Console RENX 800 для BRP Ski-Doo MX Z Renegade X 800 HO PTEK - 2007
-
№АртикулНазвание
-
1517302616 Hood LatchHood Latch
-
2517303727 Air Deflector Kit, Yellow. Includes 2 to 9Air Deflector Kit, Yellow. Includes 2 to 9
-
3205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
4232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
5234041480 Flat Washer 4 mmFlat Washer 4 mm
-
6517303264 U-clampU-clamp
-
7517303590 RH Deflector SupportRH Deflector Support
-
8517303591 LH Deflector SupportLH Deflector Support
-
9250000172 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
10517303045 Low WindshieldLow Windshield
-
11293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
12517302592 Console CapConsole Cap
-
13517302795 Center Console, Black. Includes 13 to 14, Black/BlackCenter Console, Black. Includes 13 to 14, Black/Black
-
13517302845 Center Console, Yellow. Includes 13 to 14, Yellow/BlackCenter Console, Yellow. Includes 13 to 14, Yellow/Black
-
14250100030 T-nut, M4T-nut, M4
-
15250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
16517302575 Console NutConsole Nut
-
17517303538 Indicator SupportIndicator Support
-
18517302841 GrommetGrommet
-
19250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
20250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
21250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
22517302798 RH Air DeflectorRH Air Deflector
-
23517302799 LH Air DeflectorLH Air Deflector
-
24250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
25250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
26234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
