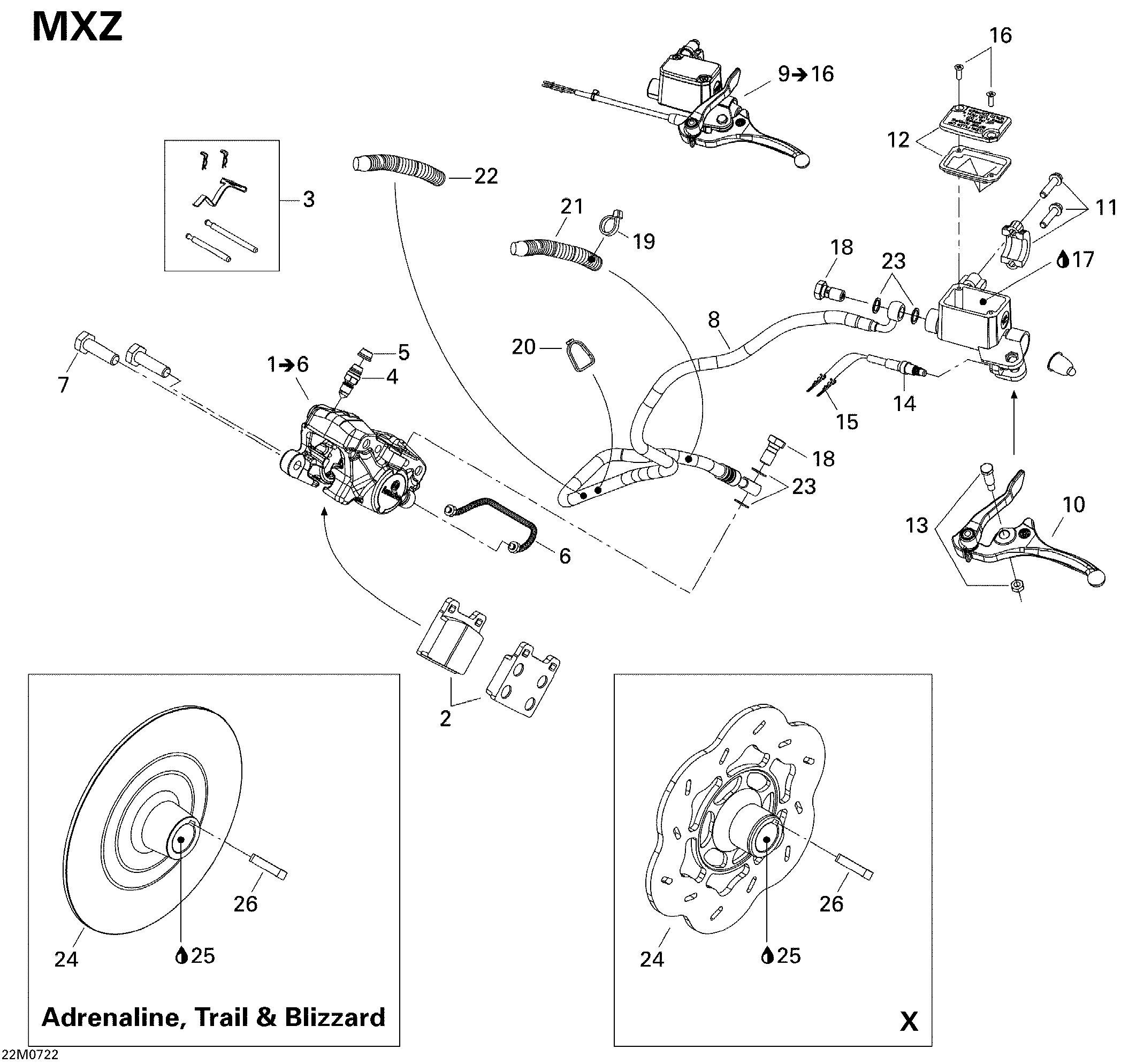

06- Hydraulic Brakes X для BRP Ski-Doo MX Z X 600 HO SDI - 2007
![](/wa-data/public/shop/sheme/bombardier/ski-doo/a177cb10-0720-46fd-af98-fe3209cb8ea9.png)
-
№АртикулНазвание
-
1507032414 Caliper. Includes 1 to 6Caliper. Includes 1 to 6
-
2415084600 Brake Pad KitBrake Pad Kit
-
3415128865 Kit, Pins, Retainers, SpringKit, Pins, Retainers, Spring
-
4414989800 Bleeder ScrewBleeder Screw
-
5414989700 BootBoot
-
6414989900 Rigid TubingRigid Tubing
-
7205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
8507032385 HoseHose
-
9507032463 Master Cylinder. Includes 9 to 16Master Cylinder. Includes 9 to 16
-
10415129216 LeverLever
-
11415029800 Clamp Ass'yClamp Ass'y
-
12415029900 CapCap
-
13415030000 Pin Ass'yPin Ass'y
-
14507032366 MicroswitchMicroswitch
-
15515175232 Male TerminalMale Terminal
-
16216141260 Screw M4 X 12Screw M4 X 12
-
17293600063 Brake Fluid, SRF, DOT 4Brake Fluid, SRF, DOT 4
-
18414920500 Banjo BoltBanjo Bolt
-
22515175442 Tubing 6 mmTubing 6 mm
-
23414920600 Washer For Hose ConnectionWasher For Hose Connection
-
24507032395 Brake DiskBrake Disk
-
25293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
26507021300 KeyKey
