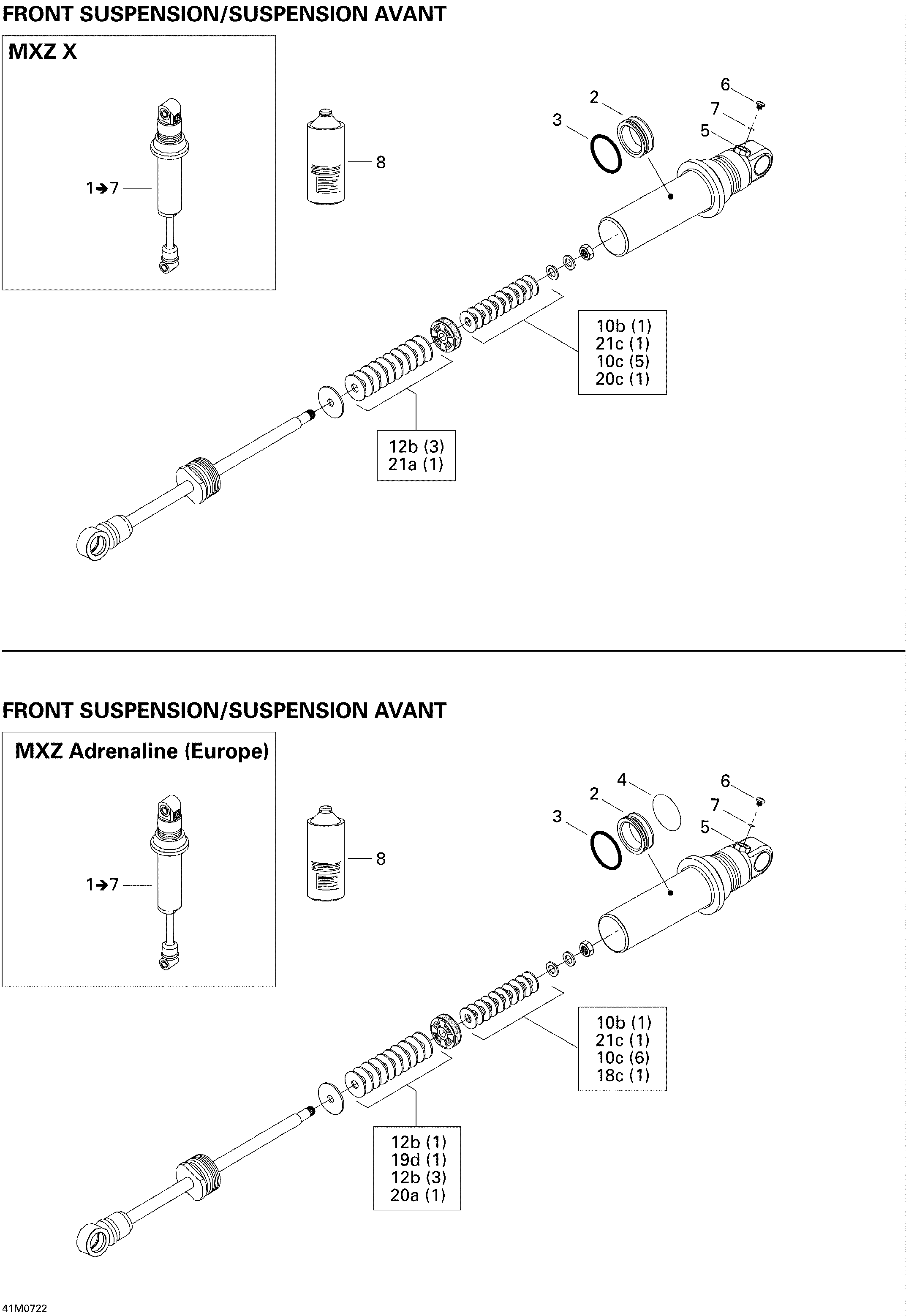

07- Take Apart Shock, Front X для BRP Ski-Doo MX Z X 600 HO SDI - 2007
-
№АртикулНазвание
-
1505071993 Front Shock. Includes 1 to 7, XFront Shock. Includes 1 to 7, X
-
2415097900 Free PistonFree Piston
-
3414888312 O-RingO-Ring
-
5505070398 Air Valve RingAir Valve Ring
-
6505070399 ScrewScrew
-
7505070400 O-RingO-Ring
-
8293600035 Shock Oil, 1 LiterShock Oil, 1 Liter
-
9c414888305 Piston (2 X 0.3-2) (C36)Piston (2 X 0.3-2) (C36)
-
9g414888307 Piston (2 X 0.3-6) (C36)Piston (2 X 0.3-6) (C36)
-
10a415039100 Leaf Valve O30 X 0.254 (C36)Leaf Valve O30 X 0.254 (C36)
-
10b414888318 Leaf Valve O30 X 0.203 (C36)Leaf Valve O30 X 0.203 (C36)
-
10c414888319 Leaf Valve O30 X 0.152 (C36)Leaf Valve O30 X 0.152 (C36)
-
12a415039000 Leaf Valve O26 X 0.254 (C36)Leaf Valve O26 X 0.254 (C36)
-
12b414888322 Leaf Valve O26 X 0.203 (C36)Leaf Valve O26 X 0.203 (C36)
-
15d414888340 Leaf Valve O21 X 0.114 (C36)Leaf Valve O21 X 0.114 (C36)
-
16b414888326 Leaf Valve O20 X 0.203 (C36)Leaf Valve O20 X 0.203 (C36)
-
16c414888327 Leaf Valve O20 X 0.152 (C36)Leaf Valve O20 X 0.152 (C36)
-
18b414888329 Leaf Valve O18 X 0.203 (C36)Leaf Valve O18 X 0.203 (C36)
-
18c414888330 Leaf Valve O18 X 0.152 (C36)Leaf Valve O18 X 0.152 (C36)
-
20a414888331 Leaf Valve O16 X 0.254 (C36)Leaf Valve O16 X 0.254 (C36)
-
20b414888332 Leaf Valve O16 X 0.203 (C36)Leaf Valve O16 X 0.203 (C36)
-
20c414888333 Leaf Valve O16 X 0.152 (C36)Leaf Valve O16 X 0.152 (C36)
-
20d415038900 Leaf Valve O16 X 0.114 (C36)Leaf Valve O16 X 0.114 (C36)
-
21b414888335 Leaf Valve O15 X 0.203 (C36)Leaf Valve O15 X 0.203 (C36)
-
24a503189538 Leaf Valve O12 X 0.254 (C36)Leaf Valve O12 X 0.254 (C36)
-
24b414888338 Leaf Valve O12 X 0.203 (C36)Leaf Valve O12 X 0.203 (C36)
-
24d415038800 Leaf Valve O12 X 0.114 (C36)Leaf Valve O12 X 0.114 (C36)
