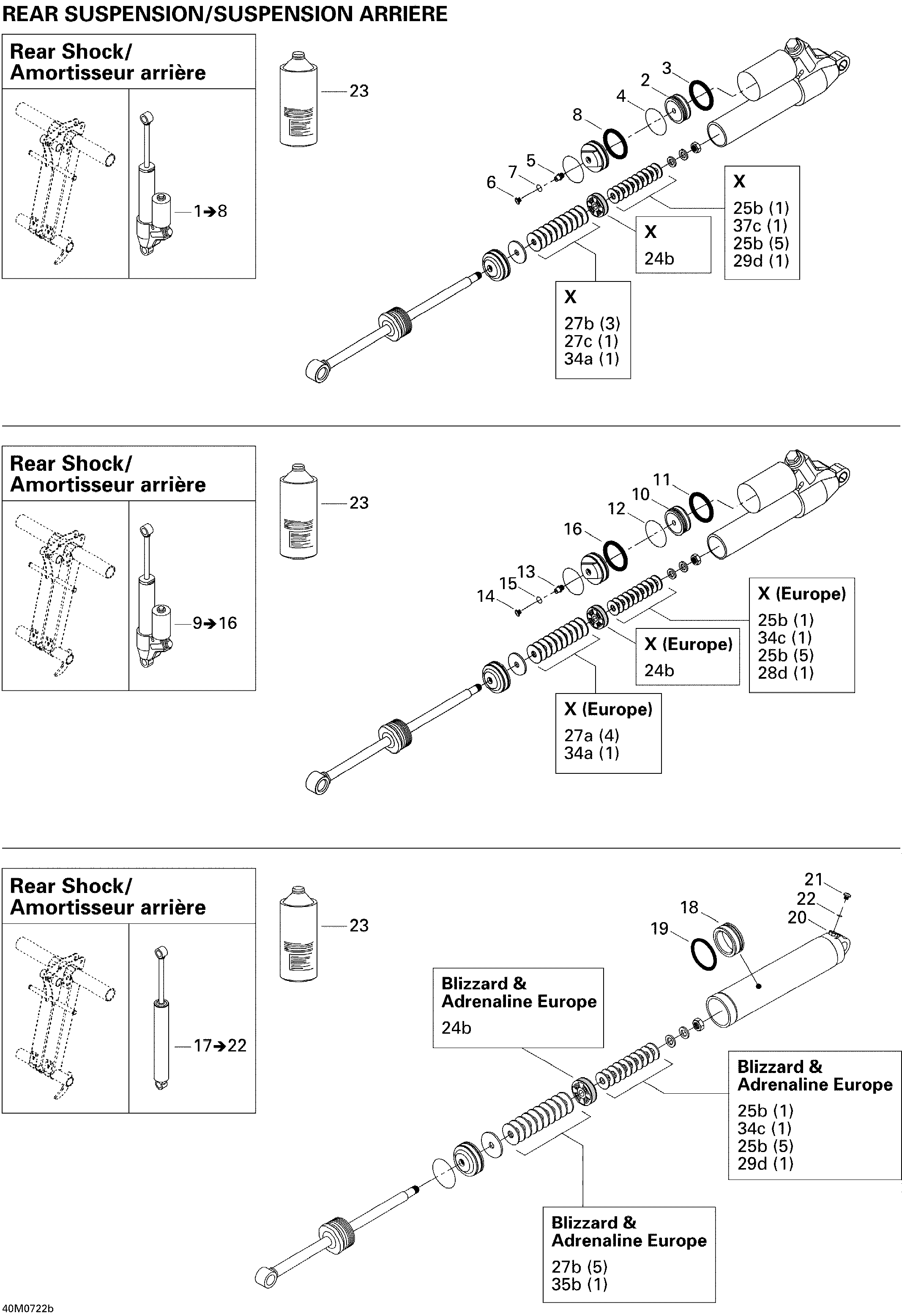

08- Take Apart Shock, Rear 2, X для BRP Ski-Doo MX Z X 600 HO SDI - 2007
-
№АртикулНазвание
-
1503191204 Rear Shock. Includes 1 to 8Rear Shock. Includes 1 to 8
-
2415093812 Free PistonFree Piston
-
3415093807 O-RingO-Ring
-
4415093806 Piston RingPiston Ring
-
5505070398 Air Valve RingAir Valve Ring
-
6505070399 ScrewScrew
-
7505070400 O-RingO-Ring
-
8415093804 O-RingO-Ring
-
9503191221 Rear Shock. Includes 9 to 16, EURRear Shock. Includes 9 to 16, EUR
-
10415093812 Free Piston. EURFree Piston. EUR
-
11415093807 O-Ring. EURO-Ring. EUR
-
12415093806 Piston Ring. EURPiston Ring. EUR
-
13505070398 Air Valve Ring. EURAir Valve Ring. EUR
-
14505070399 Screw. EURScrew. EUR
-
15505070400 O-Ring. EURO-Ring. EUR
-
16415093804 O-Ring. EURO-Ring. EUR
-
23293600035 Shock Oil, 1 LiterShock Oil, 1 Liter
-
24c414888305 Piston (2 X 0.3-2) (C36)Piston (2 X 0.3-2) (C36)
-
24g414888307 Piston (2 X 0.3-6) (C36)Piston (2 X 0.3-6) (C36)
-
25a415039100 Leaf Valve O30 X 0.254 (C36)Leaf Valve O30 X 0.254 (C36)
-
25b414888318 Leaf Valve O30 X 0.203 (C36)Leaf Valve O30 X 0.203 (C36)
-
25c414888319 Leaf Valve O30 X 0.152 (C36)Leaf Valve O30 X 0.152 (C36)
-
27a415039000 Leaf Valve O26 X 0.254 (C36)Leaf Valve O26 X 0.254 (C36)
-
27b414888322 Leaf Valve O26 X 0.203 (C36)Leaf Valve O26 X 0.203 (C36)
-
30d414888340 Leaf Valve O21 X 0.114 (C36)Leaf Valve O21 X 0.114 (C36)
-
31b414888326 Leaf Valve O20 X 0.203 (C36)Leaf Valve O20 X 0.203 (C36)
-
31c414888327 Leaf Valve O20 X 0.152 (C36)Leaf Valve O20 X 0.152 (C36)
-
33b414888329 Leaf Valve O18 X 0.203 (C36)Leaf Valve O18 X 0.203 (C36)
-
33c414888330 Leaf Valve O18 X 0.152 (C36)Leaf Valve O18 X 0.152 (C36)
-
35a414888331 Leaf Valve O16 X 0.254 (C36)Leaf Valve O16 X 0.254 (C36)
-
35b414888332 Leaf Valve O16 X 0.203 (C36)Leaf Valve O16 X 0.203 (C36)
-
35c414888333 Leaf Valve O16 X 0.152 (C36)Leaf Valve O16 X 0.152 (C36)
-
35d415038900 Leaf Valve O16 X 0.114 (C36)Leaf Valve O16 X 0.114 (C36)
-
36b414888335 Leaf Valve O15 X 0.203 (C36)Leaf Valve O15 X 0.203 (C36)
-
39a503189538 Leaf Valve O12 X 0.254 (C36)Leaf Valve O12 X 0.254 (C36)
-
39b414888338 Leaf Valve O12 X 0.203 (C36)Leaf Valve O12 X 0.203 (C36)
-
39D415038800 Leaf Valve O12 X 0.114 (C36)Leaf Valve O12 X 0.114 (C36)
