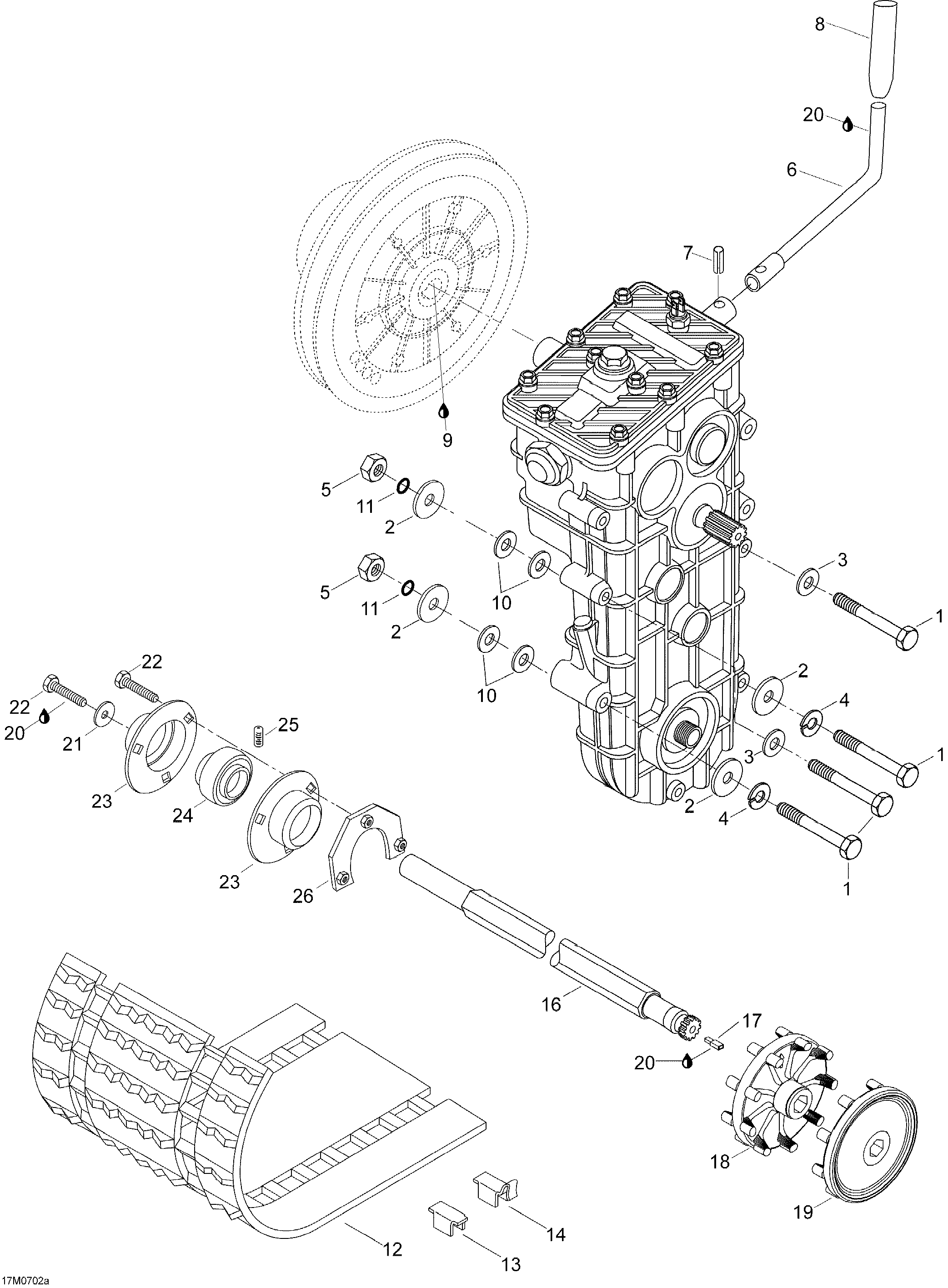

05- Drive System SWT 550 для BRP Ski-Doo Skandic SWT 550F - 2007
-
№АртикулНазвание
-
1M40012 Screw M8 X 80Screw M8 X 80
-
2M20010 WasherWasher
-
3234081410 Flat Washer 8 mmFlat Washer 8 mm
-
4234181401 Lock Washer 8 mmLock Washer 8 mm
-
5232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
6M5340902 Arm ShifterArm Shifter
-
7M41008 Pin SpringPin Spring
-
8M28247 Arm Shifter BallArm Shifter Ball
-
9293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
10M20077 WasherWasher
-
11506151140 O-RingO-Ring
-
12M13056 Track Ass'y. Includes 12 to 14Track Ass'y. Includes 12 to 14
-
13M5318323 Guide CleatGuide Cleat
-
14M5318322 CleatCleat
-
16M5344243 Drive AxleDrive Axle
-
17M542013 NippleNipple
-
18414931800 SprocketSprocket
-
19415067400 Half SprocketHalf Sprocket
-
20293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
21M546336 WasherWasher
-
22M40336 Screw M8 X 20Screw M8 X 20
-
23M534430 Ball Bearing HousingBall Bearing Housing
-
24M31UC205 Ball Bearing. Incldues 24 to 25Ball Bearing. Incldues 24 to 25
-
25M10531 ScrewScrew
-
26M546421 Half RingHalf Ring
