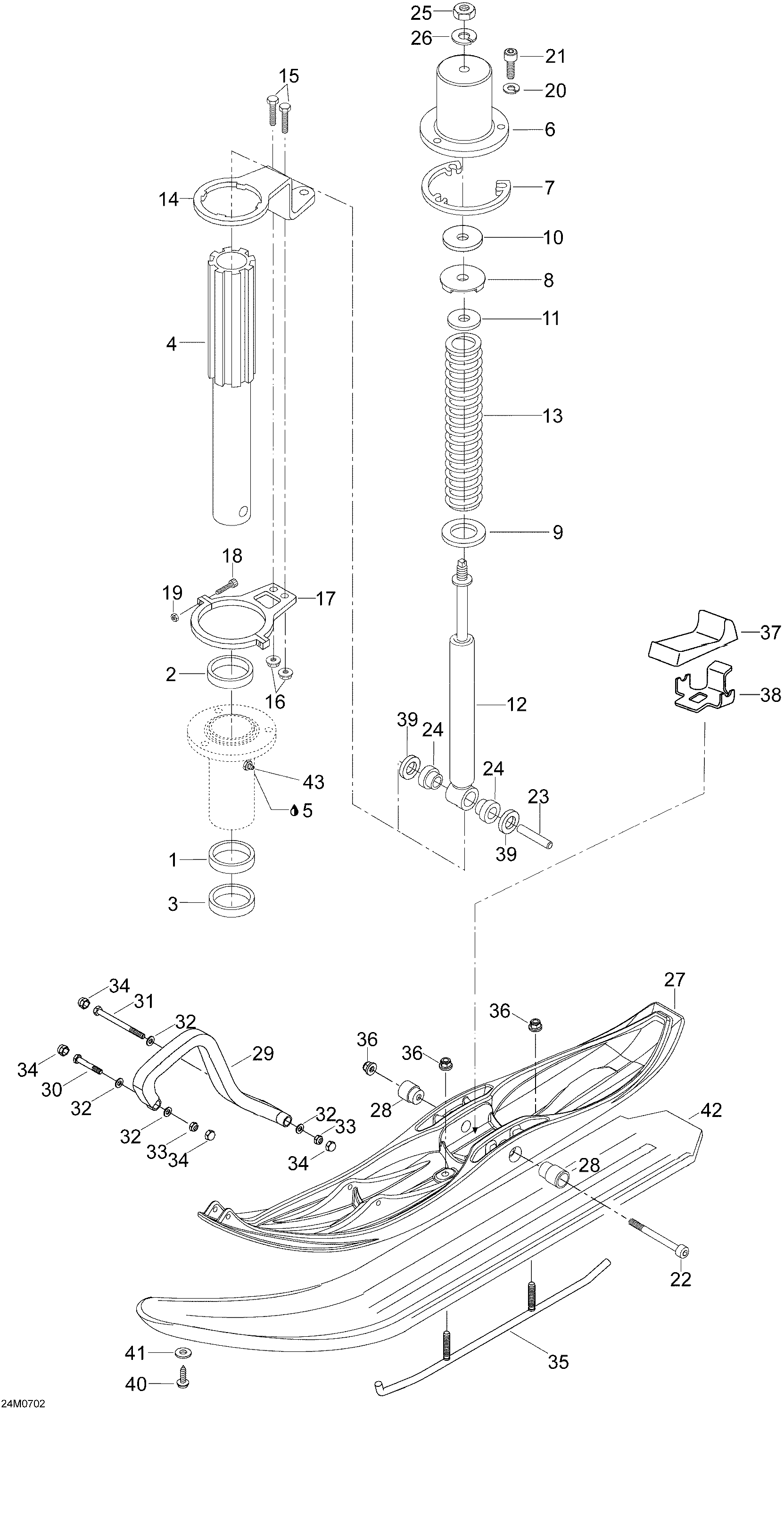

07- Front Suspension And Ski SWT-WT 600 для BRP Ski-Doo Skandic SWT 550F - 2007
-
№АртикулНазвание
-
1414803200 Lower CushionLower Cushion
-
2414803100 Upper CushionUpper Cushion
-
3M316373 Oil SealOil Seal
-
4M5245362 Ski LegSki Leg
-
5219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
6605249284 Painted CoverPainted Cover
-
7503145600 SpacerSpacer
-
8570025800 StopperStopper
-
9M549493 WasherWasher
-
10M5440399 WasherWasher
-
11M549492 PlatePlate
-
12505070920 ShockShock
-
13M5241330 SpringSpring
-
14M5244182 Steering ArmSteering Arm
-
15207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
16M33200 Nut M6Nut M6
-
17M5344180 Support Ass'ySupport Ass'y
-
18M40146 ScrewScrew
-
19232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
20234181401 Lock Washer 8 mmLock Washer 8 mm
-
21205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
22M40225 Hex Screw M10 X 140Hex Screw M10 X 140
-
23605348921 SpacerSpacer
-
24572034500 CushionCushion
-
25233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
26M20012 WasherWasher
-
27605153775 Plastic Ski Ass'y. Includes 27 to 28Plastic Ski Ass'y. Includes 27 to 28
-
28605348392 BushingBushing
-
29505070963 Handle, BlackHandle, Black
-
30207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
31M40264 Hex Screw M8 X 90Hex Screw M8 X 90
-
32234081410 Flat Washer 8 mmFlat Washer 8 mm
-
33232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
34M28056 CapCap
-
35605352643 Carbide KitCarbide Kit
-
36M33074 NutNut
-
37605348439 Rubber StopperRubber Stopper
-
38605348437 Plate SupportPlate Support
-
39605448594 BushingBushing
-
40M40901 Hex ScrewHex Screw
-
41M20037 WasherWasher
-
42605153964 Ski LinerSki Liner
-
43M34019 Grease FittingGrease Fitting
