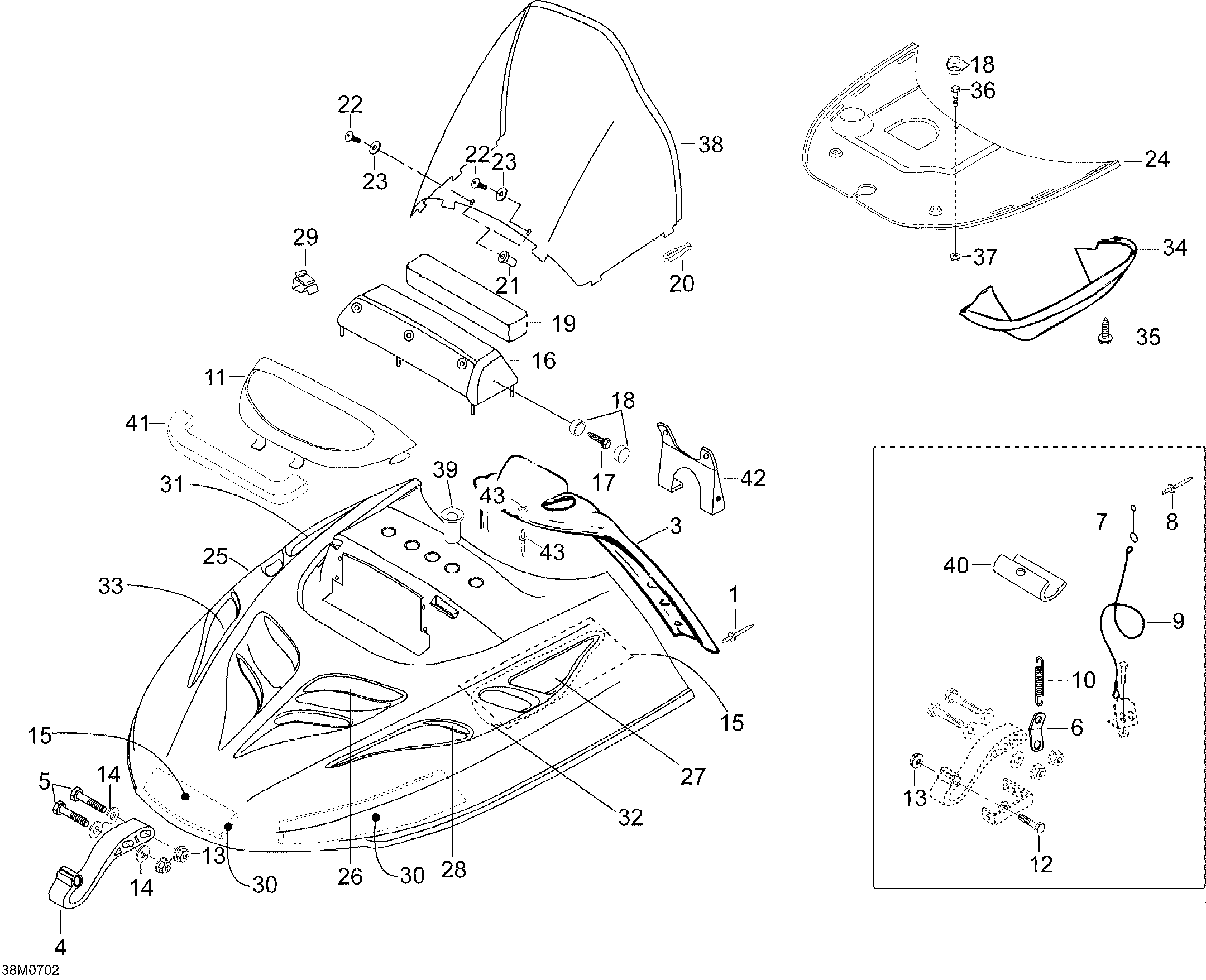

09- Hood SWT 550 для BRP Ski-Doo Skandic SWT 550F - 2007
-
№АртикулНазвание
-
1M36036 Rivet-BlackRivet-Black
-
2M20008 Washer 5 mmWasher 5 mm
-
3605154897 DashDash
-
4M5343075 HingeHinge
-
5M40193 ScrewScrew
-
6M5443123 Spring PlateSpring Plate
-
7605449395 Cable KeeperCable Keeper
-
8M36005 RivetRivet
-
9M5346947 Retainer CableRetainer Cable
-
10M5442675 SpringSpring
-
11605252351 Lamp MoldingLamp Molding
-
12M40084 Screw M6 X 45Screw M6 X 45
-
13M33200 Nut M6Nut M6
-
14M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
15M44001 Sheet ReflectionSheet Reflection
-
16605149010 Intake CoverIntake Cover
-
17M40901 Hex ScrewHex Screw
-
18M282000 CoverCover
-
19605349056 FilterFilter
-
20570023800 Windshield LatchWindshield Latch
-
21M28055 Welded NutWelded Nut
-
22M40156 ScrewScrew
-
23M20008 Washer 5 mmWasher 5 mm
-
24M5246742 Air DuctAir Duct
-
25605149586 Hood Ass'y. Includes 25 to 29Hood Ass'y. Includes 25 to 29
-
26M5142669 Front GrillFront Grill
-
27M5242671 RH Upper GrillRH Upper Grill
-
27M5242670 LH Upper GrillLH Upper Grill
-
28M5242672 RH Lower GrillRH Lower Grill
-
28M5342673 LH Lower GrillLH Lower Grill
-
29414227300 ClipClip
-
30414631900 Acoustic FoamAcoustic Foam
-
34M5146986 Air DuctAir Duct
-
35414644300 DartDart
-
36M40179 Screw M5X25Screw M5X25
-
37M33062 Nut M5Nut M5
-
38M5147892 WindshieldWindshield
-
42M5347795 SupportSupport
-
43M36097 RivetRivet
