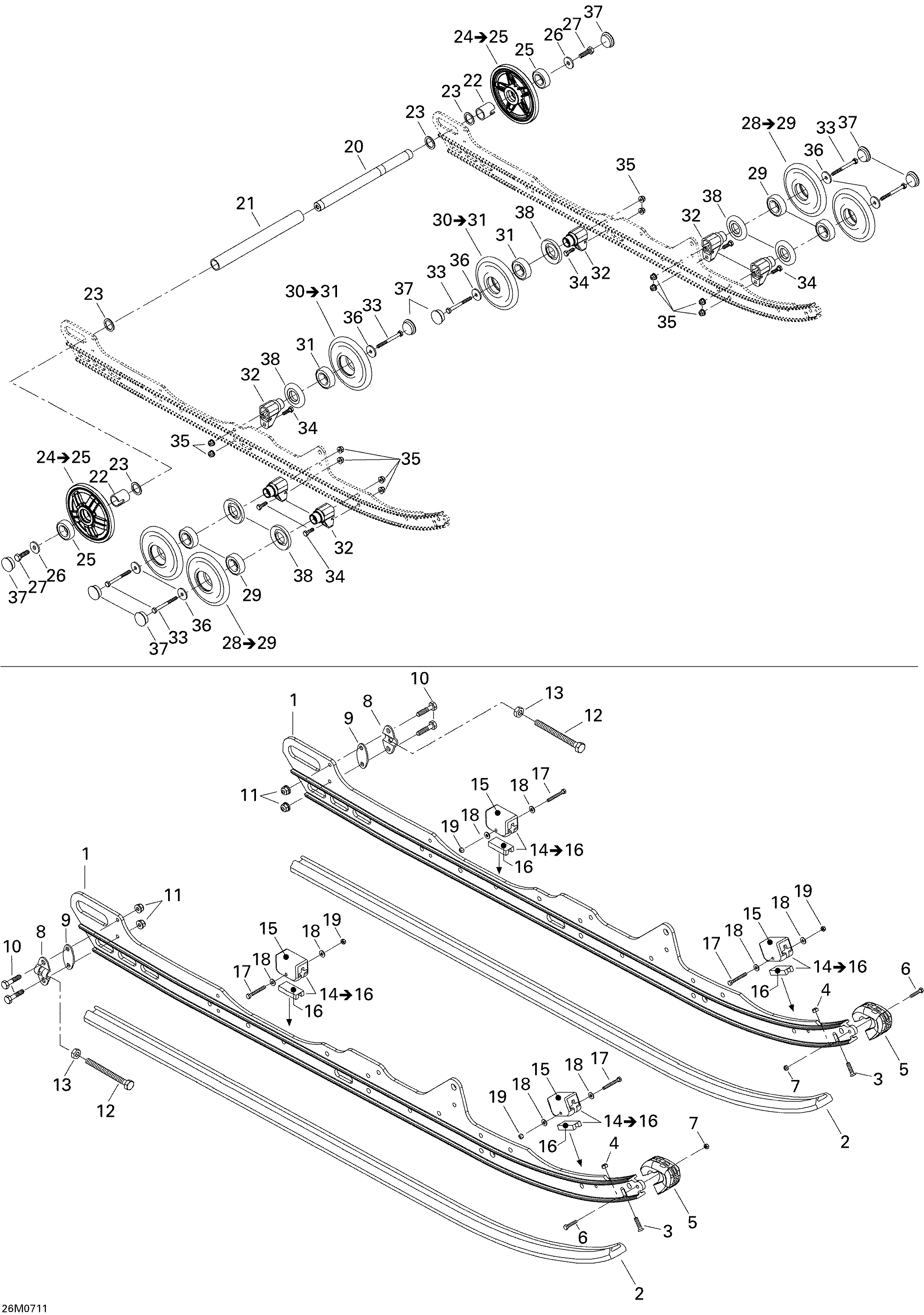

08- Rear Suspension для BRP Ski-Doo Summit 550F - 2007
-
№АртикулНазвание
-
1503191107 Runner 136''Runner 136''
-
2503189639 ShoeShoe
-
3208562560 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207652544 Hex Flange Screw M5 X 25Hex Flange Screw M5 X 25
-
7233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
8503155300 TensionerTensioner
-
9503189160 Tensioner SpacerTensioner Spacer
-
10207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
11233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
12230100044 Hex Screw M10 X 100Hex Screw M10 X 100
-
13233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
14503190905 Rubber Stopper Ass'y. Includes 14 to 16Rubber Stopper Ass'y. Includes 14 to 16
-
15570063000 Rubber StopperRubber Stopper
-
16572084800 Reinforcement StopperReinforcement Stopper
-
17207054044 Hex Screw M5 X 40Hex Screw M5 X 40
-
18391301700 WasherWasher
-
19232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
20503190429 Rear AxleRear Axle
-
21503191108 SpacerSpacer
-
22503190428 Rear Wheel SpacerRear Wheel Spacer
-
23503190432 WasherWasher
-
24503191111 Wheel 165 mm, Viper Red. Includes 24 to 25Wheel 165 mm, Viper Red. Includes 24 to 25
-
25503190396 Ball BearingBall Bearing
-
26503190439 WasherWasher
-
27250000019 Hex Screw With NylonHex Screw With Nylon
-
28503191316 Wheel 141 Ass'y. Includes 28 to 29Wheel 141 Ass'y. Includes 28 to 29
-
29503190396 Ball BearingBall Bearing
-
30503191316 Wheel 141 Ass'y. Includes 30 to 31Wheel 141 Ass'y. Includes 30 to 31
-
31503190396 Ball BearingBall Bearing
-
32503190580 SupportSupport
-
33207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
34207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
35233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
36211200041 WasherWasher
-
37570063600 Wheel CapWheel Cap
-
38503190434 Labyrinth SealLabyrinth Seal
