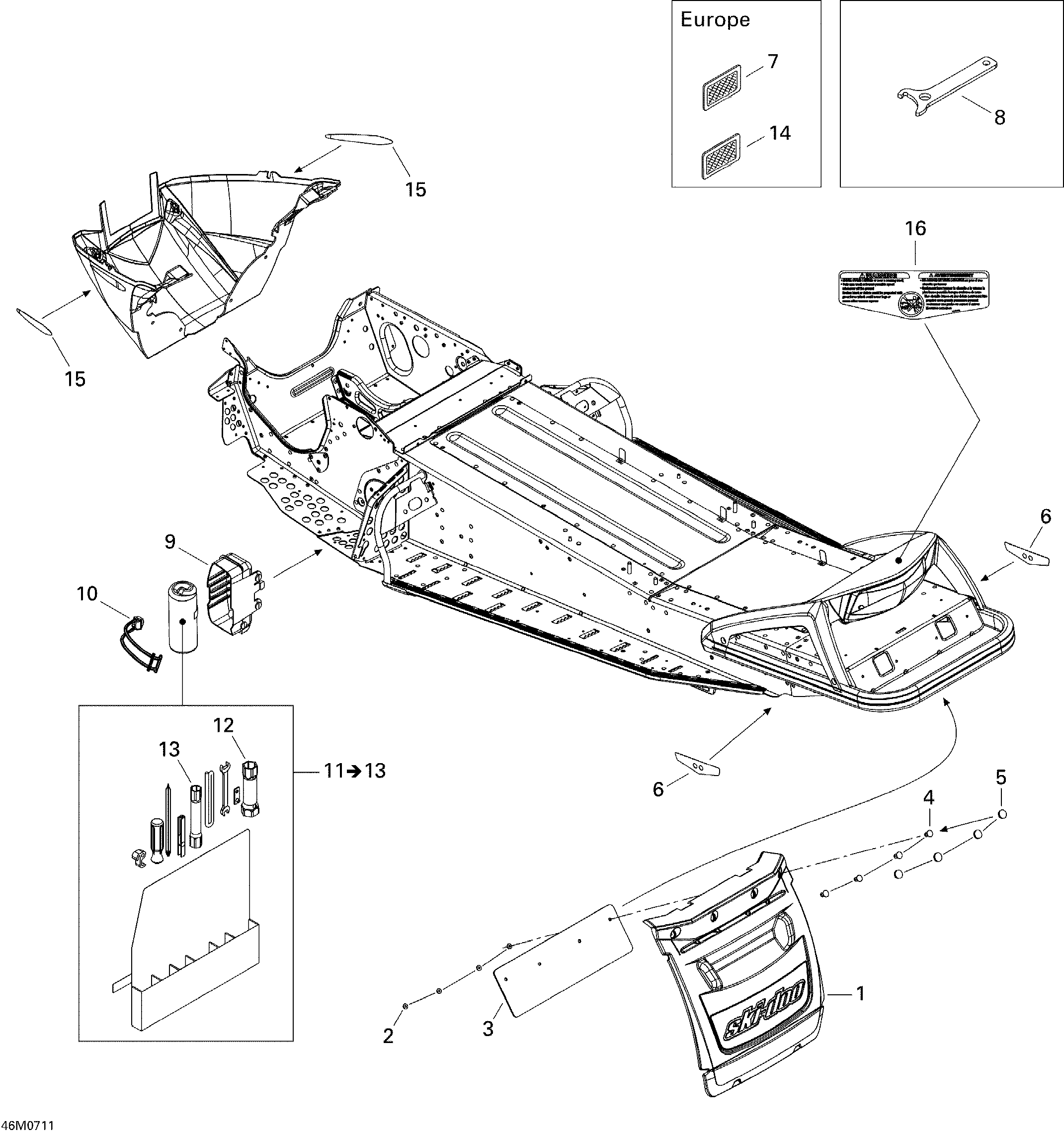

09- Utilities для BRP Ski-Doo Summit 550F - 2007
-
№АртикулНазвание
-
1520000599 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000423 Snow Guard ReinforcementSnow Guard Reinforcement
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap, BlackCap, Black
-
6520000382 Rear ReflectorRear Reflector
-
6520000383 Rear Reflector. EuropeRear Reflector. Europe
-
7520000271 Reflector Amber, Europe. EuropeReflector Amber, Europe. Europe
-
8529032900 Adjustment WrenchAdjustment Wrench
-
9520000322 TrunkTrunk
-
10520000528 LatchLatch
-
11529000025 Tool Kit. Includes 11 to 13Tool Kit. Includes 11 to 13
-
12529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
13295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
14415037900 White Reflector, Europe. EuropeWhite Reflector, Europe. Europe
-
15516001336 Front ReflectorFront Reflector
-
16516003034 Warning Label, Track SecurityWarning Label, Track Security
