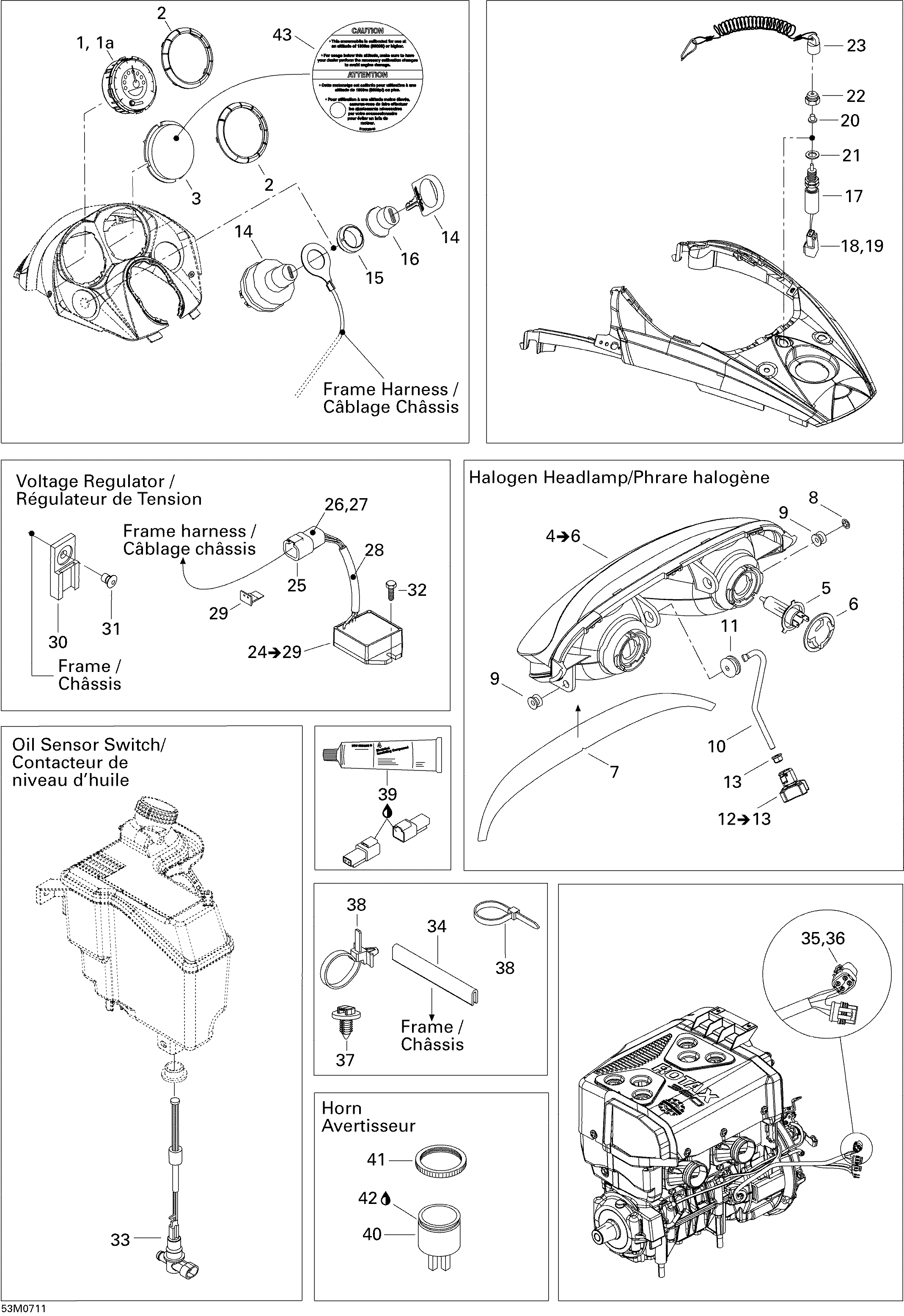

10- Electrical Accessories для BRP Ski-Doo Summit 550F - 2007
-
№АртикулНазвание
-
1515176476 SpeedometerSpeedometer
-
1a415128938 Remplacement Lens, SpeedometerRemplacement Lens, Speedometer
-
2515176242 Gauge RingGauge Ring
-
3515175901 Bottom RingBottom Ring
-
4515176311 Halogen Headlamp Ass'y. Includes 4 to 6Halogen Headlamp Ass'y. Includes 4 to 6
-
5515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
6515176385 Bulb HolderBulb Holder
-
7516001328 Headlamp DecalHeadlamp Decal
-
8732610072 Push NutPush Nut
-
9515175760 Headlamp BushingHeadlamp Bushing
-
10515175521 Adjuster RodAdjuster Rod
-
11415100800 GrommetGrommet
-
12515175975 Handle. Includes 12 to 13Handle. Includes 12 to 13
-
13233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
14410113602 Ignition SwitchIgnition Switch
-
15410112100 Face NutFace Nut
-
16570013700 Switch BootSwitch Boot
-
17515175653 Brake SwitchBrake Switch
-
18515176297 Female HousingFemale Housing
-
19515175232 Male TerminalMale Terminal
-
20570151100 Plunger CapPlunger Cap
-
22515145900 Switch NutSwitch Nut
-
23515176463 Cap Ass'YCap Ass'Y
-
24515176188 Voltage Regulator. Includes 24 to 29Voltage Regulator. Includes 24 to 29
-
25278001477 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
26515175568 Male TerminalMale Terminal
-
27278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
28710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
29293000052 Sealing CapSealing Cap
-
30515175917 ClipClip
-
31293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
32210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
33515176327 Oil Level SensorOil Level Sensor
-
34509000263 TrimTrim
-
35278001473 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
36278001474 Female Lock, 4 CircuitsFemale Lock, 4 Circuits
-
37293730018 Mount DartMount Dart
-
38414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
38293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
38293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
39293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
40515176035 HornHorn
-
41414805101 Plastic NutPlastic Nut
-
42296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
43516003040 Altitude Decal. Except EuropeAltitude Decal. Except Europe
