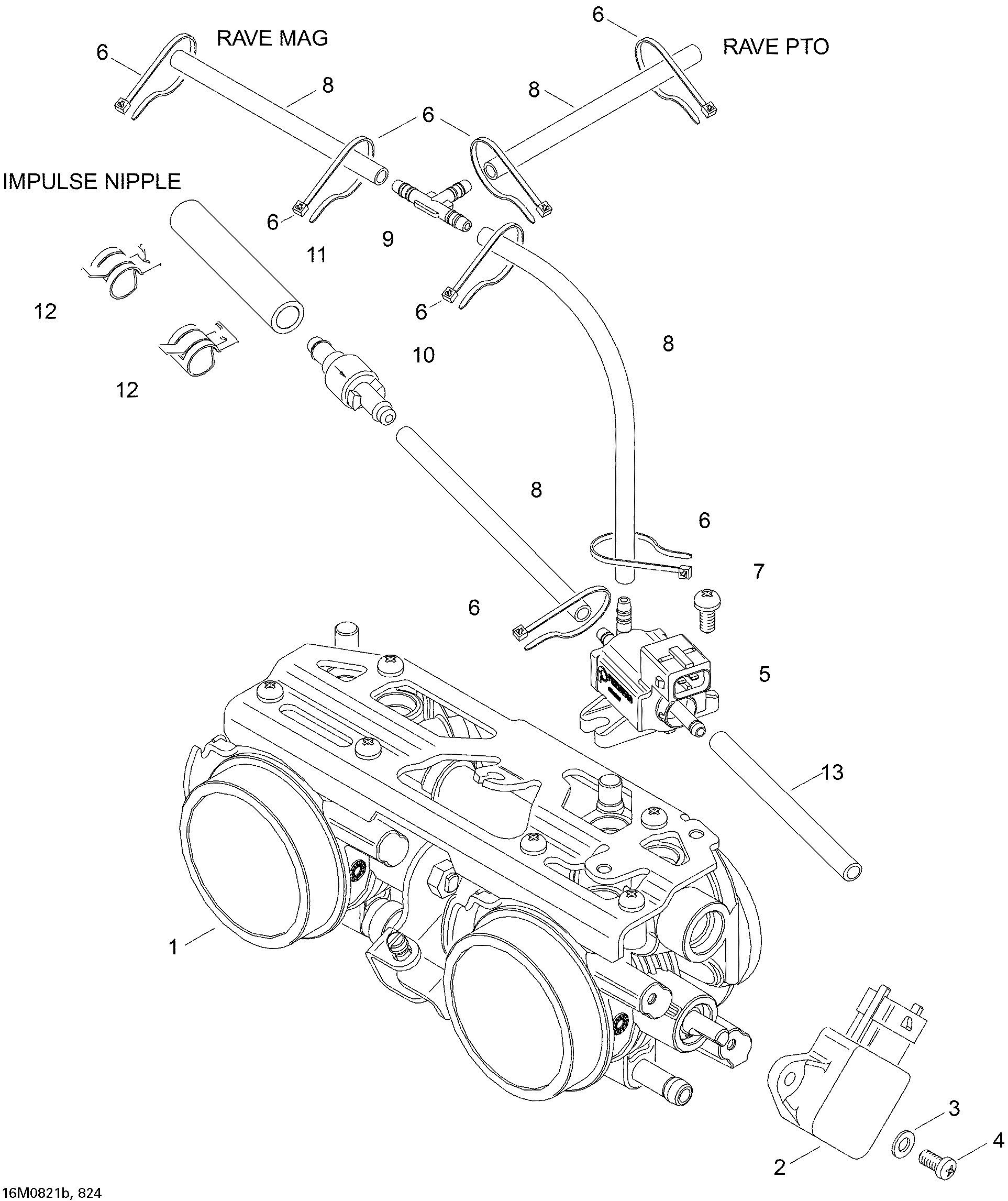

02- Throttle Body для BRP Ski-Doo Expedition TUV 600 H.O. SDI - 2008
-
№АртикулНазвание
-
1420889196 Throttle BodyThrottle Body
-
2270000251 Position SensorPosition Sensor
-
3234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
4208641660 Phillips Screw M4 X 16Phillips Screw M4 X 16
-
5270600005 Solenoid ValveSolenoid Valve
-
6293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
7420940011 Screw M5 X 10Screw M5 X 10
-
8420660571 High Pressure Air Hose 180 mmHigh Pressure Air Hose 180 mm
-
9293710068 T-FittingT-Fitting
-
10275500479 Check ValveCheck Valve
-
11420660562 Pressure LinePressure Line
-
12420853510 ClampClamp
-
13420660571 High Pressure Air Hose 180 mmHigh Pressure Air Hose 180 mm
