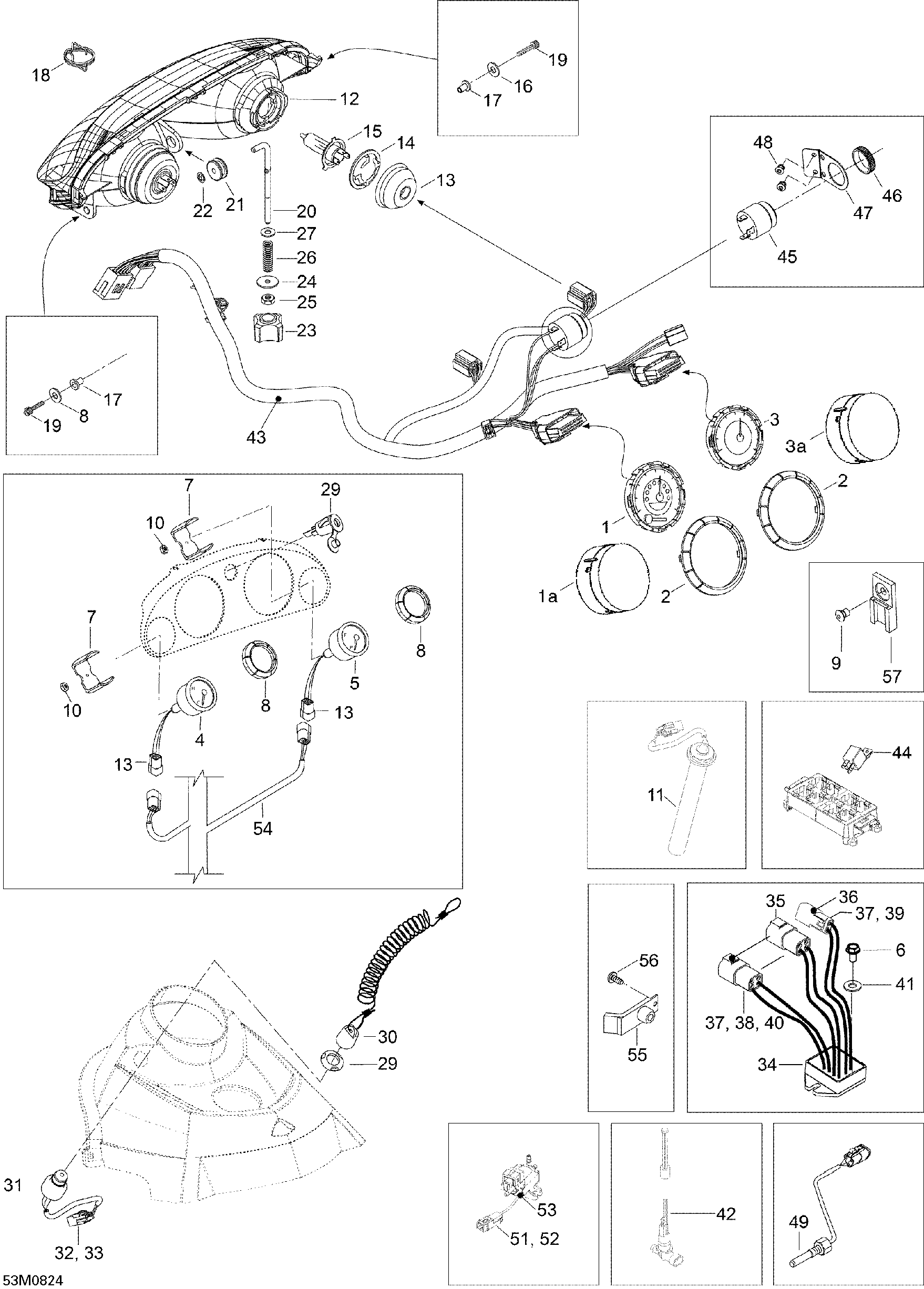

10- Electrical Accessories для BRP Ski-Doo Expedition TUV 600 H.O. SDI - 2008
-
№АртикулНазвание
-
1515176477 SpeedometerSpeedometer
-
1a415128938 Remplacement Lens, SpeedometerRemplacement Lens, Speedometer
-
2515176242 Gauge RingGauge Ring
-
3515176478 TachometerTachometer
-
3a415128937 Remplacement Lens, TachometerRemplacement Lens, Tachometer
-
4515176214 Temperature GaugeTemperature Gauge
-
5515176215 Fuel GaugeFuel Gauge
-
6M40322 ScrewScrew
-
7515176235 Case HolderCase Holder
-
8515176216 Ring GaugeRing Gauge
-
9M36005 RivetRivet
-
10232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
11605354909 Fuel SensorFuel Sensor
-
12515176311 Halogen Headlamp Ass'yHalogen Headlamp Ass'y
-
16M20008 Washer 5 mmWasher 5 mm
-
17250100018 Nut M5Nut M5
-
18M5447238 SpringSpring
-
19M40235 Screw M5X35Screw M5X35
-
20605450023 Adjuster RodAdjuster Rod
-
21415100800 GrommetGrommet
-
22m36084 WasherWasher
-
23515175548 HandleHandle
-
24M20038 WasherWasher
-
25232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
26415100600 SpringSpring
-
27234061410 Flat Washer 6 mmFlat Washer 6 mm
-
28710001248 Outlet DCOutlet DC
-
29278000508 Safety Switch NutSafety Switch Nut
-
30515176461 DESS CapDESS Cap
-
31515175797 Dess SwitchDess Switch
-
32515175232 Male TerminalMale Terminal
-
33515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
34515176243 Voltage RegulatorVoltage Regulator
-
35278001477 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
36278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
37515175568 Male TerminalMale Terminal
-
38278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
39278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
40293000052 Sealing CapSealing Cap
-
41M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
42605452095 Oil SensorOil Sensor
-
43605355336 Main HarnessMain Harness
-
44410113604 RelayRelay
-
45515176035 HornHorn
-
46414805101 Plastic NutPlastic Nut
-
47M5447941 HolderHolder
-
48M36005 RivetRivet
-
49515176132 Temperature SensorTemperature Sensor
-
50515176473 Heater Element Ass'yHeater Element Ass'y
-
51515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
52515175232 Male TerminalMale Terminal
-
53512059809 Heating Element BracketHeating Element Bracket
-
54605354914 Harness Ass'yHarness Ass'y
-
55420274055 MAPS, Manifold Air Pressure SensorMAPS, Manifold Air Pressure Sensor
-
56M40905 Screw M6 X 16Screw M6 X 16
-
57515175917 ClipClip
