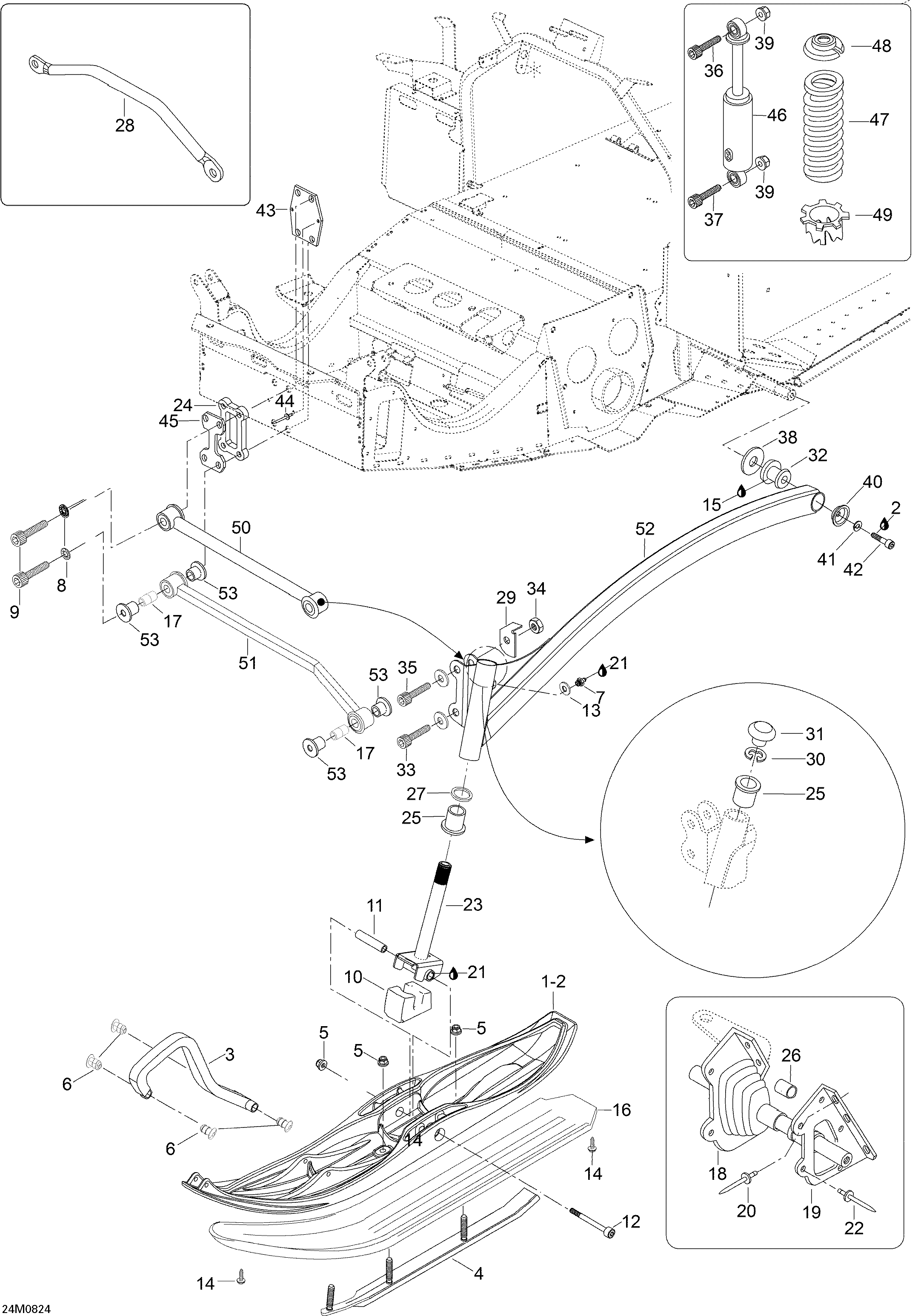

07- Front Suspension And Ski для BRP Ski-Doo Expedition TUV 600 H.O. SDI - 2008
-
№АртикулНазвание
-
1605153775 Plastic Ski Ass'y. Includes 1 to 2Plastic Ski Ass'y. Includes 1 to 2
-
2605153964 Ski LinerSki Liner
-
3505070963 Handle, BlackHandle, Black
-
4605253761 RH Carbide Ski RunnerRH Carbide Ski Runner
-
4605253760 LH Carbide Ski RunnerLH Carbide Ski Runner
-
5M33074 NutNut
-
6505071812 RetainerRetainer
-
7M34011 Grease FittingGrease Fitting
-
8M20074 Lock WasherLock Washer
-
9M40370 Screw Allen M12 X 75Screw Allen M12 X 75
-
10605348458 Ski StopperSki Stopper
-
11506133300 SpacerSpacer
-
12M40225 Hex. Screw M10 X 140Hex. Screw M10 X 140
-
13M20007 WasherWasher
-
14605640019 Plastofast Screw 6x18Plastofast Screw 6x18
-
15293550030 Grease, Super LubeGrease, Super Lube
-
16605153964 Ski LinerSki Liner
-
17605450024 BushingBushing
-
18570024800 RH Tie Rod CapRH Tie Rod Cap
-
18570024900 LH Tie Rod CapLH Tie Rod Cap
-
19605350120 RH Cover PlateRH Cover Plate
-
19605350119 LH Cover PlateLH Cover Plate
-
20M36037 RivetRivet
-
21219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
22M36009 RivetRivet
-
23506151234 Ski LegSki Leg
-
24605350191 Spacer 17.5Spacer 17.5
-
25505070003 CushionCushion
-
26572036500 BushingBushing
-
27505070004 WasherWasher
-
28605352875 Support ShaftSupport Shaft
-
29605448861 RH Plate LockingRH Plate Locking
-
29605448862 LH Plate LockingLH Plate Locking
-
30371910400 CirclipCirclip
-
31572091300 CapCap
-
32570062200 DamperDamper
-
33M40371 Screw Allen M12 X 55Screw Allen M12 X 55
-
34232521414 Elastic Stop Nut M12Elastic Stop Nut M12
-
35M40306 Allen Screw M12 X 60Allen Screw M12 X 60
-
36M40837 Screw M10 X 55Screw M10 X 55
-
37M40136 Socket Head Screw. M10 X 50Socket Head Screw. M10 X 50
-
38503146700 WasherWasher
-
39233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
40506115800 CupCup
-
41234181401 Lock Washer 8 mmLock Washer 8 mm
-
42M40810 Screw Allen M8 X 20Screw Allen M8 X 20
-
43605353972 PlatePlate
-
44M36005 RivetRivet
-
45605450900 Middle PlateMiddle Plate
-
46M23183 Front ShockFront Shock
-
47M25067 SpringSpring
-
48M230076 Spring StopperSpring Stopper
-
49M230078 CamCam
-
50605350022 Upper Arm AssyUpper Arm Assy
-
51605252224 Lower ArmLower Arm
-
52605251768 RH Swing ArmRH Swing Arm
-
52605251767 LH Swing ArmLH Swing Arm
-
53506149100 CushionCushion
