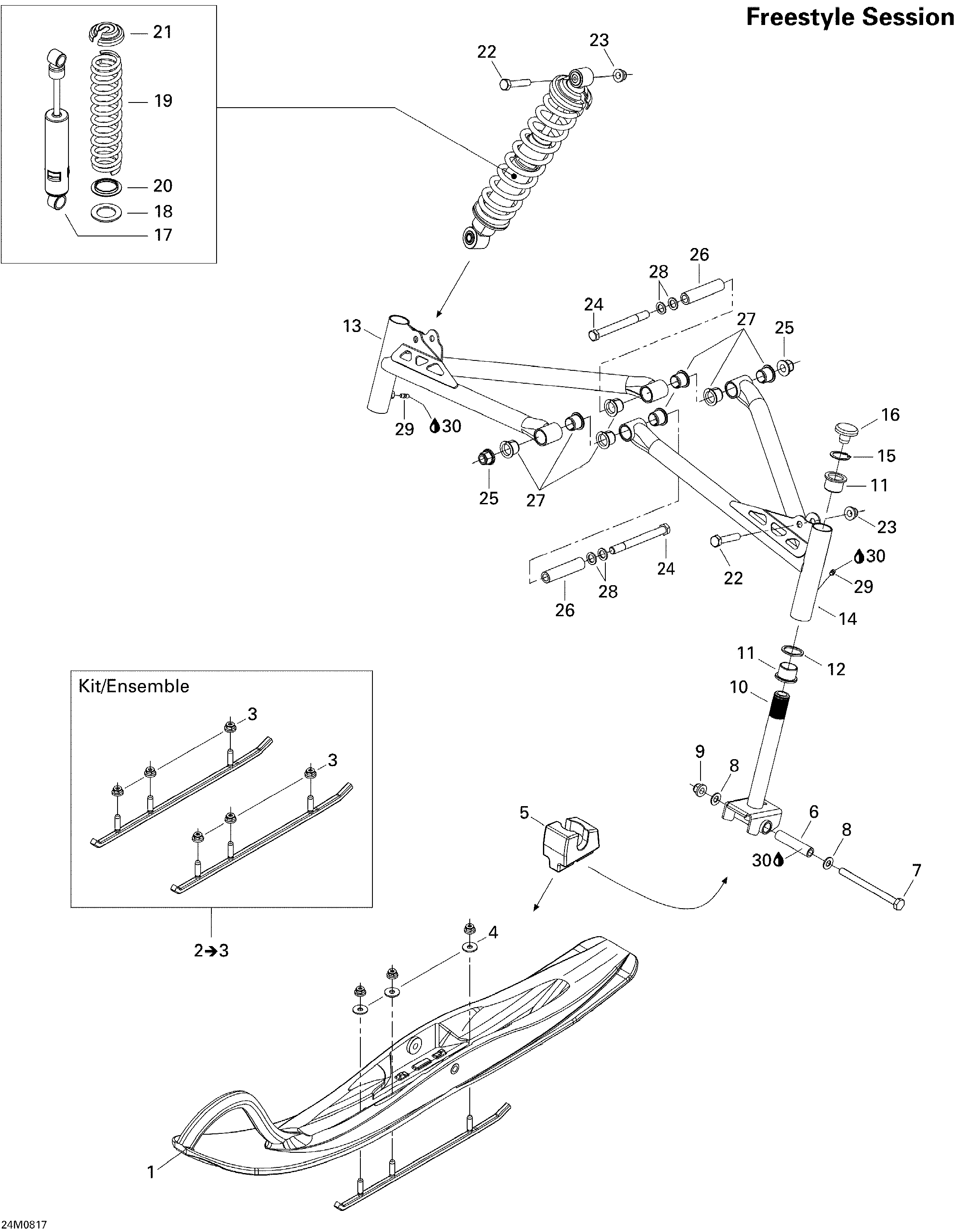

07- Front Suspension And Ski для BRP Ski-Doo Freestyle SESSION 300F - 2008
-
№АртикулНазвание
-
1505072019 Small ''Blow Mold'' SkiSmall ''Blow Mold'' Ski
-
2860512100 Carbide Runner Kit. Includes 2 to 3Carbide Runner Kit. Includes 2 to 3
-
3233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
4234082410 Flat Washer 8 mmFlat Washer 8 mm
-
5505070978 Ski StopperSki Stopper
-
6506133300 SpacerSpacer
-
7230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
8224002251 Flat WasherFlat Washer
-
9232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
10505072001 Ski LegSki Leg
-
11505070003 CushionCushion
-
12505070004 WasherWasher
-
13505072193 RH Lower ArmRH Lower Arm
-
14505072194 LH Lower ArmLH Lower Arm
-
15371910400 CirclipCirclip
-
16572091300 CapCap
-
17505071485 Front ShockFront Shock
-
18503184400 WasherWasher
-
19505071844 SpringSpring
-
20505071954 Spring GuideSpring Guide
-
21503140600 Spring StopperSpring Stopper
-
22207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
23233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
24230022044 Hex. Screw M12 X 120Hex. Screw M12 X 120
-
25233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
26505071366 BushingBushing
-
27505072094 BushingBushing
-
28503189276 WasherWasher
-
29408200700 Grease FittingGrease Fitting
-
30219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
