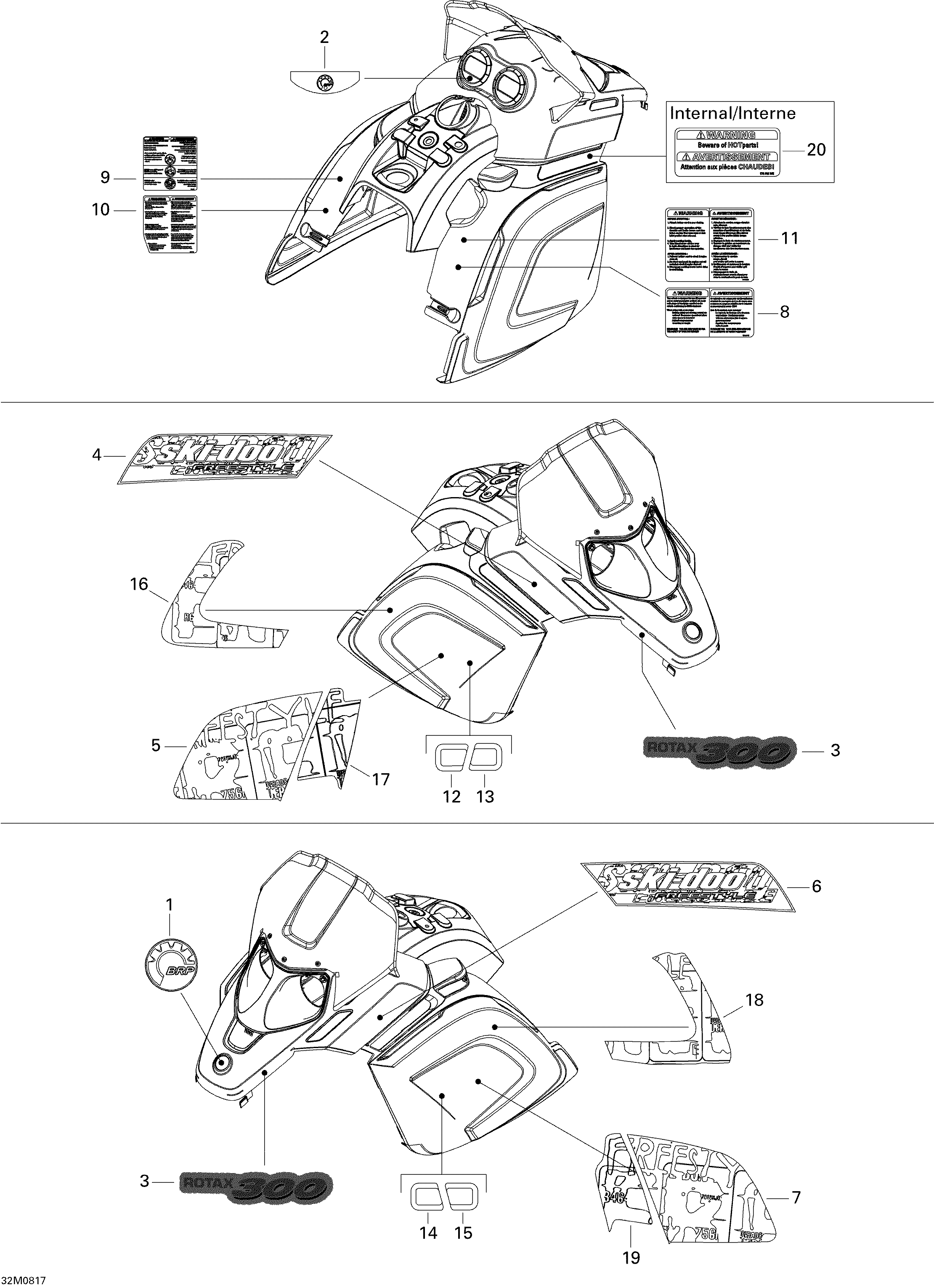

09- Decals для BRP Ski-Doo Freestyle SESSION 300F - 2008
-
№АртикулНазвание
-
1219902468 BRP Logo, 48 mmBRP Logo, 48 mm
-
2516002905 BRP Logo, 16 mmBRP Logo, 16 mm
-
3516003512 Hood Decal, Rotax 300Hood Decal, Rotax 300
-
4516003186 RH Upper Side DecalRH Upper Side Decal
-
5516003189 RH Side DecalRH Side Decal
-
6516003185 LH Upper Side DecalLH Upper Side Decal
-
7516003188 LH Side DecalLH Side Decal
-
8516003026 Security Label, Passenger NumberSecurity Label, Passenger Number
-
9516002908 Security Label, GeneralSecurity Label, General
-
10516003029 Security Label, FamiliarizationSecurity Label, Familiarization
-
11516003024 Security Label, StartingSecurity Label, Starting
-
12516001910 RH Protector DecalRH Protector Decal
-
13516001910 RH Protector DecalRH Protector Decal
-
14516001911 LH Protector DecalLH Protector Decal
-
15516001911 LH Protector DecalLH Protector Decal
-
16516003191 RH External Side DecalRH External Side Decal
-
17516003193 RH Front Side DecalRH Front Side Decal
-
18516003190 LH External Side DecalLH External Side Decal
-
19516003192 LH Front Side DecalLH Front Side Decal
-
20516002965 Security Label, Hot PartsSecurity Label, Hot Parts
