10- Electrical Harness, Hood для BRP Ski-Doo Freestyle SESSION 300F - 2008
-
№АртикулНазвание
-

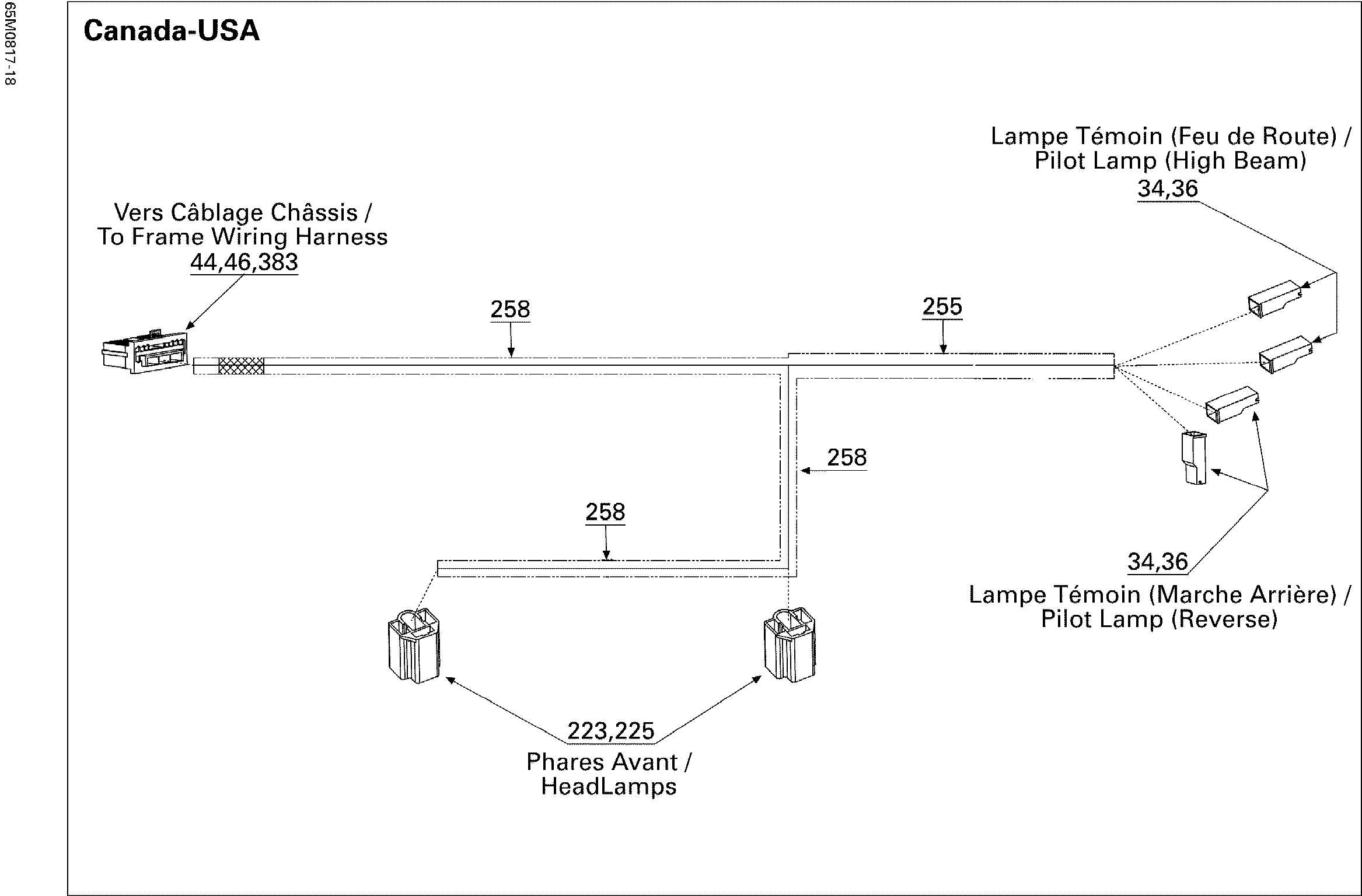

1515176291 Cab Wiring Harness. Includes 1 to 383Cab Wiring Harness. Includes 1 to 383
-
34409010100 Female TerminalFemale Terminal
-
36409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
44515175231 Female TerminalFemale Terminal
-
46515175282 Female TerminalFemale Terminal
-
223515175320 Female TerminalFemale Terminal
-
225409202700 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
255409901800 Tubing, 13 mmTubing, 13 mm
-
258415079900 Tubing, 10 mmTubing, 10 mm
-
383515175719 Female Terminal Housing, 11 CircuitsFemale Terminal Housing, 11 Circuits
