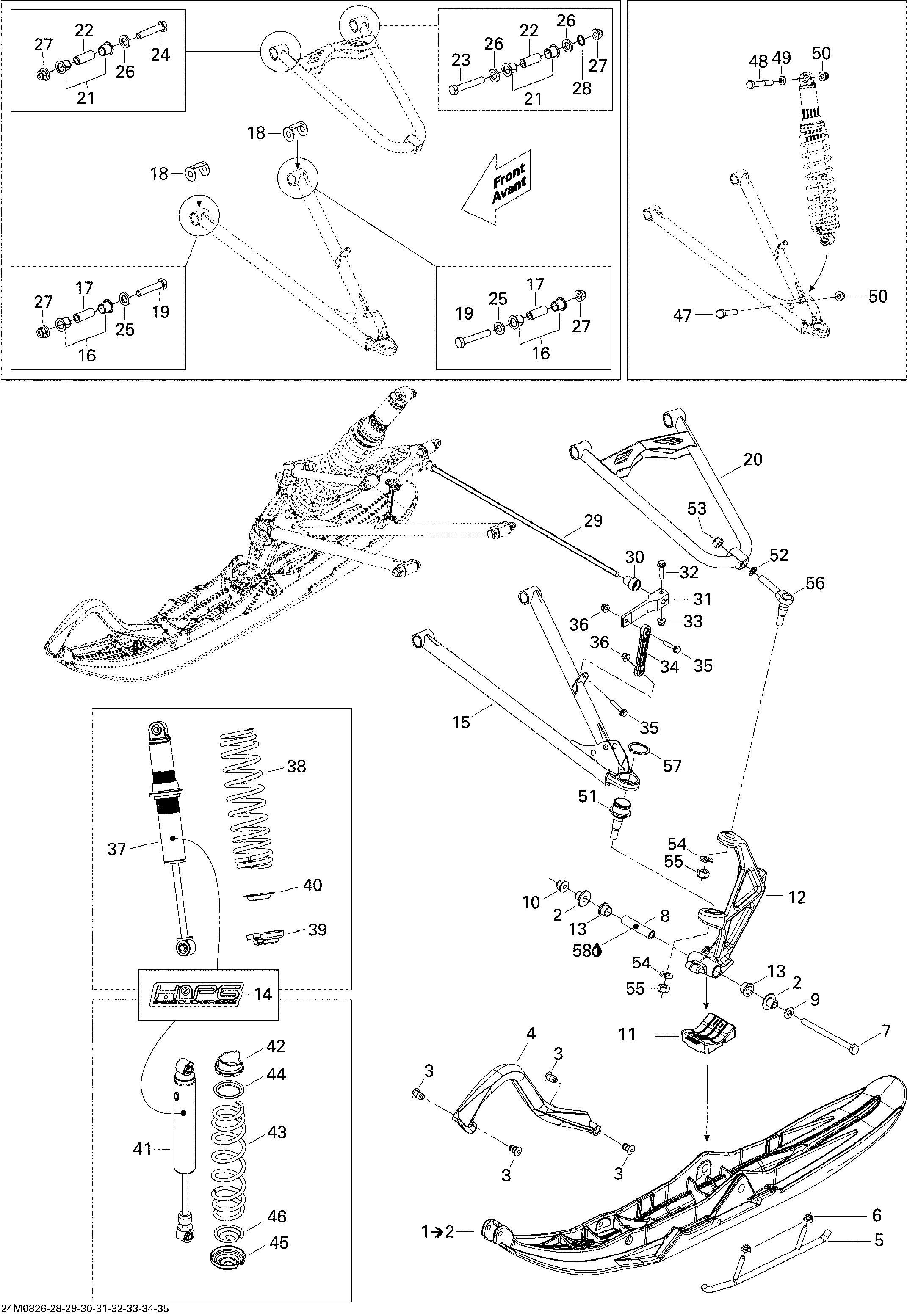

07- Front Suspension And Ski для BRP Ski-Doo GSX SPORT 500SS - 2008
-
№АртикулНазвание
-
1505072478 RH Pilot Ski 5.7, Black. Includes 1 to 2RH Pilot Ski 5.7, Black. Includes 1 to 2
-
1505072479 LH Pilot Ski 5.7, Black. Includes 1 to 2LH Pilot Ski 5.7, Black. Includes 1 to 2
-
2505071781 CushionCushion
-
3505071812 RetainerRetainer
-
4505070963 Handle, BlackHandle, Black
-
5505072428 Carbide RunnerCarbide Runner
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
8505072101 Ski AxleSki Axle
-
9732900049 WasherWasher
-
10732610084 Flanged Nut M10Flanged Nut M10
-
11505071779 Ski StopperSki Stopper
-
12505071827 LH Ski LegLH Ski Leg
-
12505071829 RH Ski LegRH Ski Leg
-
13505070954 CushionCushion
-
15505072369 RH Lower ArmRH Lower Arm
-
15505072368 LH Lower ArmLH Lower Arm
-
16505072208 BushingBushing
-
17505072393 BushingBushing
-
18505072279 Wear PlateWear Plate
-
19250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
20505072374 Upper ArmUpper Arm
-
21505072250 BushingBushing
-
22505072143 BushingBushing
-
23250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
24250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
25503189564 WasherWasher
-
26505072392 WasherWasher
-
27250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
28505072448 O-RingO-Ring
-
29505072059 StabilisatorStabilisator
-
30505072064 BushingBushing
-
31505072394 Stabilisator LeverStabilisator Lever
-
32207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
33233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34505072204 Double Ball Joint LinkDouble Ball Joint Link
-
35207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
36233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
41505072260 Front ShockFront Shock
-
42503183700 Cam 45°Cam 45°
-
43505072413 SpringSpring
-
44503187500 Spring GuideSpring Guide
-
45503191611 Spring StopperSpring Stopper
-
47207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
48207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
49503189564 WasherWasher
-
50233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
51505072251 Lower Ball JointLower Ball Joint
-
52503189276 WasherWasher
-
53250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
54234021410 Flat Washer 12 mmFlat Washer 12 mm
-
55250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
56505072257 Upper Ball JointUpper Ball Joint
-
57293370035 CirclipCirclip
-
58219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
