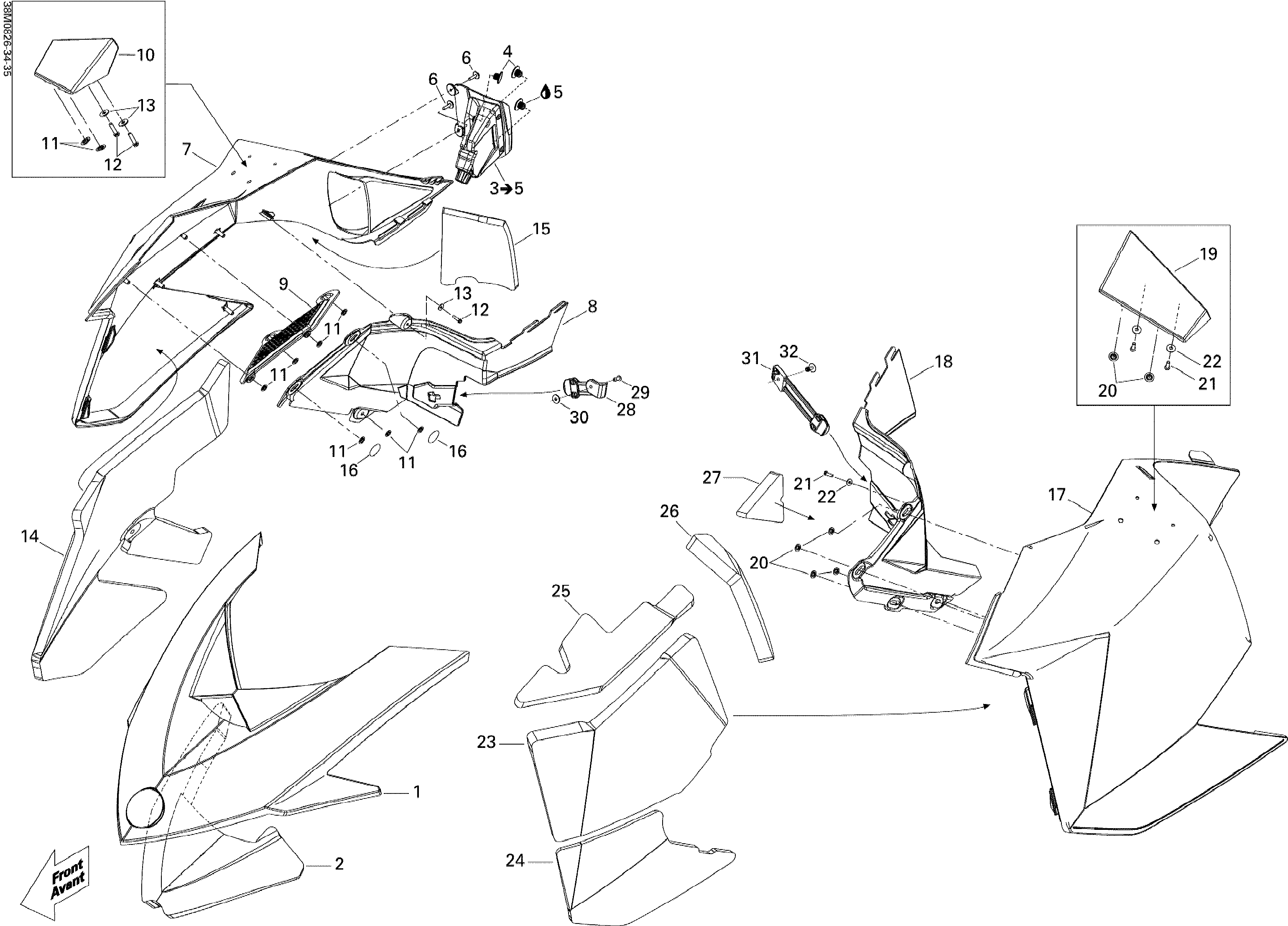

09- Hood для BRP Ski-Doo GSX SPORT 500SS - 2008
-
№АртикулНазвание
-
1517303918 Hood, BlackHood, Black
-
2517303990 Hood FoamHood Foam
-
3517303674 RH Console. Includes 3 to 5RH Console. Includes 3 to 5
-
4275500241 Cap, BlackCap, Black
-
5413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
6250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
7517303997 RH Panel, Volcano GrayRH Panel, Volcano Gray
-
8517303671 RH Moulding PanelRH Moulding Panel
-
9517303622 GrillGrill
-
10517303615 RH Air DeflectorRH Air Deflector
-
11732610072 Push NutPush Nut
-
12241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
13234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
14517304149 RH Panel Center FoamRH Panel Center Foam
-
15517303982 RH Panel Rear FoamRH Panel Rear Foam
-
16518325560 Adhesive PatchAdhesive Patch
-
17517303935 LH Panel, Volcano GrayLH Panel, Volcano Gray
-
18517303673 LH Moulding PanelLH Moulding Panel
-
19517303616 LH Air DeflectorLH Air Deflector
-
20732610072 Push NutPush Nut
-
21241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
22234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
23517303983 LH Panel Center FoamLH Panel Center Foam
-
24517303984 LH Panel Lower FoamLH Panel Lower Foam
-
25517303985 LH Panel Upper FoamLH Panel Upper Foam
-
26517303986 LH Panel Rear FoamLH Panel Rear Foam
-
27517303987 FoamFoam
-
28517303612 Panel LatchPanel Latch
-
29390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
30517124300 WasherWasher
-
31517303808 Panel LatchPanel Latch
-
32293150108 Pop Rivet 3/16''Pop Rivet 3/16''
