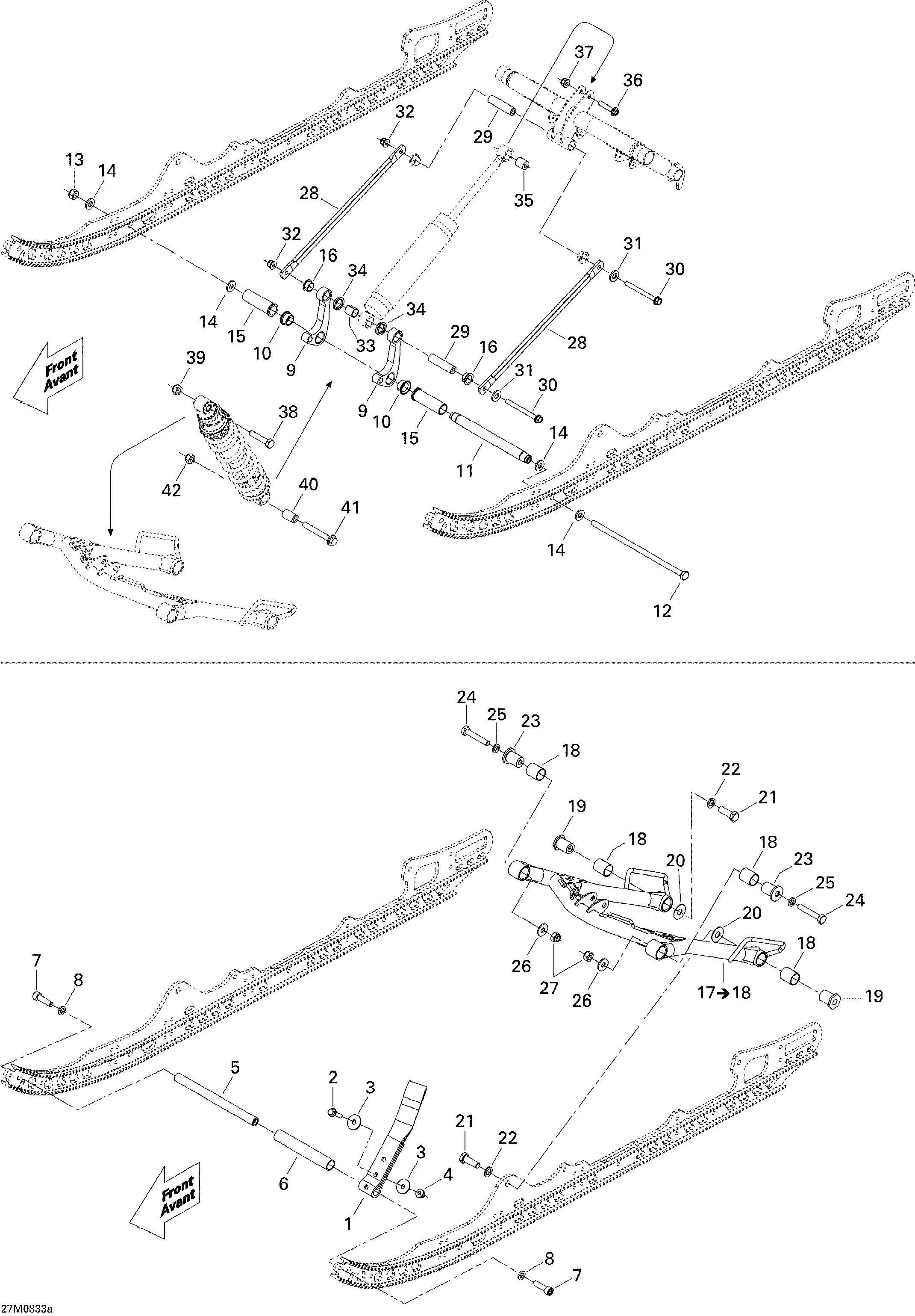

08- Front Arm Renegade для BRP Ski-Doo MX Z RENEGADE 800R - 2008
-
№АртикулНазвание
-
1503191365 Stopper StrapStopper Strap
-
2207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
3224081301 Flat WasherFlat Washer
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5503191260 Axle StrapAxle Strap
-
6503191448 SpacerSpacer
-
7205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
8503189564 WasherWasher
-
9503191161 Rocker ArmRocker Arm
-
10503191552 CushionCushion
-
11503191764 Center ShaftCenter Shaft
-
12503191352 Long BoltLong Bolt
-
13233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
14732900049 WasherWasher
-
15503191351 Center BushingCenter Bushing
-
16503191555 Swivel BushingSwivel Bushing
-
17503191579 Front Arm Ass'y. Includes 17 to 18Front Arm Ass'y. Includes 17 to 18
-
18503191554 BushingBushing
-
19503190727 Inferior AxleInferior Axle
-
20503190656 WasherWasher
-
21250000225 Hex. Screw M12 X 35, Scotch GripHex. Screw M12 X 35, Scotch Grip
-
22503189276 WasherWasher
-
23503190698 AxleAxle
-
24207006084 Hex. Screw M10 X 60Hex. Screw M10 X 60
-
25503189564 WasherWasher
-
26506151251 WasherWasher
-
27233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
28503191097 Throttle RodThrottle Rod
-
29503190643 Bar AxleBar Axle
-
30207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
31503189157 WasherWasher
-
32233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
33503191553 BushingBushing
-
34503190694 Plastic SpacerPlastic Spacer
-
35414936000 CushionCushion
-
36207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
37233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
38207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
39233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
40503190604 Central Shock AxleCentral Shock Axle
-
41207607544 Hex. Flanged Screw M10 X 75Hex. Flanged Screw M10 X 75
-
42233601416 Elastic Locking Nut M10Elastic Locking Nut M10
